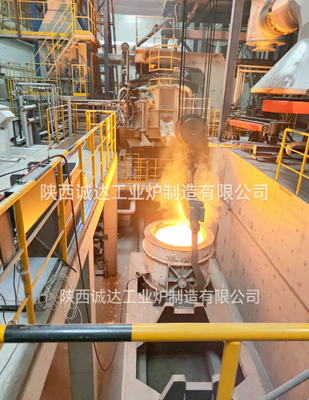

500kW Plasma DC Arc Furnace Copper Cathode Smelting Electric Melting Equipment for 5 Ton Capacity 1500°C
| Place of Origin | Sichuan, China |
|---|---|
| Brand Name | WNRLN |
| Certification | ISO 9001:2015, CE |
| Model Number | WN-DCAF-500C |
| Minimum Order Quantity | 1 Set |
| Price | USD 150,000 - 500,000 / Set |
| Packaging Details | Export-grade wooden crate with moisture-proof wrapping, reinforced steel frame for ocean freight |
| Delivery Time | 60-120 working days after deposit |
| Payment Terms | T/T,L/C |
| Supply Ability | 10 Sets per Year |
Product Details
| Power Rating | 500 KW | Melting Temperature | 1500°C |
|---|---|---|---|
| Capacity | 5 Ton Per Batch | Electrode Type | High-Purity Graphite |
| Arc Type | DC Plasma | Cooling System | Closed-Loop Water Cooling |
| Voltage | 380V / 3-Phase / 50Hz | Electrode Consumption | ≤ 3.5 Kg Per Ton |
| Furnace Lining | Magnesia-Carbon Refractory Brick | Control System | PLC Automatic With Touchscreen HMI |
| Highlight | 500kW plasma DC arc furnace,copper cathode smelting equipment,5 ton capacity electric melting furnace |
||
Product Description
500kW Plasma DC Arc Furnace for Copper Cathode Smelting
The WN-DCAF-500C is a high-performance plasma DC arc furnace engineered specifically for copper cathode smelting and nonferrous metal refining. Delivering 500 kW of power with a 5-ton batch capacity, this furnace combines advanced graphite electrode technology with a closed-loop water cooling system to achieve consistent melting temperatures up to 1500°C. Designed for industrial smelting operations, the unit delivers exceptional thermal efficiency, low electrode consumption, and reliable performance in demanding production environments.
Key Advantages
⚡ Plasma DC Arc Technology
Stable DC plasma arc ensures uniform heat distribution and energy efficiency, reducing power consumption by up to 15% compared to conventional AC furnaces.
🟢 Low Electrode Consumption
High-purity graphite electrodes with consumption rate ≤ 3.5 kg per ton, minimizing operational costs and downtime for electrode replacement.
🔧 PLC Automatic Control
Integrated PLC system with touchscreen HMI enables precise parameter adjustment, real-time monitoring, and one-touch operation modes.
🔄 Closed-Loop Water Cooling
Efficient water cooling system protects furnace shell and electrodes, extending service life and ensuring continuous 24/7 operation capability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Power Rating | 500 kW |
| Melting Temperature | Up to 1500°C |
| Batch Capacity | 5 Ton |
| Electrode Type | High-Purity Graphite |
| Voltage | 380V / 3-Phase / 50Hz |
| Electrode Consumption | ≤ 3.5 kg / Ton |
| Furnace Lining | Magnesia-Carbon Refractory Brick |
| Control System | PLC with Touchscreen HMI |
Applications
- Copper cathode / blister copper smelting and refining
- Nonferrous metal scrap recycling and re-melting
- Brass and bronze alloy production
- Industrial slag treatment and metal recovery
- Precious metal (gold, silver) recovery from smelting byproducts
Custom Engineering Available: We offer tailored configurations for power rating (200kW - 2000kW), batch capacity, electrode type, and automation level. Contact our engineering team to discuss your specific smelting requirements.
