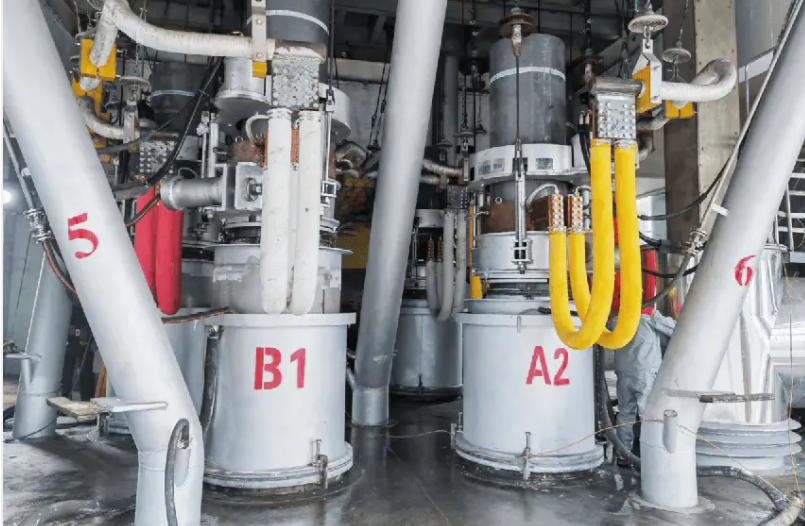

Yellow phosphorus smelting furnace
| Place of Origin | China |
|---|---|
| Brand Name | Shaanxi Chengda |
| Certification | ISO 9001 |
| Model Number | Negotiate based on equipment processing capacity |
| Minimum Order Quantity | 1 unit |
| Price | The price will be negotiated based on the technical requirements and supply scope of Party A |
| Packaging Details | Discuss according to the specific requirements of Party A |
| Delivery Time | 2 months |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | Complete production supply chain, supply on time, and meet quality standards |
Product Details
| Operation Mode | Continuous | Temperaturerange | Up To 1600°C |
|---|---|---|---|
| Leaving Factory Standard | Qualified Product | Material | High-grade Steel And Refractory Materials |
| Safetyfeatures | Overheat Protection, Emergency Stop, Gas Leak Detection | Dimensions | Customizable Based On Capacity |
| Capacity | 1-50 Tons Per Batch | Productname | Nonferrous Metal Smelting Equipment |
| Installation | On-site Installation And Commissioning Available | Weight | Depends On Model, Typically 5-20 Tons |
| Highlight | yellow phosphorus smelting furnace,nonferrous metal smelting equipment,phosphorus smelting furnace with warranty |
||
Product Description
1. Product Overview
The Yellow Phosphorus Smelting Furnace is a professional fully-sealed submerged arc furnace tailored for thermal-process industrial yellow phosphorus production. As core equipment for chemical phosphorus smelting, it adopts a closed high-temperature reduction smelting process. Uniformly proportioned phosphate rock, silica flux and coke reductant are fed into the furnace, completing a complete carbothermal reduction reaction at 1300°C–1500°C. The generated phosphorus vapor is collected, condensed and purified to form high-purity industrial yellow phosphorus, while by-products such as calcium silicate slag and ferrophosphorus are discharged regularly. Equipped with a precise micro-negative pressure control system and fully enclosed furnace structure, this furnace completely avoids air ingress and phosphorus spontaneous combustion risks, ensuring safe and continuous production. It supports full customization of furnace capacity and process parameters, and is widely applicable for new construction and upgrading of large-scale yellow phosphorus production lines worldwide.
2. Core Advantages
-
Fully Sealed Design & Ultra-high Safety: Integral airtight furnace roof with explosion-proof structure and automatic micro-negative pressure adjustment system. It effectively isolates external air, prevents phosphorus vapor oxidation and spontaneous combustion accidents, stabilizes internal furnace pressure, and provides safe and stable conditions for tail gas collection and recycling.
-
Uniform Temperature Field & High Phosphorus Recovery Rate: Optimized hearth structure and electrode layout form a balanced and stable high-temperature field, ensuring sufficient and thorough reduction reaction of raw materials. It reduces residual phosphorus in slag, with the phosphorus recovery rate stably reaching above 88%, effectively lowering raw material consumption and improving overall production economic benefits.
-
Remarkable Energy Saving & Stable Continuous Operation: Adopts high-efficiency heat-preservation and heat-insulation lining to minimize invalid heat loss. Matched with PLC intelligent electrode adjustment system, it maintains stable submerged arc operation state for a long time. Compared with traditional old-fashioned phosphorus furnaces, it features lower unit power consumption and higher operation stability, supporting 24-hour uninterrupted industrial production.
-
Complete Tail Gas Recycling & Secondary Energy Utilization: Standard centralized sealed gas outlet ensures high-purity collection of furnace gas (main component: CO). The recycled tail gas can be directly used for on-site power generation, heating or raw material synthesis, realizing waste energy recycling, reducing factory energy consumption and carbon emissions, and meeting green production requirements.
-
Corrosion Resistance & Long Service Life: The furnace lining adopts special fluorine-phosphorus corrosion-resistant and high-temperature-resistant composite refractory materials, which resists long-term erosion of high-temperature slag and corrosive flue gas. The optimized circulating water cooling structure slows down lining aging and damage, prolongs furnace service life and reduces frequent maintenance costs.
-
Intelligent Control & Low Labor Cost: Equipped with independent hydraulic electrode lifting and pressure regulating system, realizing real-time monitoring and automatic adjustment of furnace pressure, temperature, current and voltage. It supports automatic feeding and interlock protection for tapping, with fewer manual operation links, low failure rate and higher production safety.
3. Wide Application Scope
This professional yellow phosphorus smelting furnace is exclusively used for large-scale industrial production of elemental yellow phosphorus. The finished yellow phosphorus is widely used in fine chemical industry, pesticide manufacturing, flame retardant production, phosphoric acid and phosphate salt processing, food additive and pharmaceutical raw material production. It is suitable for professional phosphorus chemical enterprises with large-scale, standardized and environmentally friendly production requirements, and can adapt to smelting and production of different grades of phosphate ore raw materials.
4. Complete Technical Parameters
|
Item
|
Technical Specifications
|
|
Rated Transformer Capacity
|
8000KVA - 35000KVA (customized large capacity available)
|
|
Furnace Type
|
Fully Sealed Special Submerged Arc Furnace for Yellow Phosphorus
|
|
Electrode Configuration
|
3-electrode AC symmetrical layout
|
|
Reaction Temperature
|
1300°C - 1500°C (intelligent adjustable)
|
|
Secondary Voltage/Current
|
160V - 280V / 35000A - 95000A
|
|
Electrode Type
|
Self-baking electrode (customizable diameter)
|
|
Phosphorus Recovery Rate
|
≥88%
|
|
Furnace Pressure Control
|
5-20mmH₂O micro negative pressure automatic control
|
|
Control System
|
PLC full intelligent automatic control, real-time data & remote monitoring
|
|
Cooling Mode
|
Closed anti-corrosion circulating water cooling system
|
|
Applicable Raw Materials
|
Phosphate rock, silica stone, metallurgical coke
|
|
Main Output Products
|
Industrial yellow phosphorus, calcium silicate slag, ferrophosphorus, CO furnace gas
|
|
Operation Mode
|
24-hour continuous cyclic smelting production
|
5. Standard Configuration
-
Heavy-duty fully sealed furnace body + special fluorine-phosphorus corrosion-resistant refractory lining
-
3-electrode independent hydraulic lifting, clamping and pressure regulating system
-
Low-loss short network system & high-temperature resistant water-cooled cable assembly
-
Special phosphorus smelting transformer & complete high-voltage power distribution system
-
Intelligent PLC control cabinet + furnace pressure/temperature real-time monitoring & safety interlock device
-
Airtight furnace roof & centralized furnace gas collection pipeline, reserved condensation and dedusting interface
-
Full-set closed circulating water cooling system & explosion-proof safety protection devices
6. After-sales & Service Guarantee
-
Customized Turnkey Solution: Provide exclusive furnace design, parameter matching and plant layout planning according to customer annual output, phosphate ore characteristics and local environmental protection standards.
-
Global On-site Technical Service: Offer overseas door-to-door installation, furnace baking, commissioning, tapping test and professional safety operation training for workers.
-
Professional Warranty & Technical Support: Core equipment enjoys 1-year full warranty and lifelong technical consultation. Provide targeted phosphorus smelting process optimization to improve recovery rate and reduce power consumption.
-
Efficient Global Spare Parts Supply: Stable global spare parts supply channels, fast delivery, effectively avoiding production shutdown losses and ensuring long-term stable furnace operation.
