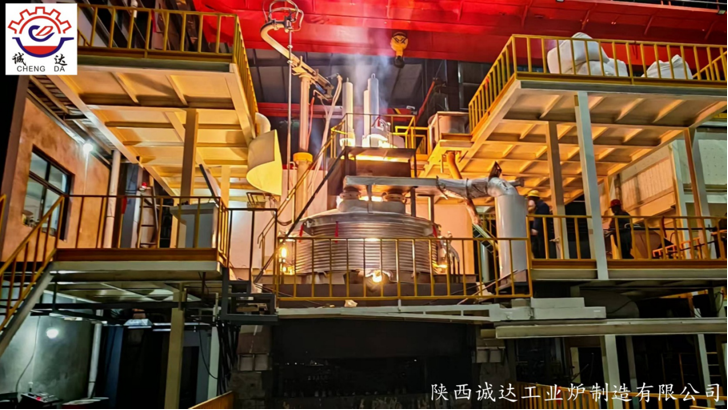

Zirconia Corundum Furnace
| Place of Origin | China |
|---|---|
| Brand Name | Shaanxi Chengda |
| Certification | ISO 9001 |
| Model Number | Negotiate based on equipment processing capacity |
| Minimum Order Quantity | 1 unit |
| Price | The price will be negotiated based on the technical requirements and supply scope of Party A |
| Packaging Details | Discuss according to the specific requirements of Party A |
| Delivery Time | 2 months |
| Supply Ability | Complete production supply chain, supply on time, and meet quality standards |
Product Details
| Subcategory | Ferroalloy Equipment | Temperature Range | 1000-1800℃ |
|---|---|---|---|
| Maintenance | Easy To Maintain And Repair | Controlsystem | Automated PLC Control With Real-time Monitoring |
| Monitoring | Real-time | Type | White Corundum Furnace |
| Installationtype | Stationary / Fixed Installation | Voltage | 380 |
| Warranty | 1 Year | ||
| Highlight | zirconia corundum smelting furnace,high-temperature zirconia furnace,corundum furnace for ferroalloy |
||
Product Description
Equipment Introduction & Technical Parameters
1. Equipment Introduction
The zirconia corundum furnace is essentially a three-phase electric arc furnace. It melts alumina and zirconia at a temperature above 2000℃ to produce fused zirconia corundum (AZS) refractory materials and abrasives. Common model: HY2.8-4000KVA, with a melting capacity of 3–5t and furnace shell inner diameter of 2200–2800mm.
Application Purpose
Used for smelting fused zirconia corundum, fused alumina, mullite and other abrasives and refractory materials. The finished products are widely applied in glass kilns, metallurgical nozzles, wear-resistant components, etc.
Structural Features
Fixed water-cooled furnace roof, top feeding and top oxygen blowing design; upper and lower furnace body structure. The outer wall of the lower furnace shell adopts spray cooling, and the furnace body tilts hydraulically for discharging.
Main Components
- Furnace Body: Welded steel plate shell with discharge spout and external spray cooling system.
- Water-Cooled Furnace Roof: Plate/tube type water cooling, equipped with electrode holes, feeding holes and oxygen blowing holes.
- Electrode Lifting System: Driven by frequency conversion/hydraulic pressure, PLC automatic adjustment, fast response and stable control.
- Short Network System: Water-cooled cables + copper-steel composite cross arm, low and balanced three-phase impedance.
- Hydraulic System: Working pressure 12MPa, controlling furnace body tilting and electrode clamping.
- Water Cooling System: Forced cooling for furnace body, furnace roof, cross arm and cables, with pressure and temperature alarm function.
Working Principle
Three graphite electrodes are electrified to generate electric arcs. The ultra-high arc temperature (over 2000℃) melts the mixed raw materials of zircon sand and alumina. The molten liquid is poured, cooled and crushed to obtain finished zirconia corundum products.
2. Main Technical Parameters
| Parameter | Specification |
|---|---|
| Rated Melting Capacity | 3–5t |
| Furnace Shell Inner Diameter | 2200/2500/2800mm |
| Electrode Lifting Speed | Rising: 2.0m/min; Descending: 1.5m/min |
| Transformer Rated Capacity | 4000KVA |
| Primary Voltage | 10KV |
| Secondary Voltage | 110–220V (No-load electric regulation) |
| Cooling Mode | Forced oil-water cooling + spray water cooling |
| Overload Capacity | 20% |
| Maximum Discharging Tilt Angle | Forward 45° |
| Working Temperature | 2000–2200℃ |
| Power Supply | 3-phase, 50Hz, 10/35KV |
3. Reference Index of Zirconia Corundum Products
| Composition & Performance | High Zirconium (40% ZrO₂) | Medium Zirconium (25% ZrO₂) |
|---|---|---|
| Al₂O₃ Content | 50–60% | 68–72% |
| ZrO₂ Content | 38–44% | 24–30% |
| Melting Point | ≈1850℃ | ≈1850℃ |
| Bulk Density | ≥4.0g/cm³ | ≥3.6g/cm³ |
| Mohs Hardness | ≥9.0 | ≥9.0 |
