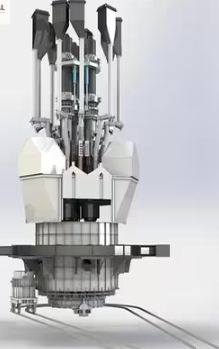

Ferromanganese furnace Energy-saving Ferro Manganese Ore Smelting Smelting Furnace
| Place of Origin | China |
|---|---|
| Brand Name | Shaanxi Chengda |
| Certification | ISO 9001 |
| Model Number | Negotiate based on equipment processing capacity |
| Minimum Order Quantity | 1 unit |
| Price | The price will be negotiated based on the technical requirements and supply scope of Party A |
| Packaging Details | Discuss according to the specific requirements of Party A |
| Delivery Time | 2 months |
| Payment Terms | L/C,T/T,Western Union,D/A |
| Supply Ability | Complete production supply chain, supply on time, and meet quality standards |
Product Details
| Frequency | 50±0.5Hz | Maintenance | Designed For Easy Maintenance With Replaceable Parts |
|---|---|---|---|
| Dimensions | Customizable Based On Production Capacity | Operatingtemperature | Up To 1600°C |
| Automationlevel | Semi-automatic To Fully Automatic Control Systems | Parameter Of Apparatus | Customizable |
| Coolingsystem | Water-cooled Panels And Air Cooling System | Furnace Structure | Vertical |
| Energyconsumption | Approximately 400-600 KWh Per Ton Of Alloy | ||
| Highlight | energy-saving ferro manganese smelting furnace,ferroalloy smelting furnace with ore,ferromanganese ore smelting equipment |
||
Product Description
Energy-saving Submerged Arc Furnace for Ferromanganese Ore Smelting
1. Product Overview
This energy-saving submerged arc furnace is dedicated equipment for smelting manganese ore to produce various ferromanganese alloys, covering multiple power specifications to match small, medium and large manganese metallurgy plants.
Compared with traditional old-type manganese furnaces, this series optimizes furnace lining structure, short net conductive system and closed flue gas recovery system, achieving obvious power saving effect. It can process manganese oxide ore, manganese carbonate ore, mixed manganese ore, output high-carbon ferromanganese, medium-carbon ferromanganese, low-carbon ferromanganese and silicomanganese alloy by adjusting burden formula.
The whole line adopts automatic batching, hydraulic electrode lifting and PLC centralized control, equipped with complete dust removal and waste heat utilization facilities, complying with global environmental protection standards. Turnkey service including design, manufacturing, installation, commissioning and technical training is available.
2. Working Principle
Raw materials: manganese ore, coke/reducing coal, lime flux, silica.
Three self-baking electrodes are deeply buried in furnace burden. Large current passes through electrodes and charge to generate submerged arc heat and resistance heat, forming high-temperature reduction zone at 1300–1650℃ inside the furnace.
Manganese oxides in manganese ore are reduced into molten ferromanganese under carbothermic high-temperature reaction. Gangue minerals react with lime to form low-melting slag floating on alloy liquid. Separate tapping of alloy and slag, then cooling, crushing and screening to obtain standard ferromanganese finished ingots.
3. Complete Equipment Configuration
3.1 Furnace Main Body (Energy-saving Optimized)
- Water-cooled integral furnace shell, thickened carbon brick lining, heat preservation layer to reduce heat loss
- Fully closed sealed furnace cover, independent alloy tapping channel and slag outlet
- Operation platform, tapping auxiliary machinery
3.2 Power Supply & Energy-saving Short Net System
- Special low-loss smelting transformer, customized according to furnace capacity
- Optimized copper short net with low resistance, greatly cutting reactive power consumption
- Reactive power compensation & harmonic filtering device to improve power factor and save electricity
- High & low voltage distribution cabinet
3.3 Electrode Hydraulic Control System
- Hydraulic lifting cylinder, high-conductivity copper electrode clamps, pressure ring
- Automatic constant current adjustment, stable arc length, avoid power fluctuation
- Automatic electrode paste feeding device
3.4 Automatic Batching & Sealed Feeding System
- Manganese ore, coke, lime silo group, high-precision automatic weighing machine
- Closed belt conveyor, top sealed feeding chute, dust suppression design
Reduce raw material waste and dust overflow.
3.5 Energy Recycling & Environmental Protection System
- Closed circulation cooling water station
- Bag dust removal system for furnace flue gas
- Flue gas waste heat recovery device: recover heat for ore drying or power generation, further cut production energy cost
- Desulfurization & denitrification unit
3.6 Intelligent PLC Central Control Cabinet
Real-time monitoring of furnace current, voltage, temperature, furnace pressure, flue gas flow; automatic overload protection, abnormal alarm, remote parameter adjustment, reduce manual operation.
4. Core Energy-saving & Product Advantages
- Optimized low-resistance short net + power compensation unit, unit power consumption reduced by 8%–14% vs conventional ferromanganese furnaces.
- Heat-insulated thick furnace lining + fully closed furnace cover, lower radiant heat loss, higher thermal utilization efficiency.
- Recycle flue gas waste heat for ore drying, no extra fuel needed for raw material pretreatment.
- Strong raw material adaptability, suitable for various types of domestic and imported manganese ore.
- High manganese recovery rate ≥92%, stable alloy chemical composition, low impurity content (P, S).
- High automation degree, less workers, lower labor cost; 24-hour continuous stable smelting.
- Low dust emission, full flue gas treatment, meet international industrial environmental standards.
5. Finished Ferromanganese Products Introduction
Main Alloy Grades
- High Carbon Ferromanganese (HC FeMn): Mn 75%–80%, C 6%–8%
- Medium Carbon Ferromanganese (MC FeMn): Mn 75%–85%, C 1.0%–2.0%
- Low Carbon Ferromanganese (LC FeMn): Mn 80%–90%, C ≤0.7%
- Silicomanganese Alloy: Mn 65%–70%, Si 16%–22%
Raw Materials for Smelting
Manganese ore, metallurgical coke, limestone flux, silica sand.
Wide Application of Ferromanganese
- Main deoxidizer and alloy additive in steelmaking industry: eliminate oxygen in molten steel, improve steel strength, toughness and wear resistance.
- Key raw material for carbon steel, alloy structural steel, ship plate steel, construction steel, pipeline steel.
- Used in casting industry to refine grain, reduce casting defects and improve casting mechanical performance.
- Silicomanganese replaces separate use of ferromanganese and ferrosilicon, lower comprehensive steelmaking cost.
6. Reference Technical Parameters
| Item | Technical Index |
|---|---|
| Smelting temperature | 1300–1650℃ |
| Manganese recovery rate | ≥92% |
| Power saving range | 8%–14% vs traditional furnaces |
| Unit power consumption of HC ferromanganese | 3400–4000 kWh/t |
| Operation mode | Continuous smelting, intermittent tapping |
7. Complete Production Process
Manganese Ore Crushing & Drying → Automatic Weighing & Batching Mixing → Sealed Top Charging → Submerged Arc High-temperature Reduction → Ferromanganese & Slag Tapping → Slag Skimming in Ladle → Alloy Casting & Cooling → Crushing & Screening → Finished Ferromanganese Storage & Shipment
Short Brochure Version (For Website / Catalog)
Energy-saving Ferromanganese Ore Smelting Submerged Arc Furnace
Our energy-saving submerged arc furnace is specially designed for manganese ore smelting to produce high/medium/low carbon ferromanganese and silicomanganese alloy.
With optimized low-loss short net, heat preservation furnace lining, flue gas waste heat recovery and power compensation system, the furnace realizes remarkable energy consumption reduction. Equipped with full-automatic batching, hydraulic electrode adjustment, PLC intelligent monitoring and complete environmental dedusting equipment.
It features high manganese recovery, stable alloy quality, low operation cost and eco-friendly emission. Widely applied in manganese ferroalloy plants globally. We provide full turnkey solutions including engineering design, equipment manufacturing, on-site installation guidance, production commissioning and long-term technical support.
