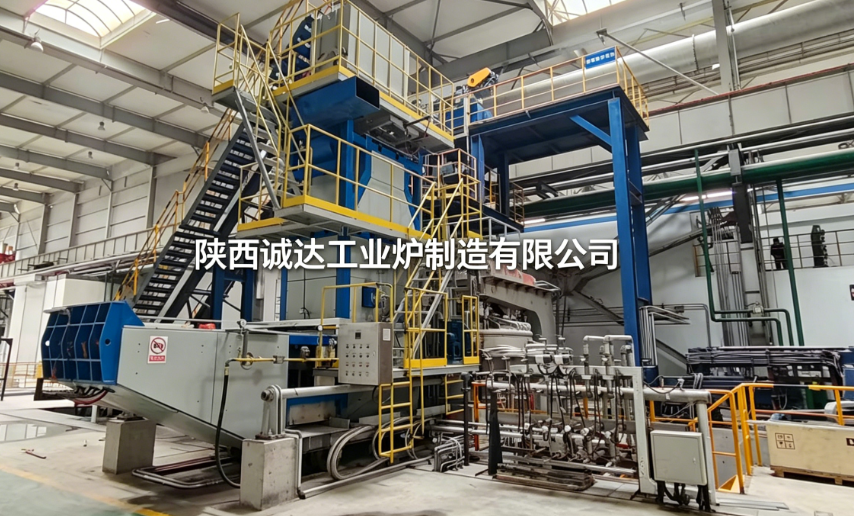

DC Plasma Electric Arc Furnace Equipment Introduction
| Place of Origin | China |
|---|---|
| Brand Name | Shaanxi Chengda |
| Certification | ISO 9001 |
| Model Number | Negotiate based on equipment processing capacity |
| Minimum Order Quantity | 1 unit |
| Price | The price will be negotiated based on the technical requirements and supply scope of Party A |
| Packaging Details | Discuss according to the specific requirements of Party A |
| Delivery Time | 2 months |
| Payment Terms | L/C,Western Union,T/T |
| Supply Ability | Complete production supply chain, supply on time, and meet quality standards |
Product Details
| Highlight | DC plasma arc furnace,electric arc smelting equipment,ferroalloy smelting furnace |
||
|---|---|---|---|
Product Description
DC Plasma Electric Arc Furnace (DC PAF)
1. Core Principle & Equipment Structure
1.1 Working Principle
The equipment adopts DC transferred arc technology:
- Arc ignition: A DC voltage is applied between the cerium-tungsten electrode of the plasma torch and the water-cooled copper nozzle. Argon gas is introduced, and a high-frequency igniter breaks down the gas to form a non-transferred arc (pilot arc).
- Transfer: The torch is lowered to connect the arc with the bottom anode; the circuit switches to form a transferred arc (main arc) as the primary heat source.
- Melting: The plasma arc temperature reaches 10,000–20,000 ℃, rapidly melting the charge. Inert gas can be used to control the atmosphere for non-oxidation or reduction smelting.
1.2 Main Components
- Plasma torch: Water-cooled cerium-tungsten electrode, copper nozzle, gas circuit
- Furnace system: Water-cooled furnace lid, refractory lining, bottom anode, electromagnetic stirring coil
- Power supply system: DC rectifier power supply, reactor, control system
- Auxiliary system: Gas supply, water cooling, hydraulic lifting
2. Key Technical Parameters
2.1 Electrical & Power Parameters
- Rated power: 500 kVA – 10 MVA+
- Input voltage: 380V / 690V / 6kV / 10kV
- Operating voltage: 500–800 V (DC)
- Operating current: Hundreds to thousands A
- Power factor: 0.70–0.86
2.2 Process & Atmosphere Parameters
- Arc core temperature: Up to 20,000 ℃
- Working gas: Argon, nitrogen, hydrogen
- Gas flow rate: 10–100 Nm³/h
- Vacuum degree (optional): 6.7×10⁻³ Pa
2.3 Cooling & Operation Parameters
- Cooling water flow: 50–160 m³/h
- Cooling water pressure: 2–4 bar
- Electrode lifting stroke: ≤ 150 mm
- Lining campaign life: ≥ 150 heats
3. Core Advantages
- Ultra-high temperature & high efficiency: Fast melting, low energy consumption
- Controllable atmosphere, no carburization: Suitable for ultra-low carbon steel
- High alloy recovery: ≥ 96%
- Grid-friendly: Stable arc, low harmonics, low grid impact
4. Typical Applications
- Special steel: stainless steel, bearing steel, superalloys
- Refractory metals: W, Mo, Ta, Nb, Zr, Ti
- Metal recycling & industrial waste treatment
- New materials: ceramics, composite materials
