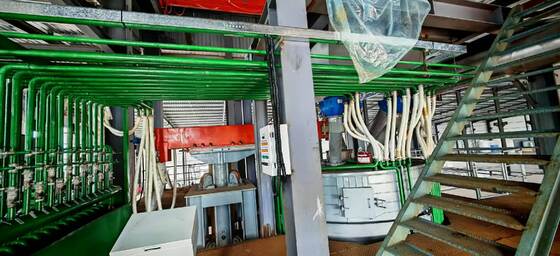

3200KVA DC Electric Arc Furnace Thyristor Rectifier Unit for Silicomanganese Alloy Smelting
| Place of Origin | Shaanxi, China |
|---|---|
| Brand Name | Shaanxi Chengda |
| Certification | ISO 9001:2015 |
| Model Number | CD-DC-3200 |
| Minimum Order Quantity | 1 Set |
| Price | USD 240000-480000 / Set |
| Packaging Details | Furnace shell in seaworthy steel frame, rectifier and PLC cabinets in vacuum bag with desiccant, electrode column and busbar in export crates |
| Delivery Time | 2~3 months after drawing approval |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union, |
| Supply Ability | 50 sets per year, complete production chain with on time delivery |
Product Details
| Rated Transformer Capacity | 3200 KVA | Rated DC Voltage | 260-440 V |
|---|---|---|---|
| Rated DC Current | 9-12 KA | Graphite Electrode Diameter | 300 Mm |
| Hearth Anode Diameter | 500 Mm | Furnace Shell Inside Diameter | 2700 Mm |
| Bath Depth | 1050 Mm | Tap-to-Tap Time | 32-45 Min |
| Annual Output | 9000-14000 T Silicomanganese | Combined Recovery | 85 Percent And Above |
| Electrode Consumption | 8 Kg/t Alloy Maximum | Rectifier Type | 6-pulse Thyristor Rectifier |
| Highlight | 3200KVA thyristor rectifier unit,DC arc furnace rectifier silicomanganese,ferroalloy smelting rectifier equipment |
||
Product Description
3200KVA DC Electric Arc Furnace for Silicomanganese Alloy Smelting
A 3200KVA direct current furnace built for silicomanganese and manganese alloy smelting in the 9000 to 14000 tonne per year range. The single electrode DC arc gives a steady, deep heat that suits the strongly reducing conditions silicomanganese needs, and the quiet arc keeps the surrounding manganese and silicon reduction zones intact.
Core Selling Points
- Stable arc power for a narrow process window. Thyristor regulation holds DC current within plus or minus 1 percent, so reduction conditions do not drift as the burden descends.
- Higher silicon and manganese yield. Deep bath coverage plus electromagnetic circulation supports combined recovery of 85 percent and above on standard manganese ore blends.
- Half the graphite of an AC unit. One 300mm electrode brings consumption near 8 kg per tonne of alloy and removes two electrode columns from the maintenance routine.
- Grid friendly at mid capacity. Flicker reduction above 50 percent and low harmonic emission let the unit share a 10kV or 35kV feeder with plant loads.
- Fast changeover between grades. The small shell and tilting design let the plant switch between silicomanganese and ferromanganese with minimal transition scrap.
Complete Unit
- Furnace shell with water-cooled panels, magnesia hearth and conductive anode
- Single graphite electrode, 300 mm, hydraulic lift with servo valve control
- Rectifier transformer, thyristor rectifier cabinet, DC busbar and water-cooled cable
- PLC with automatic arc power control, trend logging and alarm package
- Charging chute position, tapping spout and slag door, tilting drive
- Cooling water station and off-gas hood with dust collection interface
Technical Parameters
| Parameter | Value |
|---|---|
| Rated transformer capacity | 3200 kVA |
| Rated DC voltage | 260-440 V |
| Rated DC current | 9-12 kA |
| Graphite electrode diameter | 300 mm |
| Hearth anode diameter | 500 mm |
| Furnace shell inside diameter | 2700 mm |
| Bath depth | 1050 mm |
| Tap-to-tap time | 32-45 min |
| Annual output | 9000-14000 t silicomanganese |
| Combined manganese and silicon recovery | 85 percent and above |
| Electrode consumption | ≤ 8 kg/t alloy |
| Noise level at platform | ≤ 82 dB(A) |
Application
Silicomanganese smelting from manganese ore and quartz blends, ferromanganese campaigns on the same shell, manganese rich slag re-treatment, and small steel plant captive alloy production.
Support
Ore blend testing, slag basicity design, power study, layout drawing, manufacture, installation supervision, commissioning and operator training are included. Delivery 2 to 3 months. Share your ore analysis and target tonnes per year and we will size the unit.
