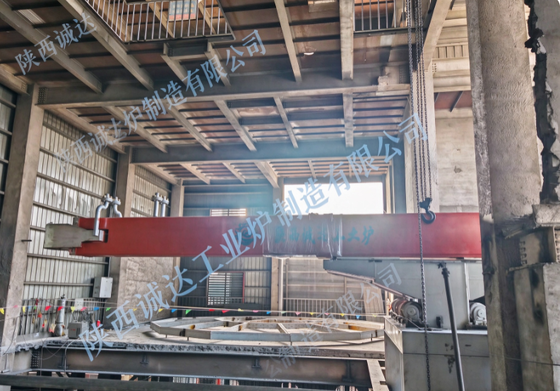

50000KVA 110kV Feed Semi Closed Type Large Submerged Arc Furnace for Ferrosilicon Smelting Line Waste Heat Recovery
| Place of Origin | Shaanxi, China |
|---|---|
| Brand Name | Shaanxi Chengda |
| Certification | ISO 9001:2015 |
| Model Number | CD-SAF-50000 |
| Minimum Order Quantity | 1 Set |
| Price | USD 250,000 - 1,200,000 / Set (negotiable by configuration) |
| Packaging Details | Main shell in seaworthy frame with anti-rust coating, electrodes and copper bus bars in export crates, accessories palletized with packing list |
| Delivery Time | 2~3 months |
| Payment Terms | T/T,L/C,D/A,Western Union, |
| Supply Ability | 8 complete submerged arc furnace lines per year |
Product Details
| Rated Capacity | 50000 KVA | Furnace Type | Semi-closed Submerged Arc Furnace With Waste Heat Recovery |
|---|---|---|---|
| Electrode Diameter | 1400 Mm, 3 Pieces, Self-baking | Primary Voltage | 110 KV |
| Secondary Voltage | 210-290 V | Furnace Shell Diameter | 11000 Mm |
| Annual Output | 100000-120000 T/a | Specific Power Consumption | 8200-8800 KWh/t |
| Waste Heat Boiler | 6-8 T/h Saturated Steam | Warranty | 12 Months |
| Highlight | 50000KVA submerged arc furnace,110kV ferrosilicon smelting line,semi closed furnace waste heat recovery |
||
Product Description
50000KVA Large Submerged Arc Furnace for Ferrosilicon Smelting
This 50000KVA large submerged arc furnace is a complete ferrosilicon smelting line designed around one high-capacity furnace body. Three 1400mm self-baking electrodes work with a 110kV direct step-down transformer, so the plant avoids an intermediate voltage level and reduces line losses. A semi-closed hood with water-cooled panels captures the flue gas, and the integrated waste heat boiler recovers part of that energy for the drying and preheating stage of the raw material system.
Why a Large Submerged Arc Furnace
- Single-unit scale: 50,000 KVA in one shell delivers 100,000-120,000 tons of ferrosilicon per year, lowering fixed cost and floor space per ton of alloy.
- 110kV direct feed: the furnace transformer steps 110kV down to 210-290 V directly, removing one transformer stage and cutting no-load and line losses.
- Waste heat recovery: water-cooled hood, flue gas duct and heat exchanger support a waste heat boiler for raw material drying or low pressure steam.
- Charge distribution control: a rotating distributor and three-point feeding keep the charge cone uniform, so the electrode holes stay open and furnace permeability remains stable.
- Full automation: PLC electrode control, power load closed loop, water temperature alarm, furnace shell temperature scan and one-key shutdown interlock.
Technical Parameters
| Parameter | Value |
|---|---|
| Rated transformer capacity | 50000 KVA |
| Primary voltage | 110 kV |
| Secondary voltage | 210-290 V, 3-phase |
| Electrode diameter | 1400 mm self-baking electrode, 3 pieces |
| Furnace shell diameter | 11,000 mm |
| Bath depth | 3,000 mm |
| Tapping temperature | 1600-1680 °C |
| Specific power consumption | 8,200-8,800 kWh/t |
| Annual output | 100,000-120,000 t/a |
| Cooling water flow | 600 m³/h at 0.45 MPa |
| Waste heat boiler capacity | 6-8 t/h saturated steam |
Scope of Supply
- 110kV furnace transformer, high current short net and water-cooled cable
- Furnace shell, semi-closed water-cooled hood and flue gas duct
- Waste heat boiler, heat exchanger and dust collection interface
- Electrode slipping device, holder and pressure ring
- Batching and three-point feeding system with rotating distributor
- Hydraulic tapping machine and casting bay equipment
- PLC cabinet, HMI and instrument package
Delivery and Service
- Process layout, load calculation and utility consumption list
- On-site installation supervision and cold and hot commissioning
- Operator and maintenance crew training for the whole line
- 12 months warranty, remote diagnostics and spare parts supply
Typical Applications
Ferrosilicon smelting plants, silicon alloy projects and new ferroalloy parks that plan a single large furnace line with waste heat recovery instead of several medium furnaces, especially where the incoming grid voltage is 110kV.
Send us your target capacity (kVA), raw material specification and site power conditions, and our engineering team will return a matched furnace configuration, layout drawing and budget quotation within 3 working days.
