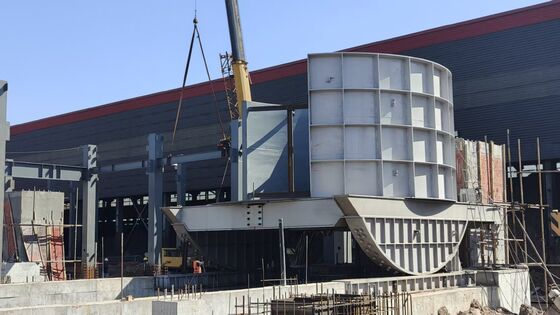

25000KVA 1250mm Electrode Closed Type Large Submerged Arc Furnace for High Carbon Ferromanganese Smelting
| Place of Origin | Shaanxi, China |
|---|---|
| Brand Name | Shaanxi Chengda |
| Certification | ISO 9001:2015 |
| Model Number | CD-SAF-25000 |
| Minimum Order Quantity | 1 Set |
| Price | USD 250,000 - 1,200,000 / Set (negotiable by configuration) |
| Packaging Details | Main shell in seaworthy frame with anti-rust coating, electrodes and copper bus bars in export crates, accessories palletized with packing list |
| Delivery Time | 2 months |
| Payment Terms | T/T,L/C,D/A,Western Union, |
| Supply Ability | 8 complete submerged arc furnace lines per year |
Product Details
| Rated Capacity | 25000 KVA | Furnace Type | Closed Submerged Arc Furnace, Hydraulic Tilting |
|---|---|---|---|
| Electrode Diameter | 1250 Mm, 3 Pieces, Self-baking | Secondary Voltage | 180-260 V |
| Furnace Shell Diameter | 8600 Mm | Annual Output | 60000-80000 T/a |
| Specific Power Consumption | 3800-4200 KWh/t | Cooling Water Flow | 450 M3/h At 0.4 MPa |
| Control Mode | PLC Automatic Electrode Regulation | Warranty | 12 Months |
| Highlight | 25000KVA submerged arc furnace,1250mm electrode ferromanganese furnace,closed type ferroalloy smelting furnace |
||
Product Description
25000KVA Large Submerged Arc Furnace for High Carbon Ferromanganese
This 25000KVA large submerged arc furnace is built for continuous high carbon ferromanganese production on an industrial scale. Three self-baking electrodes of 1250mm diameter sink into the charge bed so that heat is generated directly inside the burden, which gives deep bath penetration, stable arc length and a tapping temperature held between 1450 °C and 1550 °C. The closed furnace hood collects CO-rich off-gas for combustion or recovery instead of releasing it into the workshop, and the hydraulic tilting shell with a single tapping hole keeps slag and alloy separation clean on every tap.
Why a Large Submerged Arc Furnace
- High unit output: a single 25000KVA unit supports an annual output of 60,000-80,000 tons of high carbon ferromanganese, cutting specific power consumption to 3,800-4,200 kWh per ton.
- Stable deep-bath melting: 1250mm electrodes and a 20,000-25,000 A secondary current density keep the reaction zone submerged, so manganese volatilization loss stays below 3%.
- Closed hood with off-gas ducting: the sealed furnace cover, water-cooled skirt and flue gas duct allow waste heat recovery for preheating or power generation.
- Heavy-duty shell and tilting gear: thick steel shell with water-cooled wall panels, hydraulic tilting at a controlled angle for complete slag-free alloy tapping.
- PLC electrode regulation: automatic impedance control raises or lowers each electrode independently to hold the set power load within ±3%.
Technical Parameters
| Parameter | Value |
|---|---|
| Rated transformer capacity | 25000 KVA |
| Primary voltage | 35 kV / 110 kV (site dependent) |
| Secondary voltage | 180-260 V, 3-phase |
| Electrode diameter | 1250 mm self-baking electrode, 3 pieces |
| Furnace shell diameter | 8,600 mm |
| Bath depth | 2,600 mm |
| Tapping temperature | 1450-1550 °C |
| Specific power consumption | 3,800-4,200 kWh/t |
| Annual output | 60,000-80,000 t/a |
| Cooling water flow | 450 m³/h at 0.4 MPa |
| Control system | PLC + HMI, electrode impedance regulation, fault interlock |
Scope of Supply
- Furnace transformer, short net and copper bus tube
- Furnace shell, water-cooled wall, closed hood and flue gas duct
- Electrode holder, pressure ring, lifting and slipping device
- Hydraulic system for tilting, tapping and electrode slipping
- Cooling water manifold with temperature and flow monitoring
- Low voltage control cabinet, PLC cabinet and operation desk
- Spare parts for one year of normal operation
Delivery and Service
- Foundation and layout drawings released for civil works
- Engineer supervision for installation and first heat commissioning
- Operator training on electrode regulation, tapping and emergency handling
- 12 months warranty on main equipment, lifelong spare parts support
Typical Applications
High carbon ferromanganese smelting, manganese-rich slag processing and manganese alloy plants that need a single large furnace to replace several small units while keeping power consumption and manpower per ton low.
Send us your target capacity (kVA), raw material specification and site power conditions, and our engineering team will return a matched furnace configuration, layout drawing and budget quotation within 3 working days.
