60T Ladle Refining Furnace Argon Stirring System for Molten Steel Degassing
| Place of Origin | Shaanxi, China |
|---|---|
| Brand Name | Shaanxi Chengda |
| Certification | ISO9001 |
| Model Number | LF-60T |
| Minimum Order Quantity | 1 Set |
| Price | USD 40000-90000 / Set |
| Packaging Details | Standard export seaworthy packing with steel frame and moisture-proof protection |
| Delivery Time | 2 months |
| Payment Terms | T/T,L/C,Western Union |
| Supply Ability | 10 Sets per Month |
Product Details
| Furnace Type | Ladle Refining Furnace (LF) | Rated Capacity | 60 T |
|---|---|---|---|
| Transformer Capacity | 8000 KVA | Heating Rate | 3-5 Deg C/min |
| Working Temperature | 1550-1650 Deg C | Arc Voltage | 200-320 V |
| Electrode Diameter | 250-350 Mm | Argon Stirring | Bottom Porous Plug |
| Treatment Time | 30-45 Min | ||
| Highlight | 60T ladle refining furnace,argon stirring system for degassing,molten steel degassing equipment |
||
Product Description

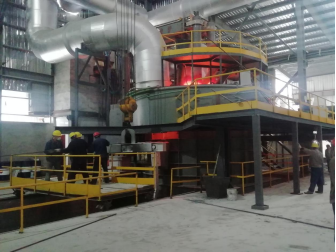

60T Ladle Refining Furnace with Argon Stirring System
The 60T Ladle Refining Furnace (LF) is designed for molten steel degassing, temperature homogenization and final composition adjustment. With a bottom argon stirring station and three-electrode arc heating, it improves steel cleanliness and metallurgical quality for medium and large steelmaking plants.
Key Selling Points
- Argon Stirring Station: Bottom porous plug argon stirring accelerates degassing and promotes non-metallic inclusion flotation.
- Large Capacity: 60-ton ladle capacity supports medium and large scale steel refining.
- Three-Electrode Arc Heating: Stable arc heating holds the tapping temperature within a tight range.
- Composition Adjustment: Accurate addition of ferroalloys for precise final steel chemistry.
- Reliable Structure: Heavy-duty ladle car, water-cooled roof and hydraulic tilting ensure long service life.
Working Principle
The ladle with molten steel is transferred under the heating station. Argon is injected through the bottom porous plug to stir the bath, while three graphite electrodes provide arc heating. Slag and alloy additions refine the steel and adjust its composition.
Main Technical Parameters
| Item | Specification |
|---|---|
| Rated Capacity | 60 t |
| Transformer Capacity | 8000 kVA |
| Heating Rate | 3 - 5 °C/min |
| Working Temperature | 1550 - 1650 °C |
| Arc Voltage | 200 - 320 V |
| Electrode Diameter | 250 - 350 mm |
| Argon Flow | 30 - 60 NL/min |
| Treatment Time | 30 - 45 min |
Applications
Suitable for carbon steel, alloy steel and special steel ladle refining in steelmaking plants.
Why Choose Us
We provide complete process design, equipment manufacturing, installation and commissioning support. ISO9001 certified production ensures consistent quality and reliable after-sales service.
