10000KVA Medium Low Carbon Ferromanganese Refining Furnace with Submerged Arc Smelting Technology
| Place of Origin | Henan, China |
|---|---|
| Brand Name | ECER |
| Certification | ISO 9001:2015, CE |
| Model Number | FMN-10000KVA-MC |
| Minimum Order Quantity | 1 Set |
| Price | USD 800,000-1,500,000 / Set |
| Packaging Details | Standard export packing with steel frame and waterproof covering |
| Delivery Time | 120-180 days after down payment |
| Payment Terms | T/T,L/C |
| Supply Ability | 2 Sets per Month |
Product Details
| Rated Capacity | 10000 KVA | Furnace Type | Submerged Arc Refining Furnace |
|---|---|---|---|
| Main Product | Medium & Low Carbon Ferromanganese | Electrode Diameter | 500 Mm |
| Transformer Voltage | 35 KV / 190-280 V | Tapping Method | Continuous Tapping |
| Cooling Method | Water Cooling | Control System | PLC Automatic Control |
| Refractory Lining | High Alumina / Carbon Lining | ||
| Highlight | 10000KVA ferromanganese refining furnace,low carbon ferromanganese smelting equipment,submerged arc ferroalloy refining furnace |
||
Product Description

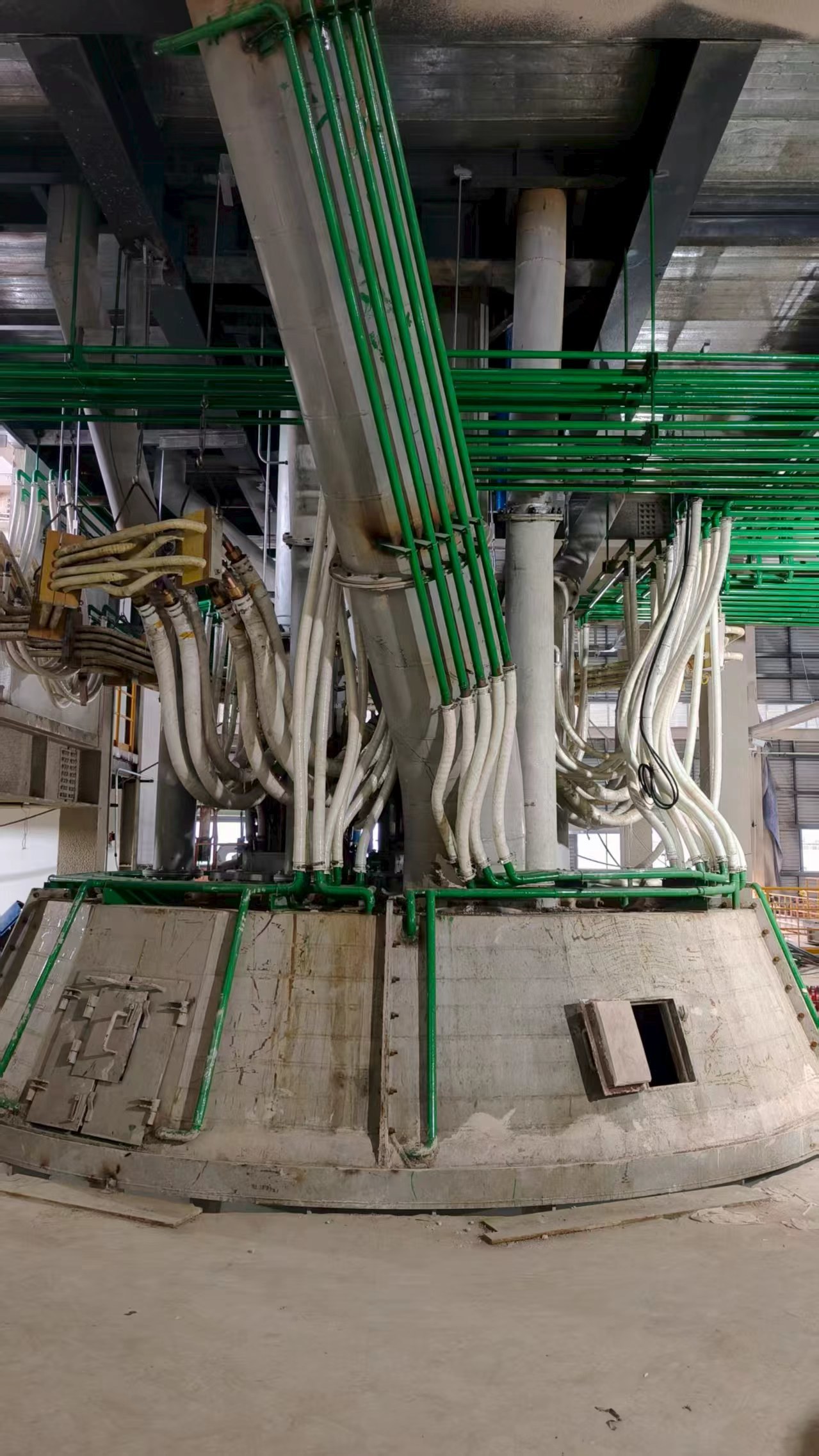

10000KVA Medium Low Carbon Ferromanganese Refining Furnace
Overview: This 10000KVA medium low carbon ferromanganese refining furnace is a large-capacity submerged arc smelting system engineered for ferroalloy plants producing medium carbon ferromanganese (MC FeMn) and low carbon ferromanganese (LC FeMn). It integrates a 10000KVA refining transformer, water-cooled furnace shell, PLC automatic electrode regulation and continuous tapping design for stable, round-the-clock production.
Key Features
- 10000KVA rated capacity for large-batch medium and low carbon ferromanganese refining
- Submerged arc smelting technology with low power consumption per ton of alloy
- PLC automatic electrode control ensures stable arc and uniform furnace temperature
- Water-cooled furnace shell and copper busbars for extended service life
- Continuous tapping with slag-metal separation for higher alloy recovery
- Complete dedusting and fume collection system meeting environmental standards
Technical Parameters
| Rated Capacity | 10000 KVA |
| Furnace Type | Submerged Arc Refining Furnace |
| Main Product | Medium & Low Carbon Ferromanganese |
| Electrode Diameter | 500 mm |
| Transformer Voltage | 35 kV / 190-280 V |
| Tapping Method | Continuous Tapping |
| Cooling Method | Water Cooling |
| Control System | PLC Automatic Control |
| Refractory Lining | High Alumina / Carbon Lining |
Applications
Ideal for ferroalloy plants, steel mills and special alloy producers requiring large-scale medium and low carbon ferromanganese refining with stable composition control and high productivity.
Why Choose Us
- Complete engineering design, manufacturing, installation and commissioning service
- ISO 9001:2015 certified production workshop with strict quality inspection
- Customizable transformer rating, electrode size and control configuration
