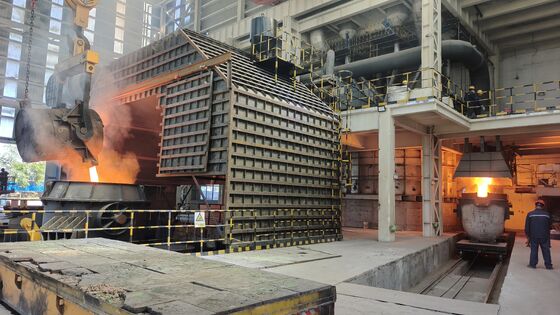

Large Medium-Low Carbon Ferromanganese Refining Furnace Transformer 35kV to 380V 12.5MVA 50Hz 3-Phase Oil-Immersed
| Place of Origin | Sichuan, China |
|---|---|
| Brand Name | WNRLN |
| Certification | ISO 9001:2015, CE, IEC 60076 |
| Model Number | WN-FT-12.5MVA-35/0.38 |
| Minimum Order Quantity | 1 Set |
| Price | USD 150,000 - 500,000 / Set |
| Packaging Details | Export-grade wooden crate with vacuum-sealed moisture barrier, shock-absorbing foam inserts, seaworthy container loading with desiccant packs |
| Delivery Time | 60-90 working days after deposit |
| Payment Terms | T/T,L/C |
| Supply Ability | 20 Sets per Year |
Product Details
| Rated Capacity | 12.5 MVA | Primary Voltage | 35 KV |
|---|---|---|---|
| Secondary Voltage | 380V, 3-Phase, 50Hz | Cooling Method | OFAF (Forced Oil-Air Cooling) |
| Tap Changer | On-Load (OLTC), 13 Positions | Winding Material | Electrolytic Copper, Insulation Class H |
| Impedance | 6-8% (Customizable) | Vector Group | Dyn11 Or YNd11 |
| Oil Type | Mineral Insulating Oil, IEC 60296 | Temperature Monitoring | PT100 Sensors With Digital Controller |
| Highlight | Large ferromanganese refining furnace transformer,35kV to 380V oil-immersed transformer,12.5MVA 3-phase refining furnace transformer |
||
Product Description
12.5MVA Furnace Transformer System
Dedicated Power Supply for Medium-Low Carbon Ferromanganese Refining Furnaces
Product Overview
The WN-FT-12.5MVA-35/0.38 is a purpose-built furnace transformer designed to deliver reliable, high-current power to electric ladle refining furnaces producing medium-low carbon ferromanganese. With an input voltage of 35kV stepped down to 380V at 12.5MVA, this oil-immersed transformer features on-load tap changing, advanced OFAF cooling, and Class H insulation for continuous heavy-duty operation in demanding metallurgical environments.
Key Features
⚡ 12.5MVA Rated Capacity
Engineered for high-current output to support large ferromanganese ladle refining furnaces with stable arc characteristics and minimal voltage fluctuation.
🔄 On-Load Tap Changer (OLTC)
13-position on-load tap changer enables dynamic voltage adjustment without interrupting furnace operation, ensuring optimal power delivery throughout the refining cycle.
💧 OFAF Cooling Technology
Forced oil-air cooling system with high-efficiency radiators and fans maintains safe operating temperatures even under continuous full-load conditions.
🛡️ Class H Insulation
Premium electrolytic copper windings with Class H (180°C) insulation system provide extended service life and exceptional thermal endurance in harsh furnace environments.
📊 Digital Monitoring System
Integrated PT100 temperature sensors with digital controller for real-time oil temperature, winding temperature, and cooling system status monitoring.
🔧 Customizable Configuration
Adjustable impedance (6-8%), flexible vector group (Dyn11/YNd11), and optional accessories to match specific furnace specifications and site requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Capacity | 12.5 MVA |
| Primary Voltage | 35 kV |
| Secondary Voltage | 380V, 3-Phase, 50Hz |
| Cooling Method | OFAF (Forced Oil-Air Cooling) |
| Tap Changer | On-Load, 13 Positions |
| Winding Material | Electrolytic Copper, Class H Insulation |
| Impedance | 6-8% (Customizable) |
| Oil Standard | Mineral Insulating Oil, IEC 60296 |
Compatible Applications
Ladle Refining Furnace (LRF)
Ferromanganese Smelting
Electric Arc Furnace Supply
Ferroalloy Production Lines
Submerged Arc Furnace Power
Request Technical Datasheet & Pricing
Our transformer specialists are available to discuss your specific furnace power requirements. Contact us for a tailored solution with comprehensive technical documentation.
