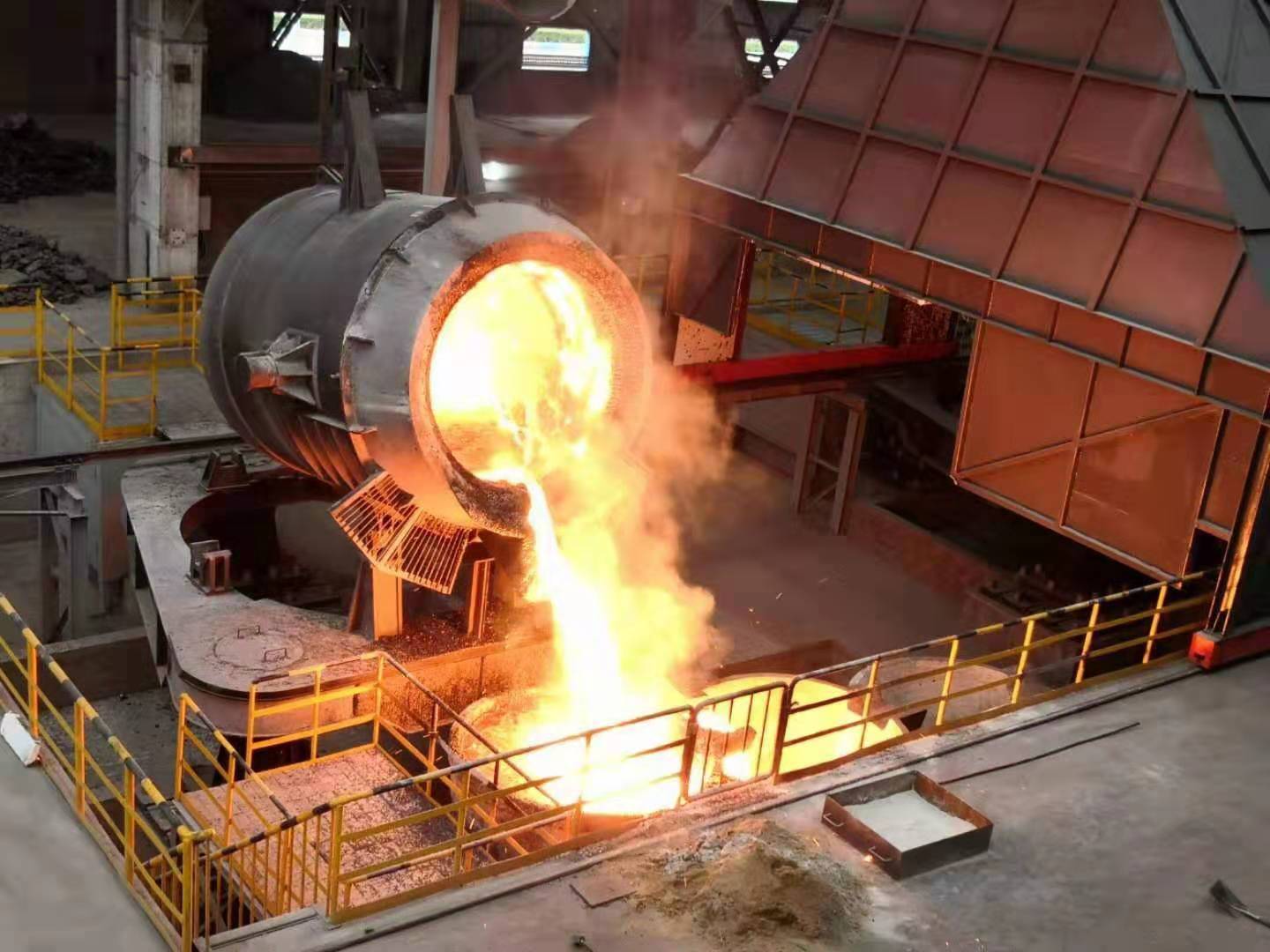

Ferromanganese Furnace

  • Ferromanganese Furnace
Place of Origin China
Brand Name Shaanxi Chengda
Certification ISO 9001
Model Number Negotiate based on equipment processing capacity
Minimum Order Quantity 1 unit
Price The price will be negotiated based on the technical requirements and supply scope of Party A
Packaging Details Discuss according to the specific requirements of Party A
Delivery Time 2 months
Payment Terms L/C,T/T,Western Union
Supply Ability Complete production supply chain, supply on time, and meet quality standards
Product Details
Type Industrial Silicon Total Power 16500kva
Leaving Factory Standard New ISO9001 Safetyfeatures Overheat Protection, Emergency Stop, And Gas Leak Detection
Cost Varies Depending On Size And Features Dimensions Customizable Based On Client Requirements
Power Frequency 50Hz Automationlevel Semi-automatic To Fully Automatic
Energyefficiency Designed For Low Energy Consumption Transformer Capacity 6300kVA
Highlight

ferromanganese furnace for alloy refining

,

ferroalloy refining furnace equipment

,

industrial ferromanganese smelting furnace
Leave a Message
Product Description

Ferromanganese Furnace: Equipment and Technical Parameters

1. Equipment Overview

Ferromanganese furnaces are divided into two main types: Submerged Arc Reduction Furnace (for high-carbon ferromanganese HC FeMn) and Refining Electric Arc Furnace (for medium/low-carbon ferromanganese MC/LC FeMn).
  1. High-carbon ferromanganese submerged arc furnace (SAF): Adopts three Söderberg self-baking electrodes submerged in burden, relies on arc & resistance heating for carbothermic reduction of manganese ore, closed furnace design for CO furnace gas recovery, large capacity for continuous mass production.
  2. Medium & low-carbon ferromanganese refining furnace: Tilting AC/DC arc furnace with graphite electrodes, silicothermic decarburization refining to produce low-carbon high-purity ferromanganese for high-grade steelmaking.

2. Complete Equipment System Composition

2.1 High-Carbon Ferromanganese Submerged Arc Furnace System

(1) Power Supply & Transformer System

  • 10kV high-voltage distribution cabinet, SVG reactive power compensation device
  • Three-phase on-load tap-changing furnace transformer (90–240V multi-grade secondary voltage)
  • Short network: water-cooled copper cross arms, copper contact shoes, water-cooled flexible cables, low-loss conductive structure
  • Self-baking electrode holding & slipping device, automatic electrode length compensation

(2) Furnace Body Main Equipment

  1. Furnace shell: All-welded cylindrical steel shell, full water cooling at slag line, furnace waist and furnace roof; leakage & temperature sensors equipped
  2. Refractory lining: Furnace bottom & molten pool – high-density carbon bricks; slag zone – magnesia-carbon bricks; fully resistant to high-temperature reduction slag corrosion
  3. Closed furnace hood: Water-cooled sealed cover, centralized flue gas outlet for furnace gas recovery & dust removal
  4. Tapping & slag outlet: Double fixed tap holes, mud gun, tapping machine, separate iron & slag runner

(3) Electrode Hydraulic Lifting System

Three independent hydraulic lifting cylinders, PLC constant resistance automatic adjustment, fast response to stabilize submerged arc, reduce electrode breakage risk.

(4) Supporting Auxiliary Systems

  1. Raw material batching system: Silos, belt weigh feeders, mixing machine (weighing accuracy ±0.5%)
  2. Closed circulation cooling water system for furnace shell, cross arms, transformer
  3. Furnace gas recovery & dedusting system: Waste heat utilization + bag dust collector
  4. DCS automatic control system: Continuous monitoring of power, electrode position, cooling water, furnace pressure, tapping timing & data storage

2.2 Medium/Low-Carbon Ferromanganese Refining Furnace System

(1) Power Supply Unit

Three-phase AC furnace transformer / DC rectifier unit, graphite electrode matching design, fast power adjustment for decarburization refining stage.

(2) Tilting Furnace Body

  • Integral water-cooled furnace shell, alkaline chrome-magnesia refractory lining
  • Hydraulic bilateral tilting mechanism, tilting angle 0–110° for tapping & slagging
  • Lifting & rotating furnace cover, convenient for feeding & furnace repairing

(3) Matching Auxiliary Equipment

Oxygen blowing device (optional for deep decarburization), hydraulic tapping machine, closed dust collection, circulating water cooling, PLC automatic smelting curve control.

3. Standard Technical Parameter Tables

3.1 High-Carbon Ferromanganese Submerged Arc Furnace (Mainstream Models)


Parameter Item 9000kVA SAF 16000kVA SAF 25000kVA SAF
Transformer Rated Capacity 9000 kVA 16000 kVA 25000 kVA
High-voltage Input 10kV, 50Hz 10kV, 50Hz 10kV, 50Hz
Secondary AC Voltage Range 110–210V 130–230V 140–240V
Rated Secondary Current 48000 A 76000 A 112000 A
Self-baking Electrode Diameter Φ600 mm Φ750 mm Φ900 mm
Furnace Shell Inner Diameter Φ4200 mm Φ5200 mm Φ6200 mm
Effective Furnace Depth 3200 mm 3800 mm 4400 mm
Single Daily Output (HC FeMn) 35–45 t/d 65–80 t/d 100–130 t/d
Smelting Temperature Range 1450–1600 ℃ 1450–1600 ℃ 1450–1600 ℃
Comprehensive Power Consumption 2600–3300 kWh/t 2500–3200 kWh/t 2400–3000 kWh/t
Manganese Recovery Rate 92–95% 93–96% 94–97%
Furnace Operation Mode Fully Closed Fully Closed Fully Closed

3.2 Medium & Low-Carbon Ferromanganese Refining Furnace Parameters


Parameter Item 1500kVA Refining Furnace 3200kVA Refining Furnace 6300kVA Refining Furnace
Transformer Capacity 1500 kVA 3200 kVA 6300 kVA
Graphite Electrode Spec. Φ300 mm Φ350 mm Φ450 mm
Single Heat Output FeMn 1.2–1.8 t 2.5–3.5 t 4.5–6 t
Single Heat Smelting Cycle 60–80 min 65–85 min 70–90 min
Maximum Tilting Angle 105° 110° 110°
Refining Temperature 1500–1650 ℃ 1500–1650 ℃ 1500–1650 ℃
Refining Power Consumption 1100–1500 kWh/t 1000–1400 kWh/t 900–1300 kWh/t
Final Alloy Carbon Content C≤2.0% / C≤0.7% C≤2.0% / C≤0.7% C≤2.0% / C≤0.7%

3.3 Core Process Technical Indicators

  1. High-Carbon Ferromanganese (HC FeMn, C 6–8%, Mn≥74%)
  • Slag basicity control range: 1.5–1.8
  • Raw materials: Manganese ore, coke, lime flux
  • Furnace gas composition: CO≥70%, recoverable for heating or power generation
  • Refractory service life: Carbon brick bottom 2–3 years, slag line magnesia brick 8–12 months
  1. Medium/Low-Carbon Ferromanganese (MC/LC FeMn)
  • Raw materials: Silicomanganese alloy, manganese ore, lime
  • Decarburization principle: Silicothermic reduction to remove carbon element
  • Slag MnO content ≤5%, high manganese recovery rate
  • Hot charging process can reduce power consumption by ~20% and increase output by 25%

4. Core Technical Advantages

4.1 Submerged Arc Furnace for High-Carbon Ferromanganese

  1. Closed fully sealed structure, complete furnace gas recovery, low flue gas emission, energy-saving & eco-friendly
  2. Self-baking electrodes with low production cost, stable submerged arc heating, uniform molten pool temperature
  3. Large continuous production capacity, low labor intensity, high manganese recovery rate
  4. Carbon brick furnace lining with strong anti-reduction slag corrosion performance, long service cycle

4.2 Tilting Refining Furnace for Medium/Low-Carbon Ferromanganese

  1. Flexible power adjustment, accurate temperature control, stable carbon content of finished alloy
  2. Hydraulic tilting design, convenient slag tapping & iron tapping, short auxiliary operation time
  3. Graphite electrode low carbon pollution, suitable for high-purity low-carbon ferromanganese production
  4. Compact layout, small floor space, matching both cold charging and hot charging smelting processes

5. Main Applicable Products

  1. Submerged Arc Furnace: High-carbon ferromanganese HC FeMn, silicon-manganese alloy SiMn
  2. Refining Tilting Furnace: Medium-carbon ferromanganese (MC FeMn), low-carbon ferromanganese (LC FeMn), micro-carbon ferromanganese
