Copper-Cobalt Alloy Furnace
| Place of Origin | China |
|---|---|
| Brand Name | Shaanxi Chengda |
| Certification | ISO 9001 |
| Model Number | Negotiate based on equipment processing capacity |
| Minimum Order Quantity | 1 unit |
| Price | The price will be negotiated based on the technical requirements and supply scope of Party A |
| Packaging Details | Discuss according to the specific requirements of Party A |
| Delivery Time | 2 months |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | Complete production supply chain, supply on time, and meet quality standards |
Product Details
| Efficiency | High | Country Of Origin | Shaanxi, China |
|---|---|---|---|
| Automationlevel | Semi-automatic To Fully Automatic | Leaving Factory Standard | New ISO9001 |
| Total Power | 33000kva | Productname | Ferroalloy Refining Equipment |
| Capacity | Varies By Model, Typically 1-10 Tons Per Batch | Maintenance | Easy Maintenance With Replaceable Parts |
| Gas Characteristics | Synthetic Fuel (Burning Mixture) | Gas Use | New Clean Energy |
| Warranty Period | 1year | ||
| Highlight | copper-cobalt alloy furnace,ferroalloy refining furnace,industrial copper-cobalt melting equipment |
||
Product Description

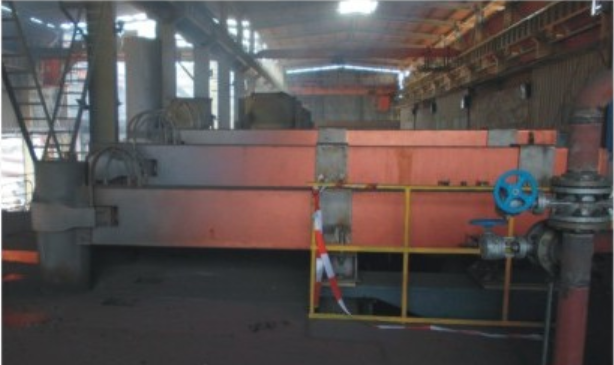

Copper-Cobalt Alloy Furnace
Product Overview
The Copper-Cobalt Alloy Furnace is a dedicated arc furnace for copper-cobalt ore reduction smelting and copper-cobalt alloy production. It is designed for raw materials such as African copper-cobalt oxide ores, producing high-grade copper-cobalt alloys (Cu+Co≥40%) through high-temperature reduction and slag separation. Featuring a full water-cooled body + high-strength refractory lining and a PLC intelligent control system, it offers high temperature resistance, high recovery rate, precise composition control, and environmental sustainability. It is widely used in copper-cobalt ore pyrometallurgy, alloy purification, and renewable resource recycling.
1. Main Equipment Composition
-
Full Water-Cooled Tilting Furnace BodySplit/integral steel shell with full water-cooled wall + magnesia-chromium refractory lining, resisting temperatures up to 1600℃ and acid-base slag erosion. Tilting angle: 0–45° (alloy tapping), 0–15° (slag removal), driven by a hydraulic system for stable operation.
-
Water-Cooled Furnace Roof & Electrode SystemAnnular full water-cooled roof with central electrode hole and side dust removal/charging ports for sealing and heat preservation. Φ300–Φ500mm graphite electrodes with servo hydraulic lifting (0.8–1.5m/min) ensure stable arc and sensitive adjustment.
-
Transformer & Short-Net SystemEnergy-saving dedicated transformer (2000–8000kVA), high voltage: 35kV, low voltage: 180–300V. Low-impedance short net + full water-cooled conductive cross arm minimizes high-current transmission loss and improves thermal efficiency.
-
Charging & Slag Tapping MechanismAutomatic top/side charging bin for mixed materials (ore, coke, lime). Trough/EBT alloy tapping ensures smooth outflow with minimal residual slag, paired with ladles for rapid transfer.
-
PLC Intelligent Control SystemDual automatic/manual mode with one-key start-stop, automatic arc stabilization, and closed-loop temperature/power control. Supports online composition monitoring, data logging, and remote monitoring with full interlock protection for safety.
-
Auxiliary SystemsClosed circulating water cooling, baghouse dust removal (emission ≤10mg/m³), automatic coke/lime conveying, hydraulic station, and lubrication systems. Fully equipped and environmentally compliant.
2. Core Performance Advantages
- High Recovery Rate: Precise temperature control (1400–1600℃) ensures complete reduction, with Cu recovery ≥86% and Co recovery ≥90%.
- Superior Alloy Quality: Optimized slag system (CaO/SiO₂=1.0–1.3) minimizes impurities (Fe, Si, S), delivering Cu+Co≥40% with uniform composition.
- High Efficiency & Low Consumption: Full water-cooled design reduces refractory consumption (2x longer life). Single-furnace cycle: 50–90min, power consumption: 2200–3200kWh/t alloy.
- High Temperature Resistance & Long Service Life: Water-cooling + refractory double protection minimizes deformation and erosion for extended continuous operation.
- Eco-Friendly & Safe: Closed smoke extraction + high-efficiency dust removal eliminates leaks. Full interlock protection prevents overheating and leakage.
- Wide Raw Material Adaptability: Compatible with oxide/sulfide copper-cobalt ores, copper-cobalt slag, and recycled materials for flexible production.
3. Main Technical Parameters (Reference)
| Item | Specification |
|---|---|
| Rated Capacity | 8t, 15t, 25t, 40t, 60t |
| Transformer Capacity | 2000kVA, 4000kVA, 6300kVA, 8000kVA |
| Electrode Diameter | Φ300mm, Φ350mm, Φ400mm, Φ500mm |
| Electrode PCD | Φ1100–Φ1500mm |
| Smelting Temperature | 1400–1600℃ |
| Smelting Cycle | 50–90min/heat |
| Tapping Mode | Trough Tapping / EBT |
| Tilting Angle | Alloy Tapping 0–45°, Slagging 0–15° |
| Cooling Mode | Closed Cycle Pure Water Cooling |
| Control Mode | PLC Automatic + Manual Dual Mode |
| Raw Materials | Copper-Cobalt Oxide/Sulfide Ore, Copper-Cobalt Slag, Coke, Lime |
| Product Composition | Cu+Co≥40%, Cu≥30%, Co≥5% |
