Large-Capacity White Fused Alumina Arc Furnace
| Place of Origin | China |
|---|---|
| Brand Name | Shaanxi Chengda |
| Certification | ISO 9001 |
| Model Number | Negotiate based on equipment processing capacity |
| Minimum Order Quantity | 1 unit |
| Price | The price will be negotiated based on the technical requirements and supply scope of Party A |
| Packaging Details | Discuss according to the specific requirements of Party A |
| Delivery Time | 2 months |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | Complete production supply chain, supply on time, and meet quality standards |
Product Details
| Highlight | white fused alumina arc furnace,large-capacity arc furnace,ferroalloy refining equipment |
||
|---|---|---|---|
Product Description

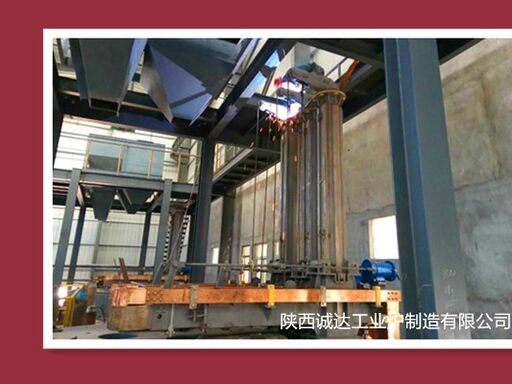

Large-Capacity White Fused Alumina Arc Furnace
Equipment Introduction & Parameters
Large-capacity white fused alumina arc furnaces are core thermal equipment for producing high-purity white fused alumina (α-Al₂O₃). Using industrial alumina powder as raw material, they melt, purify and recrystallize the material at temperatures above 2000℃ generated by electrode arcs. "Large capacity" generally refers to equipment with a transformer capacity ≥ 4000 kVA and single furnace output ≥ 5 tons, featuring high efficiency, low energy consumption and stable performance for large-scale production.
1. Core Equipment Structure
1.1 Furnace System
- Furnace Shell: Welded with 20g boiler steel plate, thickness 18–25 mm, circular structure without stiffeners, ensuring tightness and strength.
- Furnace Lining: Constructed with high-alumina refractory bricks or castables, resistant to temperatures above 2200℃, corrosion and erosion, with adequate permeability to prevent melt blowback.
- Furnace Cover: Water-cooled composite steel structure, cylindrical type, equipped with electrode holes, charging holes and observation ports, rotatable and liftable.
- Tilting Mechanism: Fixed type (block furnace) or hydraulic tilting type, tilting angle 0–45°, convenient for slag and block discharge.
1.2 Electrode System
- Electrodes: High-power graphite electrodes, commonly Φ300–Φ450 mm for large-capacity furnaces, arranged in an equilateral triangle.
- Lifting Device: Driven by variable-frequency motor, lifting speed 1.5–2.5 m/min, stroke 1600–2200 mm, with automatic constant-current / constant-power regulation.
- Clamping System: Belt-type or hydraulic chucks, water-cooled, ensuring reliable conductivity and clamping.
1.3 Electrical System (Core)
- Transformer: Special on-load voltage-regulating rectifier transformer, commonly 6000–10000 kVA (6–10 MVA) for large-capacity models.
- Short Network: Composed of water-cooled cables, copper bars and conductive cross-arms, arranged in triangular form with three-phase impedance unbalance < 8% to reduce energy consumption.
- Control System: Fully automatic PLC control, monitoring current, voltage, power, temperature and electrode position.
1.4 Auxiliary Systems
- Cooling System: Spray cooling for furnace walls, internal water cooling for furnace cover, electrodes and short network; water consumption 150–300 t/h, equipped with pressure and temperature alarms.
- Charging System: Top furnace bin / charging tank, automatic or semi-batch feeding.
- Flue Gas Dedusting: Fully sealed gas hood with bag filter to meet environmental emission standards.
- Oxygen Injection: Top-blowing oxygen device for auxiliary melting, stirring and impurity removal.
2. Typical Large-Capacity Specifications
| Item | 4000 kVA (5t) | 6300 kVA (8t) | 10000 kVA (12–15t) |
|---|---|---|---|
| Transformer Capacity | 4000 kVA | 6300 kVA | 10000 kVA |
| Rated Furnace Capacity | 5 tons/heat | 8 tons/heat | 12–15 tons/heat |
| Furnace Shell Inner Diameter | Φ2800 mm | Φ3400 mm | Φ4200 mm |
| Furnace Shell Depth | 1400 mm | 1700 mm | 2000 mm |
| Graphite Electrodes | Φ250 mm × 3 | Φ350 mm × 3 | Φ450 mm × 3 |
| Secondary Voltage | 180–390 V (22 steps) | 160–360 V (27 steps) | 140–320 V (33 steps) |
| Rated Current | Approx. 9200 A | Approx. 14500 A | Approx. 22000 A |
| Smelting Cycle | 6–7 hours | 7–8 hours | 8–10 hours |
| Unit Power Consumption | 1700–1900 kWh/t | 1650–1800 kWh/t | 1600–1750 kWh/t |
| Cooling Water Volume | Approx. 200 t/h | Approx. 250 t/h | Approx. 300 t/h |
| Furnace Type | Fixed / Tilting | Tilting | Tilting |
| Total Equipment Weight | Approx. 120 t | Approx. 180 t | Approx. 260 t |
3. Working Principle & Process
- Raw Material: Industrial alumina powder (Al₂O₃ ≥ 98.5%), with strict control of Na₂O, SiO₂ and Fe₂O₃ impurities.
- Arc Ignition: Electrodes lower down and energize to start arcing, raising furnace temperature to 2200–2300℃.
- Smelting: Batch feeding with closed-chamber method (thick material layer) for high thermal efficiency and low energy consumption.
- Refining: Holding for 4–6 hours to separate and remove impurities; β-Al₂O₃ (sodium impurities) segregated and eliminated.
- Cooling: Natural cooling for 24–36 hours after power-off to form dense white fused alumina clinkers.
- Post-Treatment: Crushing, sieving, acid washing and sorting to obtain finished product with Al₂O₃ ≥ 99%.
4. Performance Features
- High Purity: Product Al₂O₃ ≥ 99.0%, high whiteness and low impurities.
- High Output: 10000 kVA furnace achieves daily output of 30–35 tons, suitable for mass production.
- Low Energy Consumption: Higher thermal efficiency in large-capacity furnaces, unit power consumption 5–10% lower than small furnaces.
- Stability & Reliability: High automation, long furnace lining life, stable continuous operation.
- Environmental Protection: Fully sealed structure with high-efficiency dust removal, flue gas meets emission standards.
5. Main Applications
- Abrasives & Grinding Tools: Ceramic / resin abrasives, sandpaper, abrasive belts, grinding powders for precision grinding and polishing.
- Refractory Materials: High-grade refractory bricks, castables, nozzles, sliding plates for metallurgical, building materials and petrochemical high-temperature kilns.
- Functional Ceramics: Electronic ceramics, ceramic cutting tools, high-temperature structural components.
- Others: Precision casting sand, sandblasting media, anti-corrosion fillers, refractory fibers, etc.
