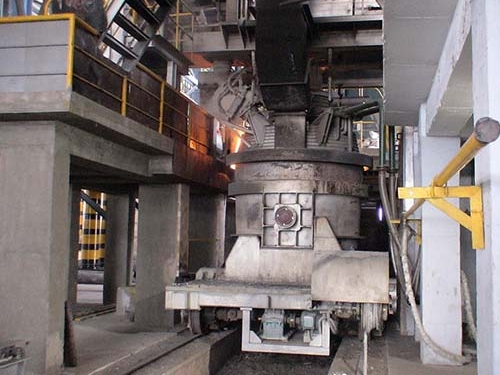

Energy saving Ladle Refining Furnace with water cooling system

  • Energy saving Ladle Refining Furnace with water cooling system
Place of Origin China
Brand Name Shaanxi Chengda
Certification ISO 9001
Model Number Negotiate based on equipment processing capacity
Minimum Order Quantity 1 unit
Price The price will be negotiated based on the technical requirements and supply scope of Party A
Packaging Details Discuss according to the specific requirements of Party A
Delivery Time 2 months
Payment Terms L/C,T/T,Western Union
Supply Ability Complete production supply chain, supply on time, and meet quality standards
Product Details
Highlight

water cooling ladle refining furnace

,

energy saving ferroalloy refining equipment

,

ladle furnace with water cooling system
Leave a Message
Product Description

Energy-saving Ladle Refining Furnace (LRF/LF) with water cooling system is a high-efficiency secondary refining equipment in modern steelmaking, integrating advanced water-cooled components and intelligent control to drastically cut power consumption, extend equipment life, and improve steel quality.


Core Structure & Water-Cooled Components



Water-Cooled Furnace Lid/Roof

  • Design: Full tubular water-cooled structure (seamless steel pipes 20g/Q345R), labyrinth/spiral channels, no dead zones.
  • Cooling: Closed-loop softened water (conductivity <100μS/cm, pH 7.5–8.5), ΔT ≤8°C.
  • Benefits: Surface temp <60°C, minimal thermal deformation, extends refractory life, reduces heat loss by ~30%.
  • Water-Cooled Conductive Arm & Electrode System

    • Copper-steel composite conductive arm with internal water cooling.
    • Water-cooled cable/large cross-section busbar reduces impedance and heat loss.
    • Energy saving: Lower main circuit resistance → 10–15% less electricity.
      1. Water-Cooled Short Network & Transformer

        • Cools high-current components (busbars, transformer coils).
        • Stabilizes electrical parameters, improves power factor (to ~0.95), cuts reactive power loss.

      2. Integrated Water Cooling System (Closed Loop)

        • Components: Plate heat exchanger, variable-frequency cooling tower, VFD pumps, online water quality monitoring (TDS, turbidity, Fe²⁺).
        • Control: PLC-based automatic flow/temp/pressure regulation; flow fluctuation <±3%.
        • Safety: Backup water supply, over-temperature/under-flow alarms.


      Key Energy-Saving Mechanisms


      1. Reduced Thermal Loss
        • Efficient water cooling lowers shell/roof heat radiation → heat loss reduced by 25–40%.
        • Maintains higher furnace thermal efficiency, less arc power wasted.

      2. Optimized Electrical Efficiency
        • Low-impedance water-cooled conductors → higher thermal efficiency.
        • Stable arc → reduced electrode consumption (15–20%).

      3. Intelligent Variable-Frequency Operation
        • VFD pumps/fans: match flow to heat load → pump power down 20–30%.
        • Smart control stabilizes water temp ΔT at optimal 4–8°C.

      4. Waste Heat Recovery (Optional)
        • Recover heat from cooling water for preheating boiler feedwater or workshop heating.
        • Improves overall energy utilization by 8–12%.


      Performance Advantages


      • Power consumption: ~20–30% lower than conventional LF.
      • Refractory life: extended by ~40%.
      • Productivity: shorter refining time, higher tapping accuracy.
      • Steel quality: better desulfurization/degassing/cleanliness.
      • Environmental: less radiation, lower dust emissions.

      Typical Technical Specifications


      • Capacity: 20–150 t
      • Rated power: 3–15 MW
      • Cooling water flow: 50–150 m³/h (furnace lid)
      • Inlet water temp: ≤35°C; Outlet ≤43°C
      • Water pressure: 0.4–0.6 MPa
      • Power factor: ≥0.92

      Summary


      This energy-saving LF with advanced water cooling is a high-efficiency, low-consumption, long-life refining solution. It cuts energy use, stabilizes production, and improves steel quality—ideal for high-grade steel production (bearing, alloy, stainless steels).
