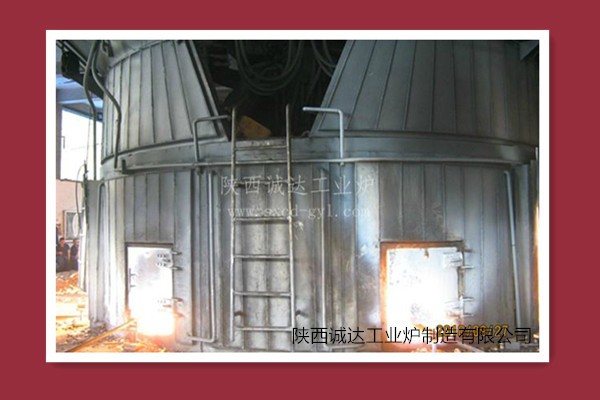

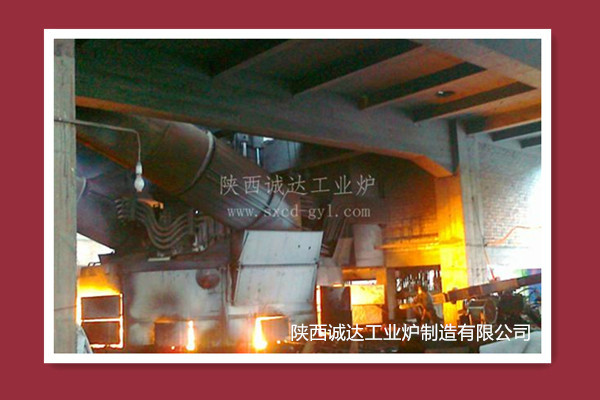

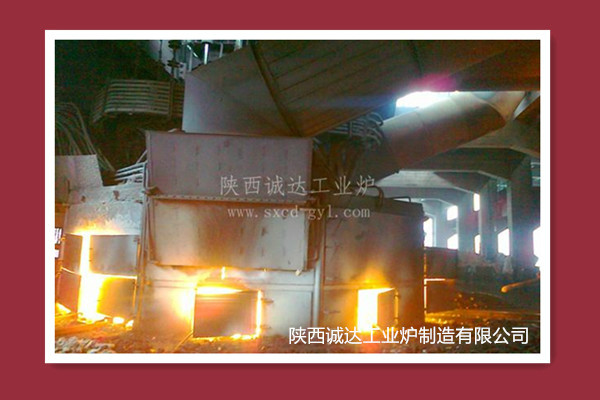

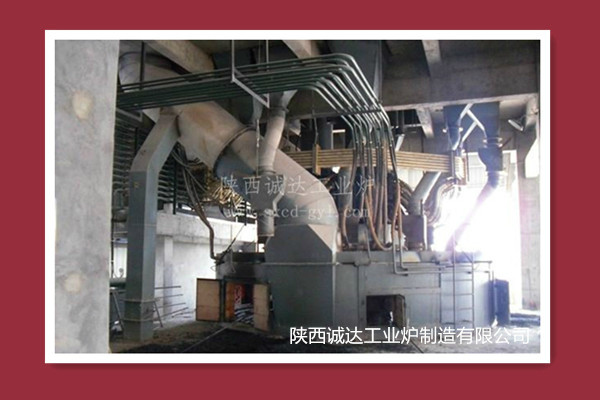

High Capacity 16500KVA Industrial Silicon Furnace For Ferroalloy Ore Smelting

1.Application of industrial silicon furnace:
Industrial silicon, also known as crystalline silicon or industrial silicon. The main use of industrial silicon is as an additive for non-ferrous alloys. Industrial silicon is also used as an alloying agent for strict requirements of silicon steel, as well as a deoxidizer for smelting special steel grades and non-ferrous alloys. After a series of industrial processes, industrial silicon can be processed into single crystal silicon for use in the electronics industry.
Industrial silicon is widely used in the preparation of alloys, the production of high-purity semiconductor materials, the production of solar cells, the production of temperature resistant materials, and organic silicon. In today's society, it has entered the era of informatization and has been widely used in scientific research, as well as various fields such as electrical, aviation, machinery, chemical, pharmaceutical, and national defense in industrialized countries.

2. Main equipment composition and overview:
Composition of industrial silicon furnace equipment
(1) Mechanical part:
The main equipment includes: furnace body, low smoke hood, smoke exhaust pipe, controller system (including electrode protection cylinder, electrode lifting oil cylinder, hydraulic pressure ring, suspension cylinder hydraulic lifting device), hydraulic brake, water-cooled cable
Hydraulic system, water-cooled copper pipe short net, furnace system equipment, etc.
(2) Auxiliary equipment includes: double beam bridge crane, suspended electric hoist, electrode hoist, ramming machine, etc.
(3) High and low voltage electrical equipment:
This set of electrical equipment mainly includes: high-voltage power supply system, low-voltage power supply system, low-voltage electrical control system, and electrode lifting and adjustment system.

3. Equipment composition
High voltage power supply system
Electric furnace transformer
Low voltage electrical equipment
This includes:
(1) Power supply cabinet
(2) PLC cabinet
(3) Hydraulic control cabinet
(5) Iron operation box
(6) Hydraulic control box
(7) Oil water cooler control console
(8) Pressure regulating control box
