Rock Wool Cold Slag Electric Furnace Rock Wool Electric Furnace

Place of Origin China
Brand Name Shaanxi Chengda
Certification ISO9001
Model Number Rock wool electric furnace
Minimum Order Quantity 1set
Price The price is negotiable
Delivery Time 5-8 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5 set per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Hourly Output 5-6 Tons Per Hour Tons Of Product Smelting Power Consumption ~1200°
Electric Furnace Power Factor COSØ ≥0.96 Annual Working Days 330
Equipment Actuation Rate 95% Flue Gas Emission Soot350mg/m²
Highlight

Cold Slag Electric Furnace

,

Electric Furnace Cold Slag

,

Rock Wool Electric Furnace

Leave a Message
Product Description

Process description:

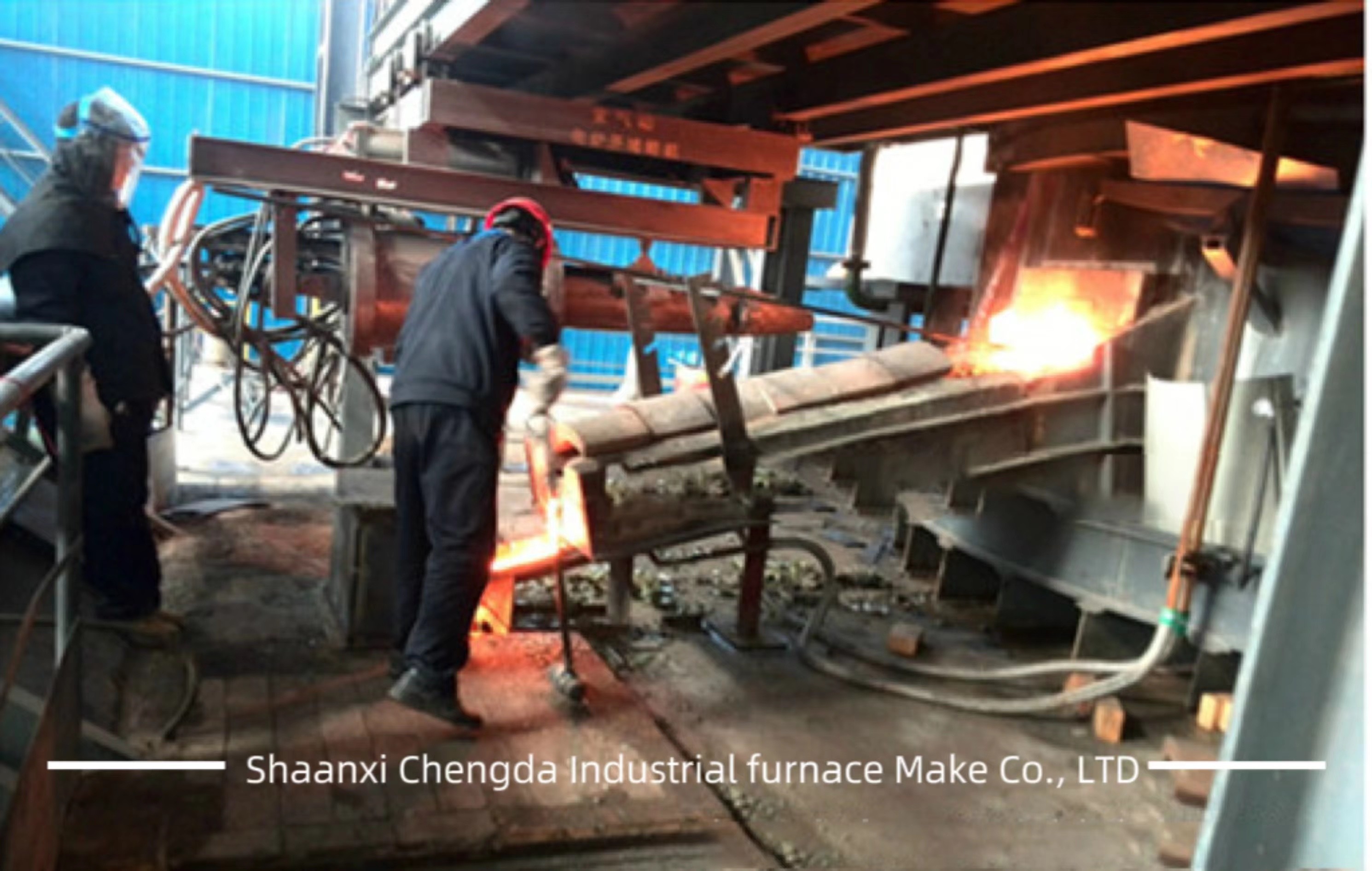

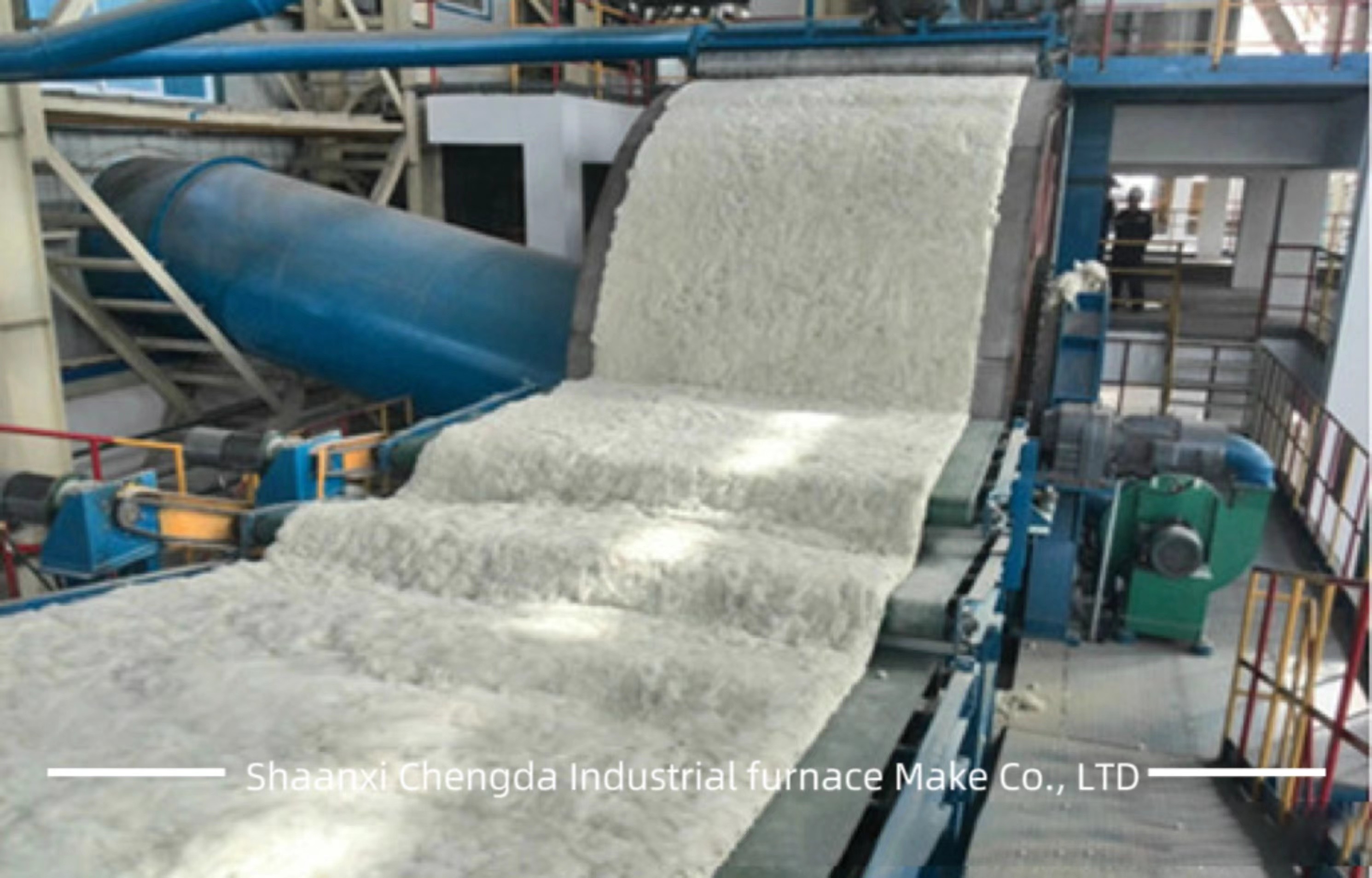

The main raw materials of rock wool electric furnace basalt ore and auxiliary materials, the prepared raw materials after drying system, through the feeding system into the high bunker of electric furnace storage. After measuring and weighing the raw materials through the distributing system, the raw materials are lowered into the furnace by the feeding pipe in the furnace, and the thin materials are continuously heated by electric power for submerged arc smelting. After melting to meet the temperature requirements, the thin materials are released through the slag outlet and enter the centrifuge to make rock wool products.

The flue gas of the electric furnace is cooled by the smoke pipe into the high-temperature cloth bag dust collector for treatment, and discharged after reaching the smelting emission standard.



Production of rock wool electric furnace equipment advantages:

(1) equipment operation flexibility, slag flow controllable, simple operation;

(2) Adopt advanced impedance control method and introduce high temperature feedback;

(3) high degree of automation, centralized control of the whole smelting process;

(4) Fast melting speed, can contact feeding, continuous discharge;

(5) smelting melting process without coke;

(6) The equipment performance is stable and can work continuously for 24 hours;

(7) Production waste can be recycled, resulting in less waste;

(8) The flue gas is easy to recover and the emission is small.



Product descriptions from the supplier:

Rock Wool Cold Slag Electric Furnace Rock Wool Electric Furnace 0



Intermediate Frequency Induction Furnace:

The medium frequency smelting furnace mainly used for melting and refining all kinds of scrap metal, iron, stainless steel,copper, aluminum. This furnace can smelting the scrap iron, like scrap auto parts, scrap steel bars, scrap screws, iron leftover,materials etc.
