Ac Rock Wool Furnace (HQ New)

Place of Origin Shaanxi, China
Brand Name Shaanxi Chengda
Certification ISO9001
Model Number Ac rock wool furnace
Minimum Order Quantity 1set
Price The price and product specifications can be agreed upon.
Delivery Time 10-15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5set per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Furnace Capacity 55t Electrode Diameter Φ450mm
Transformer Rated Capacity Transformer Rated Capacity 7000 KVA Shelf Life Of Core Components 1year
Output Per Hour 5~6ton Country Of Origin Shaanxi China
Highlight

55t ac rock wool furnace

,

ac rock wool furnace 55t

,

ac rock wool furnace

Leave a Message
Product Description

Ac rock wool furnace (HQ)



Product use and process overview:

  This equipment is the most stable and continuous production of rock wool advanced equipment. The most common basalt, dolomite, slag and auxiliary materials are used, proportioned according to a certain proportion, heated to a certain temperature, the solution is stratified, and the slag liquid is transported to the centrifuge through the control of the flow port size to continuously produce rock wool products.



Product production under the graphic:

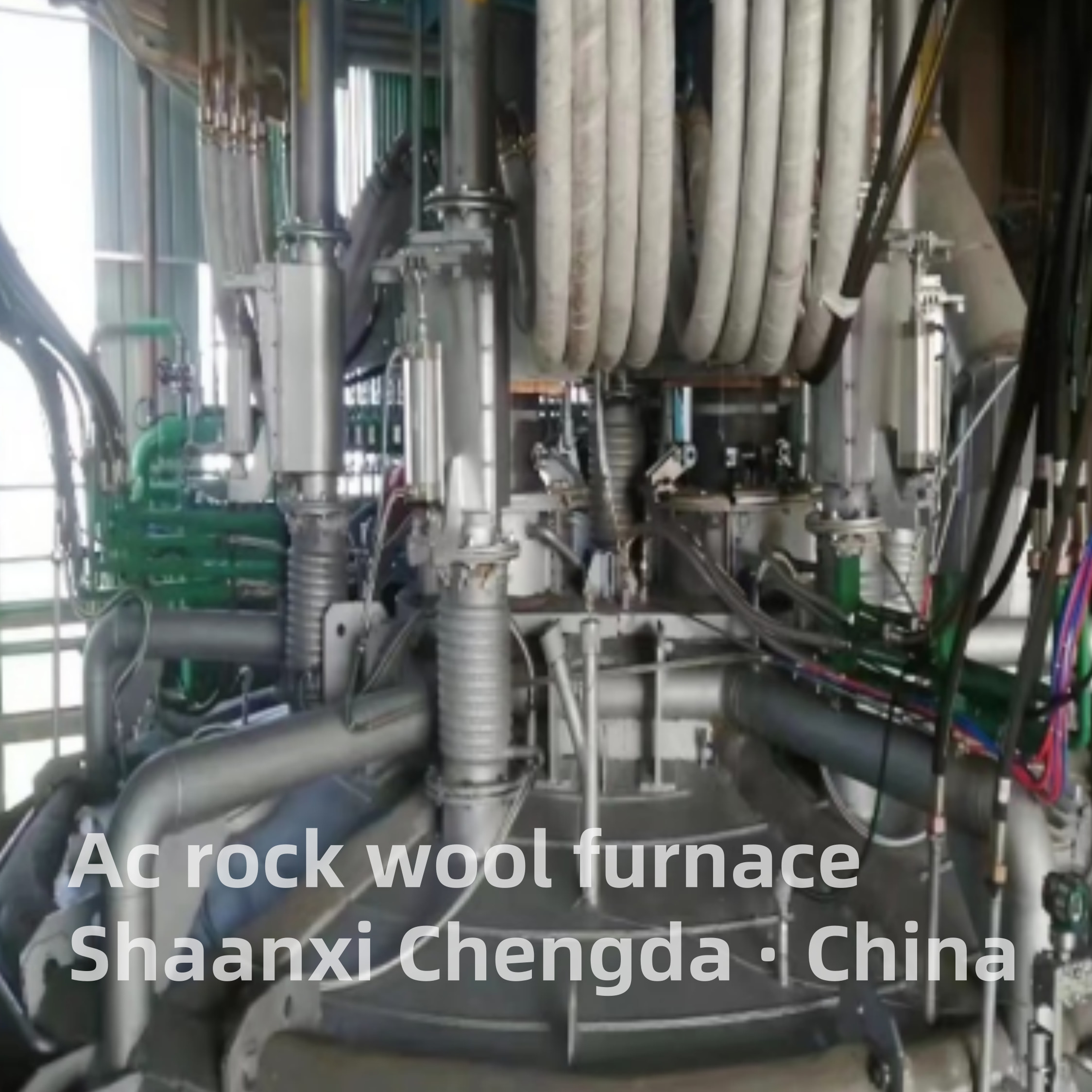

Ac Rock Wool Furnace (HQ New) 0

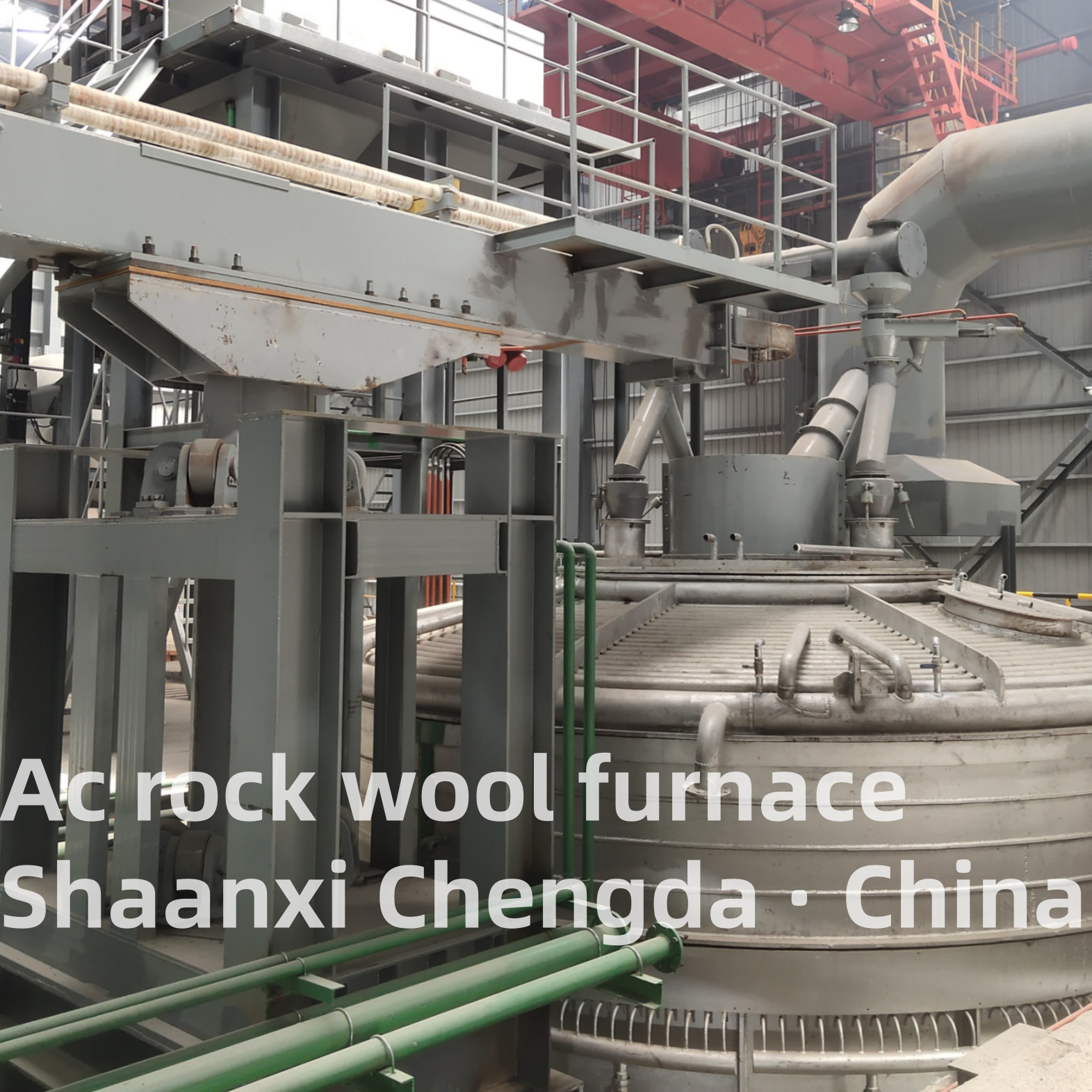

Ac Rock Wool Furnace (HQ New) 1



Description of structural characteristics:

1) The operation of the equipment is flexible and simple, the slag flow is controllable, and the slag is sustainable;
(2) Adopt advanced impedance control method and introduce temperature feedback into control;
(3) high degree of automation, centralized control of the whole smelting process;
(4) Fast melting speed, continuous feeding;
(5) The equipment has stable performance and can work continuously
(6) Less smoke pollution and easy recovery of smoke;



Performance index:
1 Output per hour (finished product) 5 ~ 6 tons
2 Power consumption per ton of product (finished product) ≤1100KWh/T
3 Electric furnace long-term insulation power consumption 700-800KWh/h



Product process diagram:

Ac Rock Wool Furnace (HQ New) 2



Equipment component:

1.batching system

2.Charging system

3.Storage bin

4.mixed drying system

5.blanking system

6.Electric furnace power supply system

7.short network system

8.Electrical operating system

9.hydraulic control system

10.Water cooling system

11.electric furnace smelting system

12.iron and slag control

13.Lining laying
