Mineral Wool, Rock Wool Electric Furnace - DC Hot Melt Slag Electric Furnace (New)
| Place of Origin | Shaanxi, China |
|---|---|
| Brand Name | Shaanxi Chengda |
| Certification | ISO9001 |
| Model Number | DC Hot Melt Slag Electric Furnace |
| Minimum Order Quantity | 1set |
| Price | The price and specifications are negotiable |
| Delivery Time | 8-15work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 3set per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Furnace Capacity | 50t | Core Component Shelf Life | 1year |
|---|---|---|---|
| Provenance | Shaanxi, China | Bottom Electrode Diameter | Φ700 |
| Highlight | Mineral Wool Electric Furnace,Rock Wool Electric Furnace,Hot Melt Slag Electric Furnaces |
||
Product Description

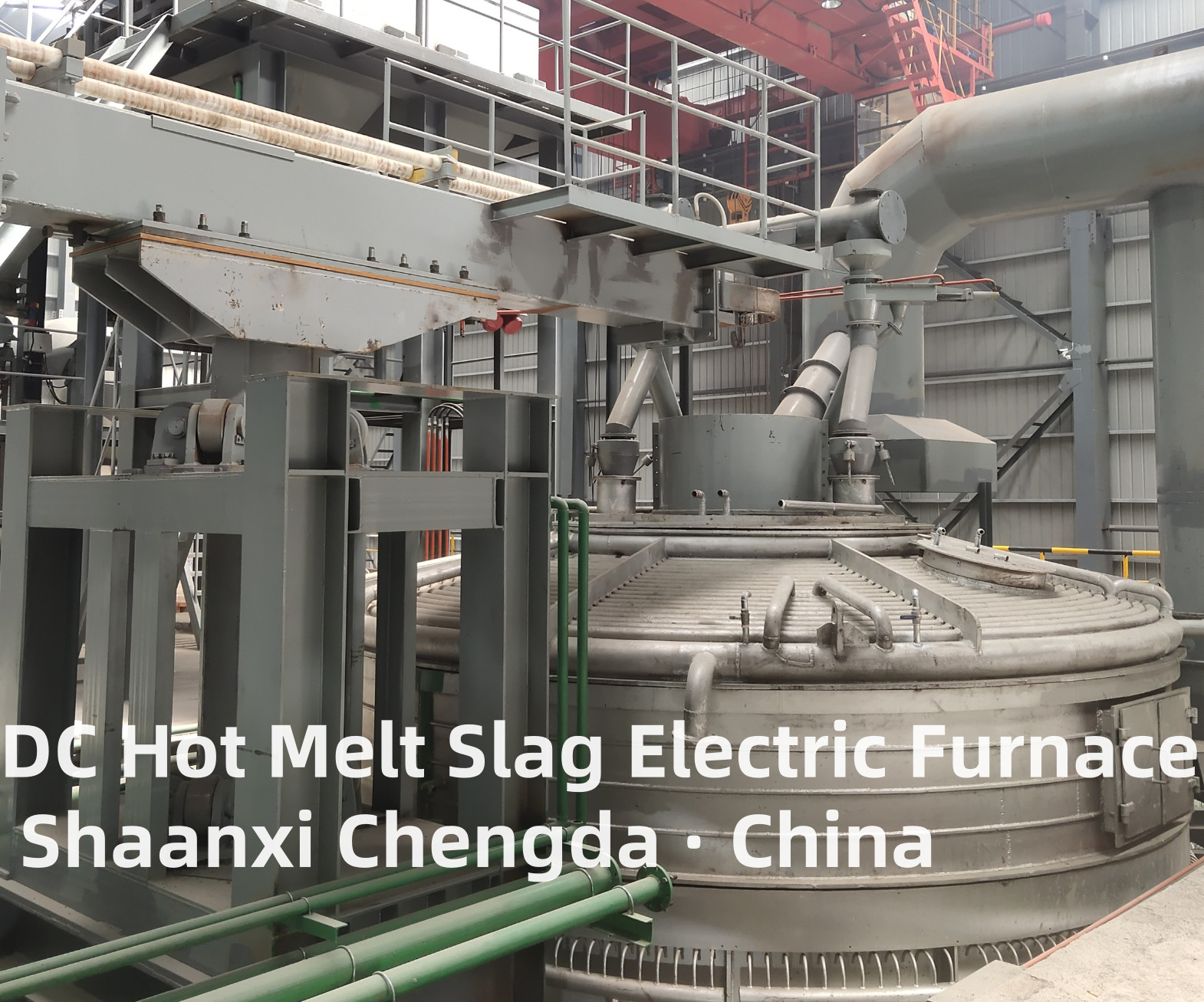

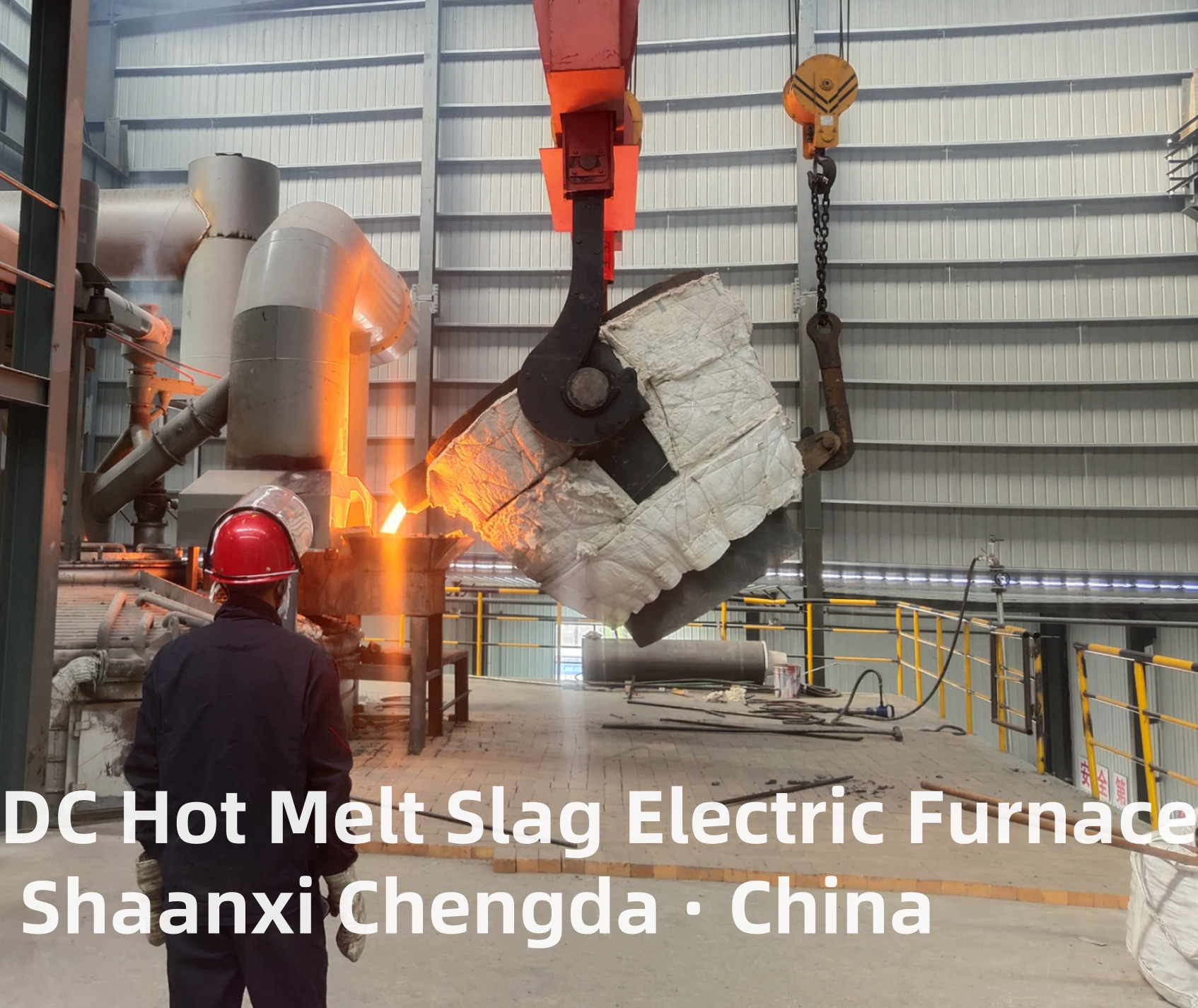

Mineral wool, rock wool Electric Furnace - DC Hot Melt Slag Electric Furnace
Application of equipment:
This equipment is used to melt the production of rock wool basalt, slag, dolomite and auxiliary materials, after heating homogeneous insulation, control the temperature and flow of the slurry transported to the centrifuge, continuous production of rock wool products.
Product process description:
Basalt ore and auxiliary materials are the main raw materials of rock wool electric furnace. After drying by drying system, the prepared raw materials are loaded into the high bin of electric furnace through feeding system for storage. After measuring and weighing the raw materials through the distributing system, the raw materials are lowered into the furnace by the feeding pipe in the furnace, and the thin materials are continuously heated by electric power for submerged arc smelting. After melting to meet the temperature requirements, the thin materials are released through the slag outlet and enter the centrifuge to make rock wool products.
Structural features:
Compared with AC furnaces, DC furnaces have the following advantages:
1. Save electrode; (Energy-saving electrode consumption is 40% to 60% of the AC furnace)
2. Save energy; (10%-15% lower power consumption per ton of cotton than AC furnace)
3. The temperature of the reaction zone of the molten pool is high, the furnace eye is easy to open, and the iron is smooth.
4. It has low flicker effect and noise, which is very beneficial to the power grid and the operator, and its flicker effect is only 50% to 70% of the AC electric furnace, and the noise during submerged arc operation is more than 20dB lower than that of the AC electric furnace.
Main parameters and performance:
1 Furnace capacity ~ 50t
2 Shell diameter Φ5200 ~Φ5600
3 The height of the shell is 3500 mm
4 Cathode electrode diameter Φ500mm
5 Bottom electrode diameter Φ700
6 Maximum electrode stroke 1800 mm
7. Dc transformer rated capacity 4000 KVA
Performance index:
1 Output per hour (finished product) 5 ~ 6 tons
Power consumption of 2 tons of cotton 300-350KWh/T;
3. Ton of cotton electrode consumption: 1.5-2.5Kg/t
Process diagram below:
