Mineral Wool, Rock Wool Electric Furnace - AC Rock Wool Furnace(New)

Place of Origin Shaanxi, China
Brand Name Shaanxi Chengda
Certification ISO9001
Model Number AC rock wool furnace
Minimum Order Quantity 1Set
Price The price and specifications are negotiable
Delivery Time 8-10work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 3set per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Furnace Capacity 55t Shell Diameter Φ6000
Core Component Shelf Life 1year Transformer Rated Capacity 7000 KVA
Highlight

Electric Furnace Mineral Wool

,

Electric Furnace Rock Wool

,

AC Rock Wool Electric Furnaces

Leave a Message
Product Description

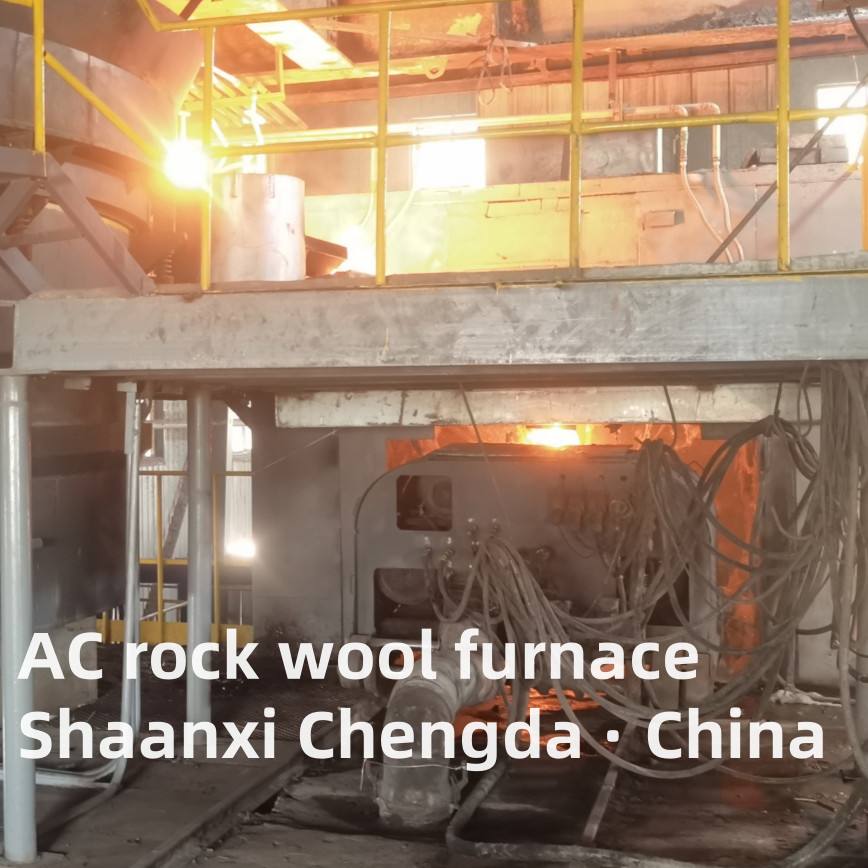

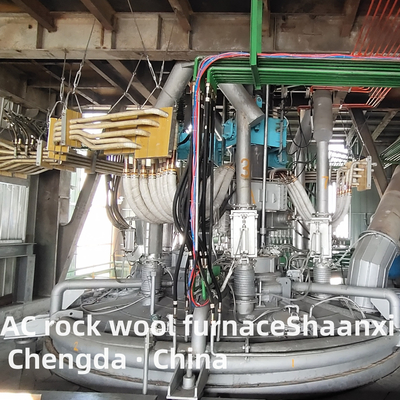

Mineral wool, rock wool electric furnace - AC rock wool furnace



Application of equipment:

  This equipment is used to melt the production of rock wool basalt, slag, dolomite and auxiliary materials, after heating homogeneous insulation, control the temperature and flow of the slurry transported to the centrifuge, continuous production of rock wool products.



Process overview:

  Basalt ore and auxiliary materials are the main raw materials of rock wool electric furnace. After drying by drying system, the prepared raw materials are loaded into the high bin of electric furnace through feeding system for storage. After measuring and weighing the raw materials through the distributing system, the raw materials are lowered into the furnace by the feeding pipe in the furnace, and the thin materials are continuously heated by electric power for submerged arc smelting. After melting to meet the temperature requirements, the thin materials are released through the slag outlet and enter the centrifuge to make rock wool products.



Structural features:

(1) The operation flexibility of the equipment is strong, the slag flow is controllable, the operation is simple;
(2) Adopt advanced impedance control method and introduce temperature feedback;
(3) high degree of automation, centralized control of the whole smelting process;
(4) Fast melting speed, continuous feeding, continuous discharge;
(5) smelting melting process without coke;
(6) The equipment performance is stable and can work continuously for 24 hours;
(7) Production waste can be recycled, resulting in less waste;
(8) The flue gas is easy to recover, and the emission is small (mainly for soot 350mg/m²);



Schematic diagram of process flow:

Mineral Wool, Rock Wool Electric Furnace - AC Rock Wool Furnace(New) 0



Main parameters and indicators:

1 Furnace capacity ~ 55t
2 Shell diameter Φ6000
3 Shell height 4000 mm
4 Electrode diameter Φ450mm
5 Electrode center circle Φ1450mm
6. Transformer rated capacity 7000 KVA

Performance index:
1 Output per hour (finished product) 5 ~ 6 tons
2 Power consumption per ton of product (finished product) ≤1100KWh/T
3 Electric furnace long-term insulation power consumption 700-800KWh/h
