LF Furnace 20-150t Ladle Refining Furnace LF Furnace

Place of Origin China
Brand Name Shaanxi Chengda
Certification ISO9001
Model Number Low frequency 70t
Minimum Order Quantity 1set
Delivery Time 8-12work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 units per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Capacity 20-150t Transformer Capacity 12500kva
Temperature Rise Rate Of Molten Steel 2-3.5℃/min Ladle Diamete 3200mm
Fuel Electric Production Capacity 5set Per Month
Highlight

150t lf furnace

,

20t lf furnace

,

150t ladle furnace refining

Leave a Message
Product Description

LF furnace 20-150t Ladle refining furnace LF furnace


Main uses: ladle refining furnace can be used for refining molten steel of primary refining furnace (electric arc furnace, open hearth furnace, converter), which is an important metallurgical equipment to meet continuous casting and continuous rolling.



Application:

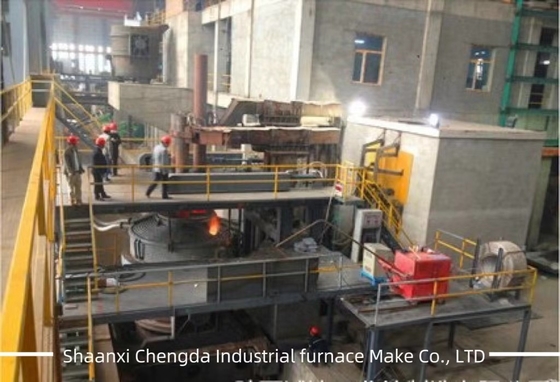

LF Furnace 20-150t Ladle Refining Furnace LF Furnace 0

Ladle Refining Furnace is used to refining the molten steel from the primary melting furnace (electric arc furnace, induction furnace, converter and etc.), meanwhile have the function of adjusting molten steel temperature, and be a
buffer of the whole process. It is described to be the soul of the best production line ( primary melting furnace + LF+ CCM). It is widely used in the refining of kinds of steel grade, such as Ball bearing steel, alloy structural steel, tool steel, spring steel, carbon steel and etc.

Equipment features: equipment with atmospheric arc heating, vacuum degassing, blowing argon stirring, blowing oxygen feed wire, atmospheric pressure or vacuum feeding, temperature measurement, sampling, TV camera, frequency observation and other functions.


Equipment composition:
1. Ladle and ladle car;
2. Heating device (electrode control mode: manual control or microcomputer automatic control. Energy-saving short mesh and conductive cross arm are used);
3. Vacuum and detection system;
4. Hydraulic and control valve system:
5. Argon, oxygen, compressed air and cooling water systems;
6. Electrical control system (PLC control and CRT image imitation display)
7. High voltage and strong current system;
8. Large current lines.



Specification:

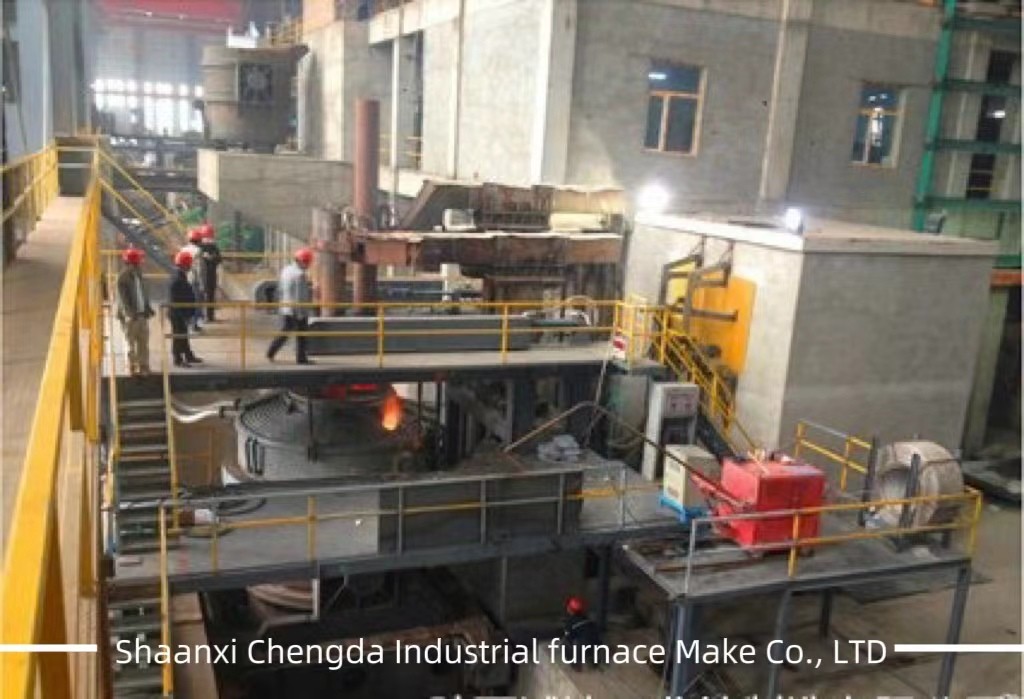

LF Furnace 20-150t Ladle Refining Furnace LF Furnace 1



Our Services:



1. Customize according to your requirements and provide you with an effective quotation.

2. We have professional engineers to design the plan for you.

3. Our team will provide professional advice and help for your whole project.

4. Our factory is always ready to welcome field visits. 5. Ensure high quality after-sales service.
