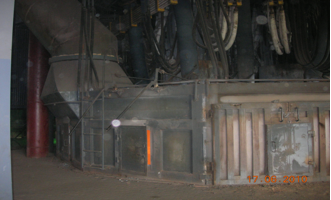

25000KVA Three Electrode AC Titanium Slag Smelting Furnace for Titanium Dioxide Feedstock Production
| Place of Origin | Shaanxi, China |
|---|---|
| Brand Name | Shaanxi Chengda |
| Certification | ISO 9001:2015 |
| Model Number | CD-TSF-25000AC |
| Minimum Order Quantity | 1 Set |
| Price | USD 300,000 - 1,500,000 / Set (negotiable by configuration) |
| Packaging Details | Furnace shell in seaworthy steel frame with anti-rust treatment, electrodes and bus bars in export wooden cases, refractory and accessories palletized with packing list |
| Delivery Time | 2 months |
| Payment Terms | T/T,L/C,D/A,Western Union, |
| Supply Ability | 6 complete titanium slag furnace lines per year |
Product Details
| Rated Capacity | 25000 KVA | Furnace Type | Semi-closed AC Submerged Arc Furnace, 3 Electrodes, Hydraulic Tilting |
|---|---|---|---|
| Electrode Diameter | 1250 Mm, 3 Pieces, Self-baking | Secondary Voltage | 190-270 V |
| Furnace Shell Diameter | 9200 Mm | Operating Temperature | 1650-1750 C |
| TiO2 Content In Slag | 74-78% | Annual Output | 60000-70000 T/a Titanium Slag |
| Specific Power Consumption | 2300-2600 KWh/t Slag | Warranty | 12 Months |
| Highlight | 25000KVA titanium slag smelting furnace,three electrode AC smelting furnace,ferroalloy smelting equipment |
||
Product Description
25000KVA Three Electrode Titanium Slag Smelting Furnace
This 25000KVA three electrode AC furnace smelts ilmenite into titanium slag for the sulfate titanium dioxide route. Titanium slag is highly conductive at 1650 °C and above, so electrode immersion depth and power input per unit area are controlled tightly to keep the slag bath open and the iron phase separated. The semi-closed water-cooled hood holds the bath under controlled negative pressure, and the tilted tapping launder discharges slag and metal into separate ladles in one heat cycle.
Titanium Slag Process Advantages
- Designed for conductive TiO2 slag: wide electrode pitch and adjustable immersion depth prevent current channelling and keep the bath temperature uniform at 1650-1750 °C.
- High slag grade: controlled reduction time and charge ratio give TiO2 74-78% slag suitable for sulfate route pigment feedstock, with iron content below 8%.
- Semi-closed hood: water-cooled panels and negative pressure operation capture the fume, protect the working platform and cut heat radiation to the tapping floor.
- Short tap cycle: hydraulic tilting shell plus twin launders separate slag and pig iron in one pour, saving 15-20 minutes per heat.
- Proven regulation: PLC electrode impedance control holds the set power load within ±3% and reduces electrode breakage during charge collapses.
Technical Parameters
| Parameter | Value |
|---|---|
| Rated transformer capacity | 25000 KVA |
| Primary voltage | 35 kV / 110 kV |
| Secondary voltage | 190-270 V, 3-phase |
| Electrode diameter | 1250 mm self-baking electrode, 3 pieces |
| Furnace shell diameter | 9,200 mm |
| Bath depth | 2,700 mm |
| Operating temperature | 1650-1750 °C |
| TiO2 content in slag | 74-78% |
| Specific power consumption | 2,300-2,600 kWh/t slag |
| Annual output | 60,000-70,000 t/a titanium slag |
| Cooling water flow | 480 m³/h at 0.4 MPa |
| Control system | PLC + HMI, electrode impedance regulation, water and temperature interlock |
Scope of Supply
- Furnace transformer, high current short net and water-cooled cable
- Furnace shell, water-cooled wall and semi-closed hood
- Three electrode holders, pressure rings and slipping devices
- Hydraulic tilting system with twin tapping launders
- Cooling water manifold with flow and temperature monitoring
- PLC cabinet, HMI and instrument package
- One year wear spare parts
Commissioning and Service
- Charge calculation support for ilmenite of different grades
- Foundation, layout and utility consumption drawings
- Engineer supervision for installation and first tapping
- 12 months warranty, remote diagnostics and spare parts supply
Typical Applications
Titanium slag plants feeding sulfate route TiO2 pigment production, ilmenite upgrading projects in Vietnam, Mozambique and China, and existing smelters that need a mid-size AC furnace for acid-soluble slag.
Tell us your ilmenite grade, target TiO2 content in slag and annual tonnage, and we will return the matched furnace capacity, electrode scheme and budget quotation within 3 working days.
