DCS Automation Control System Cabinet Assembly for Electric Arc Furnace Smelting Line
| Place of Origin | Shaanxi, China |
|---|---|
| Brand Name | Shaanxi Chengda |
| Certification | ISO9001 |
| Model Number | EAF-DCS-Cabinet |
| Minimum Order Quantity | 1 Set |
| Price | Price and specific model specifications can be agreed upon. |
| Packaging Details | Export-grade wooden case with shock-proof packing |
| Delivery Time | 2 months |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union, |
| Supply Ability | 30 Sets per Month |
Product Details
| Control Architecture | Redundant PLC Hot Standby | Scan Cycle | 10 Ms High Speed |
|---|---|---|---|
| Communication | Fieldbus / Ethernet Remote I/O | Redundancy | Dual CPU / Dual Power |
| Operating Voltage | 220V AC / 24V DC | Protection Rating | IP54 Cabinet |
| Application | Electric Arc Furnace (EAF) Smelting | ||
| Highlight | DCS automation control cabinet,electric arc furnace control system,smelting line automation assembly |
||
Product Description
DCS Automation Control System Cabinet for Electric Arc Furnace Smelting Line
The DCS automation control system cabinet delivers full-line distributed control for electric arc furnace (EAF) smelting operations. Built around a redundant hot-standby architecture, it centralizes electrode regulation, power control, hydraulic positioning and process monitoring into one reliable platform.
Key Selling Points
- Complete EAF DCS Control Cabinet: Integrated distributed control hardware engineered specifically for electric arc furnace smelting lines.
- Redundant Hot Standby Automation: Dual CPU, dual power and dual network paths ensure continuous operation without process interruption.
- Real Time Smelting Process Control: Fast scan cycle keeps electrode positioning and arc power stable, improving energy efficiency and melt quality.
Technical Highlights
- Redundant PLC hot-standby controller with bumpless switchover
- High-speed fieldbus network for distributed remote I/O
- Electrode regulation loop with hydraulic servo output
- Open communication interfaces for easy integration with existing lines

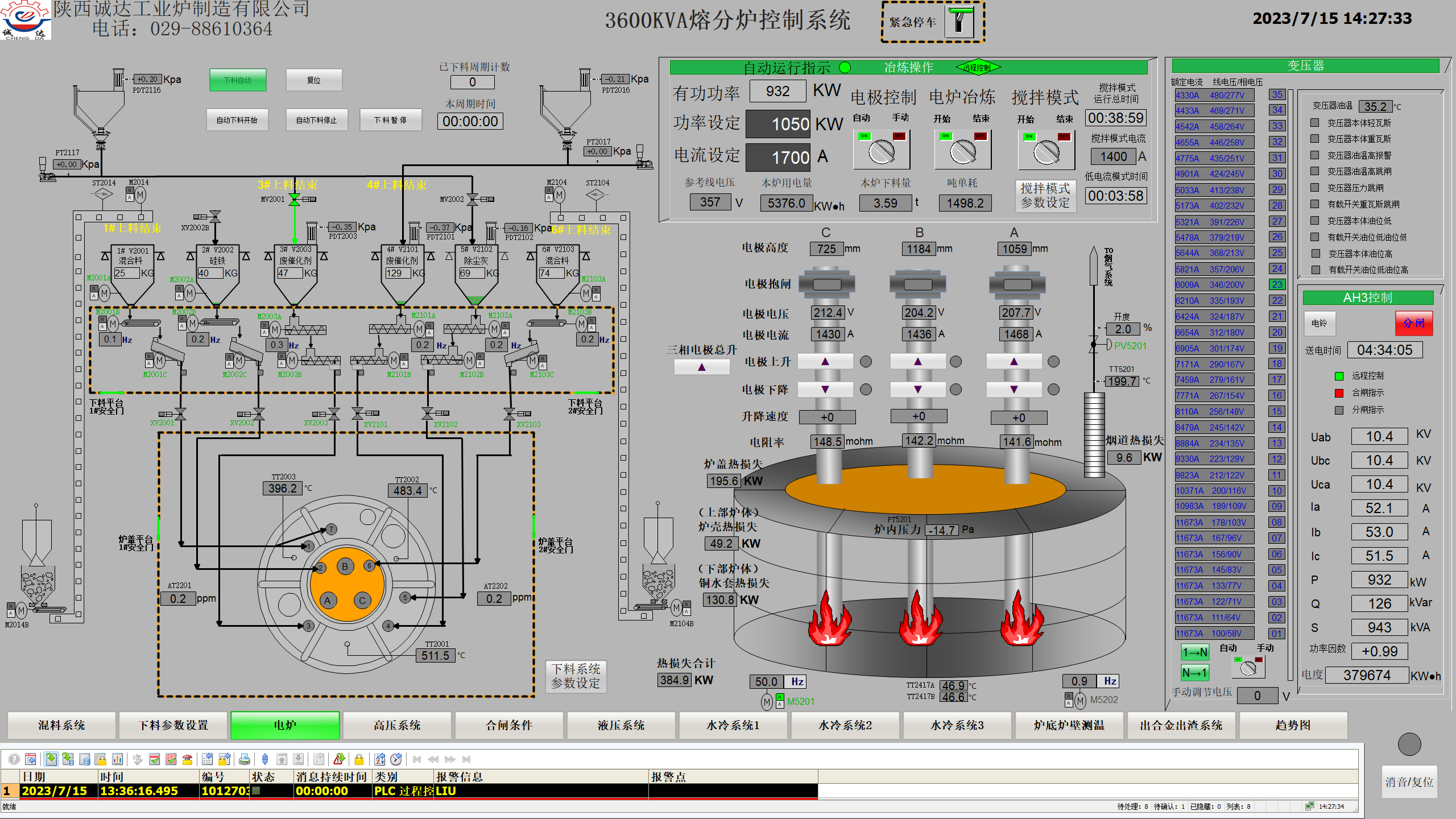

- Industrial HMI operator station with trend and alarm management
Applications
Designed as a replacement or upgrade spare part for electric arc furnace, ferroalloy furnace and nonferrous smelting equipment control systems.
Contact us for model selection, drawings and a quotation.
