Precision Innovative Water Cooled Furnace Roof For Optimal Cooling Efficiency

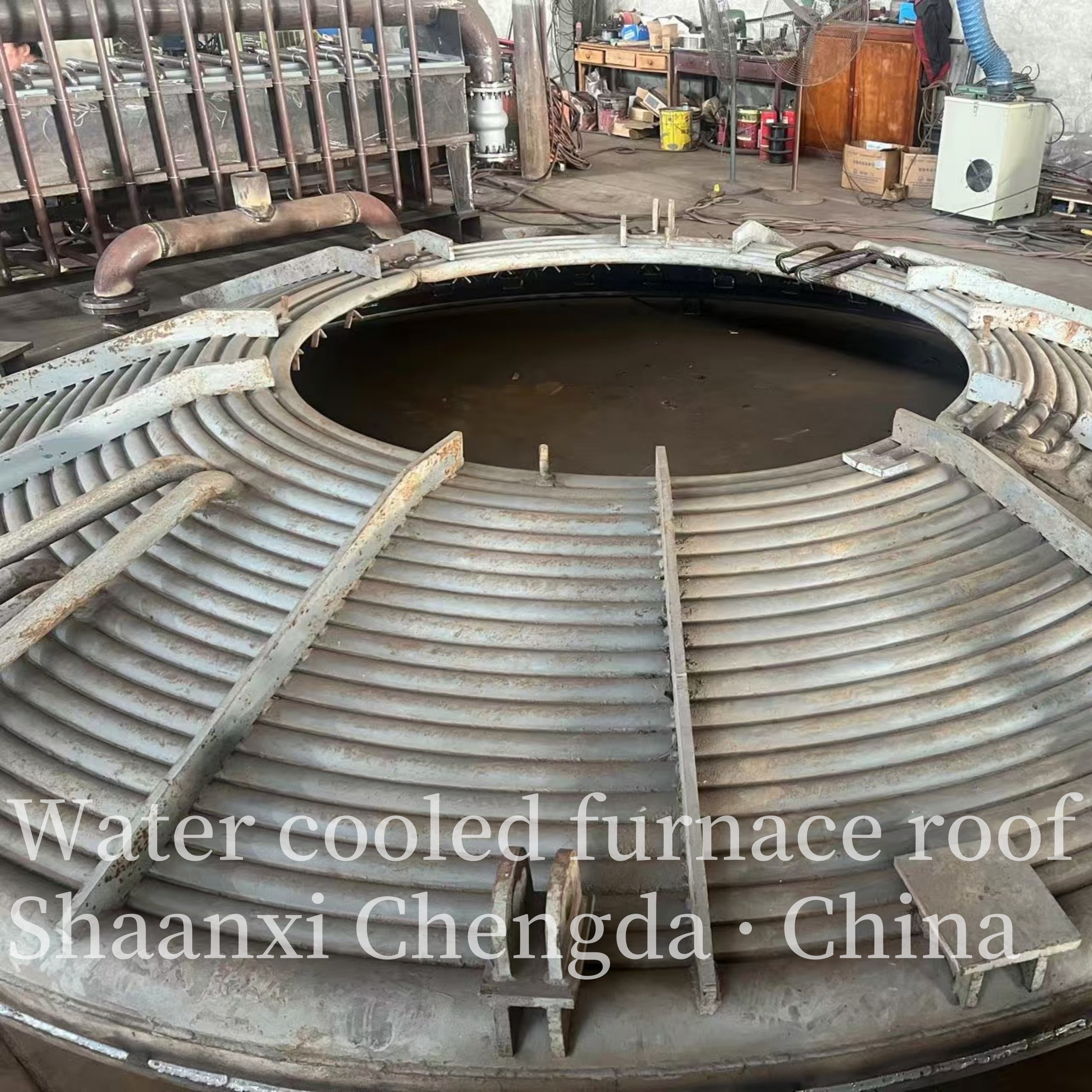

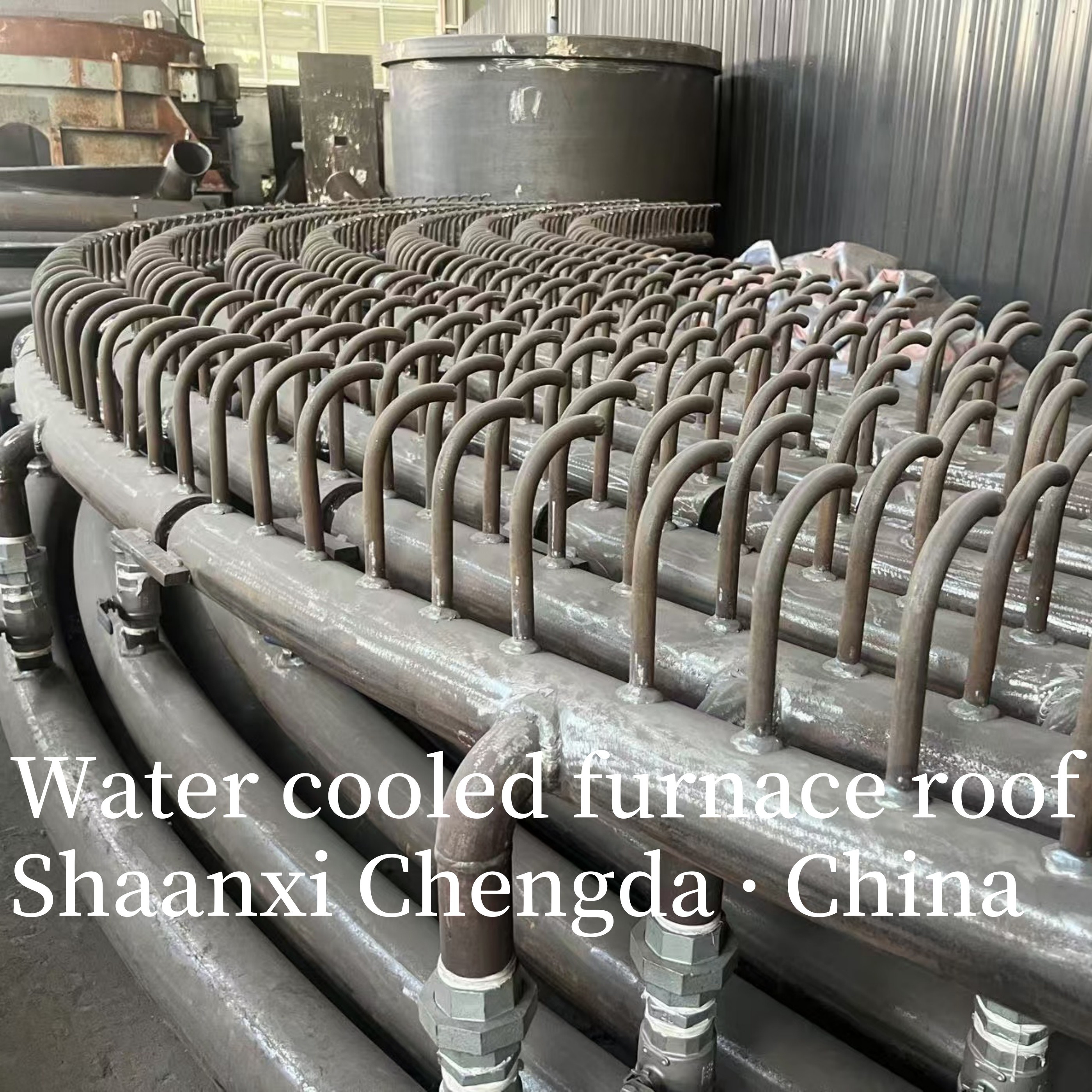

Water cooled furnace roof

Performance introduction:

   The use of water cooling structure such as water cooling box, water pipe, etc. to make the electric arc furnace cover, can significantly improve the service life of the furnace cover technology.

Water cooling furnace cover structure diagram:

Water cooled furnace cover: It is the key component of ladle refining furnace.
Because the smelting effect of ladle refining furnace depends largely on the atmosphere control in the furnace cover. In view of the problems existing in the production of 180t [F refining furnace] water-cooled furnace cover, based on the consideration of the cooling water distribution system, the structure of the total inlet ring pipe is redesigned to ensure that the flow rate of the water-cooled furnace cover cooling water system meets the technical requirements.
The optimization of water intake point distribution of close row pipe not only meets the requirement of uniform cooling of all parts of the furnace cover, but also solves the problem of longitudinal crack and leakage of the total inlet ring pipe of the furnace cover during refining production.
