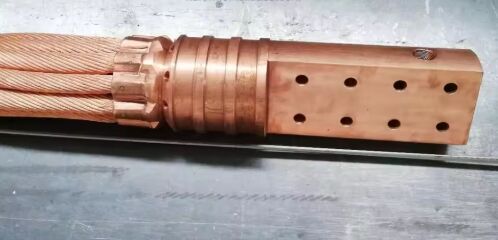

Industrial Grade Water Cooled Power Cable for Electric Arc Furnace (EAF) Ladle Refining Furnace (LRF) Application
| Place of Origin | China |
|---|---|
| Brand Name | Shaanxi Chengda |
| Certification | ISO 9001 |
| Model Number | Negotiate based on equipment processing capacity |
| Minimum Order Quantity | 1 unit |
| Price | The price will be negotiated based on the technical requirements and supply scope of Party A |
| Packaging Details | Discuss according to the specific requirements of Party A |
| Delivery Time | 1 month |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | Complete production supply chain, supply on time, and meet quality standards |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | Industrial water cooled power cable,EAF LRF power cable,Electric arc furnace cable with warranty |
||
|---|---|---|---|
Product Description
The following is an introduction to it:
- Main Features
- High Conductivity: It uses special materials and structural designs to reduce cable resistance, thereby enhancing power transmission efficiency.
- Excellent Cooling Performance: It is equipped with a water - cooling system that can effectively dissipate the heat generated by the current, preventing the cable from overheating and ensuring its normal operation in high - temperature environments.
- Good Corrosion and Oxidation Resistance: The metal parts of the cable are usually made of stainless steel or special alloys, and the outer sheath is made of high - temperature - resistant materials, which can maintain stable performance in harsh environments.
- Structural Design
- Conductor: Usually made of high - conductivity materials such as tinned copper stranded wire or enameled wire. The tinned copper stranded wire has good corrosion resistance, and the enameled wire can reduce the skin effect, improve the efficiency of current transmission, and is soft and flexible, with a small bending radius.
- Outer Sheath: It is made of a synthetic rubber tube with a reinforced cloth layer, which has the characteristics of high pressure resistance, high temperature resistance, and good bending performance.
- Electrode: The electrode is usually processed from a whole copper bar, and the surface is passivated or tinned to improve corrosion resistance and conductivity. The end of the electrode is often provided with a lifting ring for easy on - site installation, and the connection between the hose and the electrode is fastened by two stainless - steel clamps to ensure reliable sealing.
- Performance Requirements
- Electrical Performance: The breakdown voltage of the outer sheath rubber tube of the water - cooled cable is generally required to be not less than 2300V, and the maximum surface temperature rise (including the connection part) is not more than 40K.
- Mechanical Performance: For example, the test tension of a 200mm² nominal cross - sectional area is 15KN, and on this basis, the test tension value increases by 5KN for every 100mm² increase in the nominal cross - sectional area of the water - cooled cable.
- Sealing Performance: The outer sheath rubber tube should be able to withstand a working water pressure of not less than 0.6MPa, and there should be no leakage of cooling water at the interface with the electrode.
- Application Scenarios
- Steel and Non - Ferrous Metals Industry: It is widely used in arc furnace equipment in steel and non - ferrous metals smelting to transmit high - current electrical energy.
- Casting Industry: In the casting process, it is used in arc furnaces to provide power for metal melting.
- Other Industries: It can also be used in occasions requiring high - temperature, strong corrosion, or high - voltage environments, such as the electrolysis industry and chemical reactors.
-
Technical Parameters of Water Cooled Power Cable for Electric Arc Furnace
The technical parameters of water-cooled power cables for electric arc furnaces are customized according to furnace capacity (e.g., 10t, 30t, 100t EAF) and operating current. Below are the standard technical parameters for common models, along with core performance indicators:1. Basic Electrical Parameters
Parameter Specification Remarks Nominal Cross-sectional Area 150 mm² ~ 3000 mm² Common models: 400 mm², 800 mm², 1200 mm², 2000 mm² Rated Current 1500 A ~ 15000 A Positive correlation with cross-sectional area; e.g., 800 mm² cable supports 5000 A continuous current Rated Voltage 1000 V ~ 3000 V Suitable for medium-voltage EAF power supply systems Breakdown Voltage of Outer Sheath ≥ 2300 V (AC, 50Hz, 1min) No breakdown or flashover allowed Insulation Resistance ≥ 50 MΩ Measured at 25℃, relative humidity ≤ 85% Surface Temperature Rise ≤ 40 K Including cable body and connection terminals; ambient temp. 25℃ 2. Cooling System Parameters
Parameter Specification Remarks Working Water Pressure 0.4 MPa ~ 0.8 MPa Recommended operating pressure: 0.5 MPa Water Flow Rate 8 L/min ~ 50 L/min Depends on cable size; e.g., 1200 mm² cable requires ≥ 20 L/min Cooling Water Quality Conductivity ≤ 50 μS/cm; pH 6.5 ~ 8.5 Deionized water or soft water recommended to prevent scaling Sealing Performance No leakage under 1.2 times working pressure Test duration: 30 min 3. Mechanical Parameters
Parameter Specification Remarks Tensile Strength 15 KN (200 mm²); 20 KN (300 mm²); 25 KN (400 mm²) Increase by 5 KN for every 100 mm² expansion Bending Radius ≥ 3 × cable outer diameter (static); ≥ 5 × cable outer diameter (dynamic) Meets on-site installation and frequent bending requirements Operating Temperature Range -20℃ ~ +120℃ Adapts to high-temperature EAF workshop environments Service Life ≥ 10,000 hours Under rated working conditions 4. Structural Parameters
Component Material & Specification Conductor Tinned copper stranded wire (class 5 soft conductor) Outer Sheath Chloroprene rubber (CR) or ethylene propylene diene monomer (EPDM) with reinforced fabric layer Electrode Terminal Solid copper bar (T2 copper) with tin-plated surface; equipped with lifting ring Connection Clamp Stainless steel 304 double-clamp structure Water Inlet/Outlet G1/2" ~ G1" threaded interface; compatible with industrial quick connectors 5. Applicable Furnace Capacity Matching
Cable Model (Cross-sectional Area) Applicable EAF Capacity 400 mm² ~ 800 mm² 5t ~ 20t 1000 mm² ~ 1600 mm² 30t ~ 60t 1800 mm² ~ 3000 mm² 80t ~ 150t
