Full Water-Cooled Electric Arc Furnace

  • Full Water-Cooled Electric Arc Furnace
Place of Origin China
Brand Name Shaanxi Chengda
Certification ISO 9001
Model Number Negotiate based on equipment processing capacity
Minimum Order Quantity 1 unit
Price The price will be negotiated based on the technical requirements and supply scope of Party A
Packaging Details Discuss according to the specific requirements of Party A
Delivery Time 2 months
Payment Terms L/C,T/T,Western Union
Supply Ability Complete production supply chain, supply on time, and meet quality standards
Product Details
Environment Attribute DC Electric Furnace Control System PLC Or Computerized
Powersource Electricity / Gas / Combination Furnace Roof Type Swing Or Stationary
Technology Certification ISO9001 Furnace Tapping System Bottom Tapping Or Side Tapping
Weight Depends On Equipment Size, Typically Several Tons Temperature 3000~5000℃
Furnace Shell Material Refractory Bricks Or Water-cooled Panels Keyword Melting Funace
Highlight

water-cooled electric arc furnace

,

steelmaking electric arc furnace

,

industrial water-cooled furnace
Leave a Message
Product Description

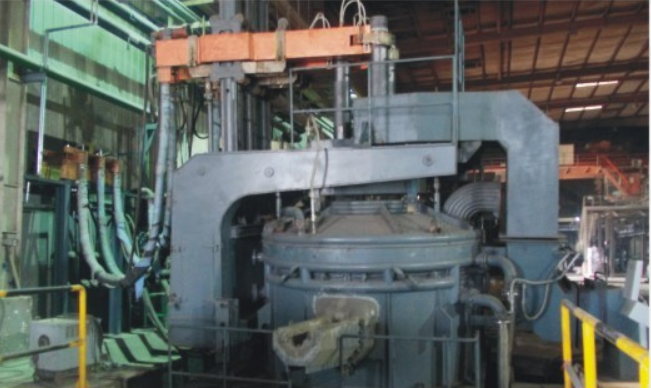

Full Water-Cooled Electric Arc Furnace


Equipment & Parameter Introduction


Product Overview


Full water-cooled electric arc furnace is a mainstream high-efficiency steelmaking furnace in modern industry. Key components including furnace shell, furnace wall, furnace roof and electrode cross arm adopt full water-cooled structure design, abandoning large-area refractory brick masonry. It features high temperature resistance, long service life, low maintenance, high smelting efficiency, energy saving and environmental protection, suitable for scrap steel smelting, special steel casting and short-process steelmaking production lines.

1. Main Equipment Composition


  1. Full Water-Cooled Furnace Body

    Adopt split-type full water-cooled furnace shell and water-cooled furnace wall with closed circulating water-cooled interlayer structure, greatly reducing the use of refractory materials, with high temperature erosion resistance and low deformation.

  2. Full Water-Cooled Furnace Roof

    Integral annular full water-cooled structure, equipped with central electrode hole and side dust removal & smoke exhaust interface, featuring good sealing performance, fast cooling and long service life.

  3. Electrode Lifting System

    Full water-cooled conductive cross arm, servo hydraulic / electric lifting drive, with sensitive adjustment, stable electric arc and low energy consumption.

  4. Tilting & Charging Mechanism

    Hydraulic furnace tilting, furnace roof lifting and rotating mechanism, matched with top-mounted scrap steel basket for fast charging and high automation.

  5. Electrical Control System

    High-power electric arc furnace transformer, low-impedance short network, PLC intelligent control system, supporting one-key start-stop, automatic arc stabilization and full interlock protection.

  6. Auxiliary Systems

    Closed circulating water cooling system, dust removal & smoke exhaust system, oxygen & carbon injection lance system, hydraulic control system, with complete supporting equipment.


2. Core Performance Advantages


  • Full water-cooled structure: Eliminate large-area refractory masonry, greatly reduce refractory consumption and extend maintenance cycle.
  • High temperature & erosion resistance: Forced water cooling reduces furnace body deformation and doubles service life.
  • High smelting efficiency: High thermal efficiency, fast melting speed and shortened single-heat smelting cycle.
  • Low operating cost: Low power consumption, low refractory consumption and low labor maintenance cost, reducing overall steelmaking cost.
  • Environmentally friendly: Closed smoke exhaust with dust removal equipment to meet emission standards.
  • Strong adaptability: Can be designed as ordinary electric arc furnace or EBT eccentric bottom tapping full water-cooled electric arc furnace, suitable for smelting of carbon steel, alloy steel and cast steel.

3. Common Technical Parameters (Reference)

Item Specification
Rated Capacity 10t, 20t, 30t, 50t, 70t, 100t
Transformer Capacity 6000～35000kVA
Graphite Electrode Diameter Φ350～Φ550mm
Smelting Cycle 40～60min/heat
Cooling Mode Closed full-circulation pure water cooling
Control Mode PLC full-automatic + manual dual mode
Applicable Raw Materials Scrap steel, pig iron, alloy materials
Application Steel mills, foundries, special steel workshop
