HX 3-Phase Steel Making Electric Arc Furnace for 5ton 8ton 10ton 15ton 20ton 30ton 50t 60t

Place of Origin Shaanxi, China
Brand Name Shaanxi Chengda
Certification ISO9001
Model Number Negotiate based on equipment processing capacity
Minimum Order Quantity 1set
Price The price will be negotiated based on the technical requirements and supply scope of Party A
Packaging Details Discuss according to the specific requirements of Party A
Delivery Time 2~3 months
Payment Terms L/C,D/A,T/T,Western Union,MoneyGram
Supply Ability Complete production supply chain, supply on time, and meet quality standards

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Transformer Rated Capacity 6300/8000kva Voltage Regulation Mode No Load Electric Voltage Regulation
Electrode Diameter Ø350 Machinery Weight 85t
Place Of Origin Xi 'an, China Production Capacity 100set Per Month
Type HX 3-phase Steel Making Electric Arc Furnace Marketing Type Ordinary Product
Highlight

60t dc electric arc furnace

,

30 ton dc electric arc furnace

,

5 ton electric arc

Leave a Message
Product Description

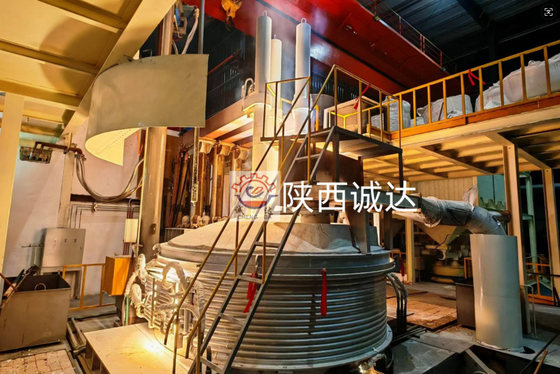

5ton 8ton 10ton 15ton 20ton 30ton 50tHX 3-phase steel making Electric Arc Furnace No load electric voltage regulation:



The HX electric arc furnace produced by the company is mainly used in the casting industry, with a capacity from 0.5t-50t. Among them, slot steel 0.5t-30t; The main features of the electric arc furnace: high flexibility, low energy consumption, short production cycle, energy saving andenvironmental protection.


HX three-phase steelmaking electric arc furnace is in the form of top charging with revo1ving cover and tapping with tapping trough.
This set of electrical equipment mainly includes: high-voltage power
supply system, furnace transformer, 1ow-vo1tage power supply system,1ow-vo1tage electrica1controlsystem, electrode lifting automatic
regulation system,industrial computer system.



Product feature:



1. System working principle
2. High voltage power supply system



Detail description of this device product:
Unigear ZS1 air insulated metal enclosed switch gear is designed and developed by ABB Calor Emag SchaltanlagenAG company. It is equipped with ABB Group's most advanced VD4 Vacuum Circuit Breaker and the most advanced and reable control and protection unit. Its advanced technology is the representative of air insulated metal enclosed switch gear in the world.In addition to the type test of unigear ZS1 switch gear in accordance with the requirements of International ectrotechnical Commission (IEC)and Chinese national standard(GB),relevant tests are also carried out in accordance with the requirements of Classification Society(LR,DNV,RINA,BV和GL). At the same time, it also passed the internal arcing test to prove that it can effectively ensure the personal safety of operators and reduce the loss of equipment and production process. Inpractice, internal arcing is rare or even impossible.



HX type three-phase steel arc furnace process flow:







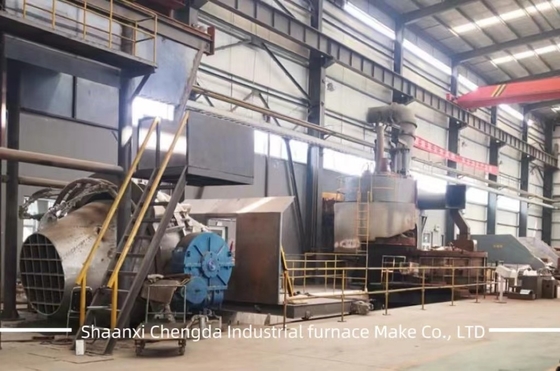

HX 3-Phase Steel Making Electric Arc Furnace for 5ton 8ton 10ton 15ton 20ton 30ton 50t 60t 0
Unigear ZS1 switch cabinet consists of two parts: fixed cabinet and removable parts. The cabinet is divided into four different functional units: bus room, circuit breaker room, cable room and low voltage room by partition.
The shell and partition of the switch cabinet are made of high-strength and corrosion-resistant aluminum zinc coated steel plate. After being processed and bent byCNCmachine tools, they are riveted by bolts on special fixtures, which ensures the uniformity of size and high mechanical strength. The protection level of switch cabinet shell reaches IP4X, and the protection level is IP2X when the door of circuit breaker room is opened.
Pressure relief devices are instal led at the top of circuit breaker room, bus bar room and cable room. When the internal arc fault occurs,
the internal air pressure of the switch gear increases, and the top pressure relief device will automatically open to release pressure and discharge gas. The special sealing ring instal led on the door seals the cabinet door to ensure the personal safety of operators. When the adjacent switch gear is spliced together, each metal side plate is separated fromeach other, and a 4mm air buffer layer is formed between the side plates to slow down the impact of arc fault on the temporary cabinet. The through wall partition between the bus-bar chambers can ensure that the arc fault will not spread to the adjacent switch gear, so as to reduce the loss ofequipment and production process.

Unigear ZS1 switch gear has various anti misoperation functions to meet the requirements of "five prevention" interlocking. At the same time, it also adopts uniform electric field design. All the main circuit buses are rounded and covered with insulating heat shrinkable sleeves produced by American Raychem company,while the exposed parts of the lap jointsare insulated with insulating materials. Through uniform electric field design and composite insulation design,the overall size of the switchgear is reduced to ensure reasonable and compactstructure. Moreimportantly, its installation, operation and maintenance can be carried out in front of the cabinet to minimize the customer's investment in civil engineering.
