Eccentric Bottom Tapping Electric Arc Furnace
| Place of Origin | China |
|---|---|
| Brand Name | Shaanxi Chengda |
| Certification | ISO 9001 |
| Model Number | Negotiate based on equipment processing capacity |
| Minimum Order Quantity | 1 unit |
| Price | The price will be negotiated based on the technical requirements and supply scope of Party A |
| Packaging Details | Discuss according to the specific requirements of Party A |
| Delivery Time | 2 months |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | Complete production supply chain, supply on time, and meet quality standards |
Product Details
| Melting Capacity | 5-300 Tons | Operating Temperature | 1600-1800°C |
|---|---|---|---|
| Application | Steel Production, Alloy Manufacturing, Metal Recycling | Controlsystem | PLC / Computerized Control |
| Equipmenttype | Industrial Machinery | Feature | Energy Saving |
| Device Type | DC Electric Arc Furnace | Voltage Regulation Mode | No Load Electric Voltage Regulation |
| Furnace Tapping System | Bottom Tapping Or Side Tapping | Keyword | Melting Funace |
| Highlight | electric arc furnace for steelmaking,eccentric bottom tapping furnace,steelmaking equipment with bottom tapping |
||
Product Description

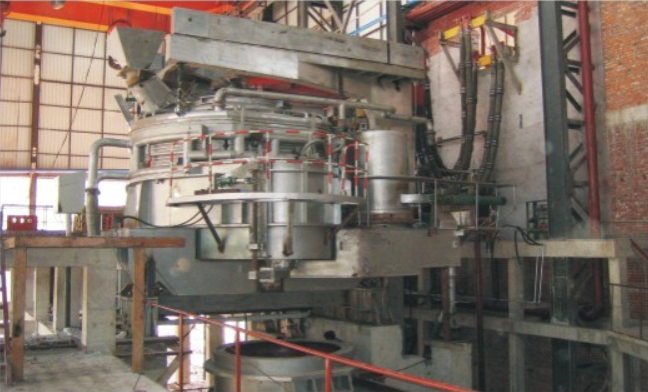

Eccentric Bottom Tapping Electric Arc Furnace
Equipment and Parameter Introduction
EBT Electric Arc Furnace | Core Equipment for High-efficiency Slag-free Tapping & Short-process Steelmaking
Eccentric Bottom Tapping Electric Arc Furnace (EBT) is the core equipment of modern steelmaking short-process. Adopting furnace bottom eccentric tapping design, it realizes slag-free tapping and residual steel & slag retaining operation, which greatly improves molten steel quality and production efficiency, and meets the demand of ultra-high power smelting.
1. Equipment Composition
The EBT electric arc furnace consists of four core modules: furnace body system, mechanical system, electrical system and auxiliary system, featuring compact structure and high automation.
1.1 Furnace Body System
- Furnace Shell: Divided into upper and lower shell. The lower part adopts nasal elliptical eccentric structure, lined with magnesium carbon brick / alumina-magnesia refractory brick. Water-cooled furnace wall coverage reaches 87%-90%.
- Water-cooled Furnace Roof: Fully water-cooled structure with electrode hole in the center, equipped with sealing and smoke exhaust device.
- Eccentric Tapping Box: Tapping hole set at the eccentric position of furnace bottom, matched with sliding gate / stopper opening and closing mechanism, filled with magnesia drainage sand for automatic pouring start.
1.2 Mechanical System
- Electrode Lifting Mechanism: Copper-steel composite / aluminum alloy conductive cross arm with servo drive to adjust electrode lifting and arc power.
- Furnace Tilting Mechanism: Hydraulic drive. Tilting angle on tapping side is only 5°-15°, with simplified structure and reduced short network loss.
- Furnace Roof Lifting & Rotating Mechanism: Electric / hydraulic drive, cooperating with scrap charging and furnace maintenance.
- Oxygen & Carbon Injection Lance System: Furnace wall bundled jet design, supporting foamed slag submerged arc smelting, enhancing oxygen supply and carburizing efficiency.
1.3 Electrical System
- Furnace Transformer: Ultra-high power configuration, unit power ≥ 600kVA/t, providing stable arc power supply.
- Short Network System: High-current conductive loop with low impedance design to reduce power loss.
- PLC Automatic Control System: Integrated electrode regulation, power control, tilting operation and safety interlock, supporting remote monitoring and data traceability.
1.4 Auxiliary System
- Water Cooling System: Closed circulating water cooling key components such as furnace shell, furnace roof and electrode cross arm.
- Hydraulic System: Providing power for furnace tilting, electrode lifting and tapping hole opening & closing.
- Dedusting & Smoke Exhaust System: Equipped with bag dust removal / waste heat recovery to meet environmental protection standards.
- Ladle & Ladle Car: Undertaking molten steel and matching with LF/VOD refining process.
2. Main Technical Parameters (Standard Reference)
| Parameter | Specification (50t / 100t / 150t) |
|---|---|
| Rated Capacity | 50t / 100t / 150t (Max tapping capacity: 1.05-1.2 times) |
| Furnace Shell Diameter | φ4600mm / φ5800mm / φ6800mm |
| Transformer Capacity | 18000kVA / 30000kVA / 45000kVA |
| Graphite Electrode Diameter | φ450mm / φ500mm / φ550mm |
| Electrode Pitch Circle | φ1150mm / φ1350mm / φ1500mm |
| Tapping Hole Diameter | φ120-150mm (Magnesia refractory) |
| Tilting Angle | Tapping side: 5°-15°, Return tilting: ≤5° |
| Tapping Time | 3-5 minutes per heat, steel-slag separation rate ＞95% |
| Smelting Cycle | 45-60 minutes per heat (With scrap preheating & continuous charging) |
| Residual Steel Volume | 10%-15% of rated capacity, residual slag rate ≥95% |
3. Performance Advantages
- Slag-free Tapping & Pure Steel Quality: Eccentric bottom tapping with small-angle tilting retains slag inside the furnace, effectively reducing phosphorus and sulfur content, suitable for high-carbon steel and alloy steel production.
- High Efficiency & Energy Saving with Cost Optimization: Smelting cycle shortened by 20%, heat loss reduced by about 20%; refractory service life extended by 15% with lower consumption.
- Safe, Stable & Easy Operation: Avoid splashing risk of traditional tilting tapping; automatic pouring start rate over 90%, PLC one-key operation reducing labor intensity.
- Compatible with Short-process Production: Can be matched with LF refining and continuous casting equipment to realize EAF-LF-CC short-process production, with annual output up to 400,000–800,000 tons.
4. Application Scope
Widely used in smelting of mild carbon steel, alloy steel, stainless steel and special steel. Suitable for scrap-based short-process steel mills, foundry enterprises and special steel production bases, serving as preferred equipment for modern green steelmaking.
