Optimized Water Cooled EAF Cover Perfect for Heavy Duty Applications

Place of Origin Shaanxi, China
Brand Name Shaanxi Chengda
Certification ISO9001
Model Number water-cooling roof
Minimum Order Quantity 1set
Price The price is negotiable.
Packaging Details Qualified new product
Delivery Time 8-15work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 3set per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

Heavy Duty EAF Cover

,

Optimized Water Cooled EAF Cover

,

Heavy Duty Water Cooled EAF Cover

Leave a Message
Product Description

Optimized water cooled EAF cover:



The design of the water cooled furnace cover can achieve the following functions:
(1) The micro-positive pressure and reduction atmosphere in the furnace can meet the smelting process requirements.
(2) Collect the flue gas generated in the smelting process, and send various slag materials and alloys to the furnace.
(3) Reduce heat radiation and heat loss, reduce refractory consumption Furnace cover body for the domestic advanced flow tight row pipe structure, water cooling furnace cover with seamless steel pipe special equal diameter elbow group welding, to ensure that water cooling flow without dead point.

   On the structure, the side wall of the furnace cover body is formed into columns and cones, and the top is an inverted cone surface (large at the bottom and small at the top) to ensure rigidity.
   Water cooling furnace cover design inlet pressure 0.7MPa, return water pressure 0.4MPa, flow 400 m%h, inlet temperature ≤35 ℃, return water temperature ≤55 ℃.

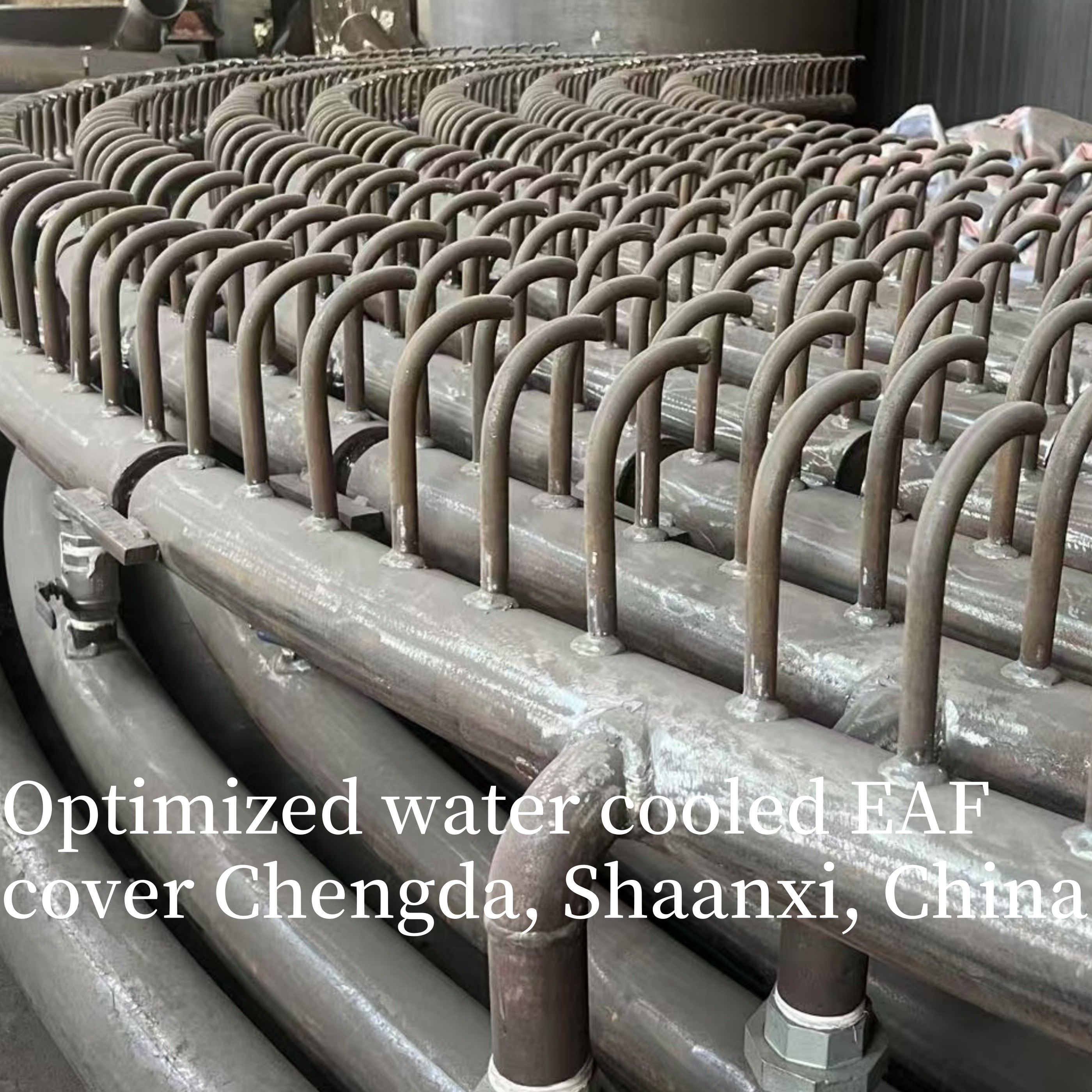

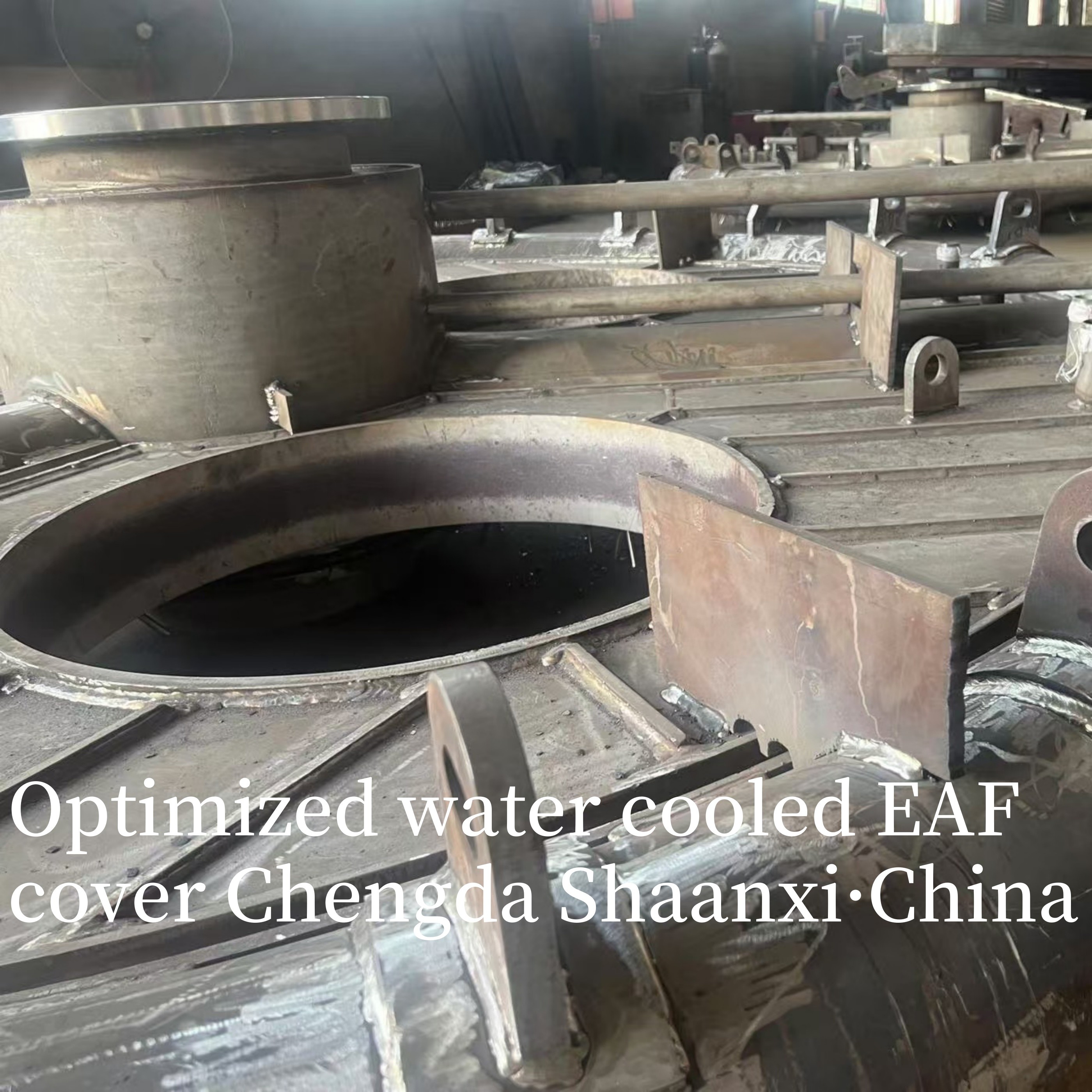

Furnace cover diagram:

Optimized Water Cooled EAF Cover Perfect for Heavy Duty Applications 0
