ISO9001 Approved Conductive Cross Arm for Electric Arc Furnace Manufactured

Place of Origin Shaanxi, China
Brand Name Shaanxi Chengda
Certification ISO9001
Model Number Conductive Cross Arm of Electric Arc Furnace
Minimum Order Quantity 1set
Price Price and specific model specifications can be agreed upon.
Packaging Details Qualified new product
Delivery Time 8-15work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5set per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Shaanxi Chengda Certificate Of Quality System ISO9001
Product Name Conductive Cross Arm Of Electric Arc Furnace Country Of Origin Shaanxi, China
Highlight

ISO9001 Conductive Cross Arm

,

Electric Arc Furnace Cross Arm

,

Electric Arc Furnace Conductive Cross Arm

Leave a Message
Product Description

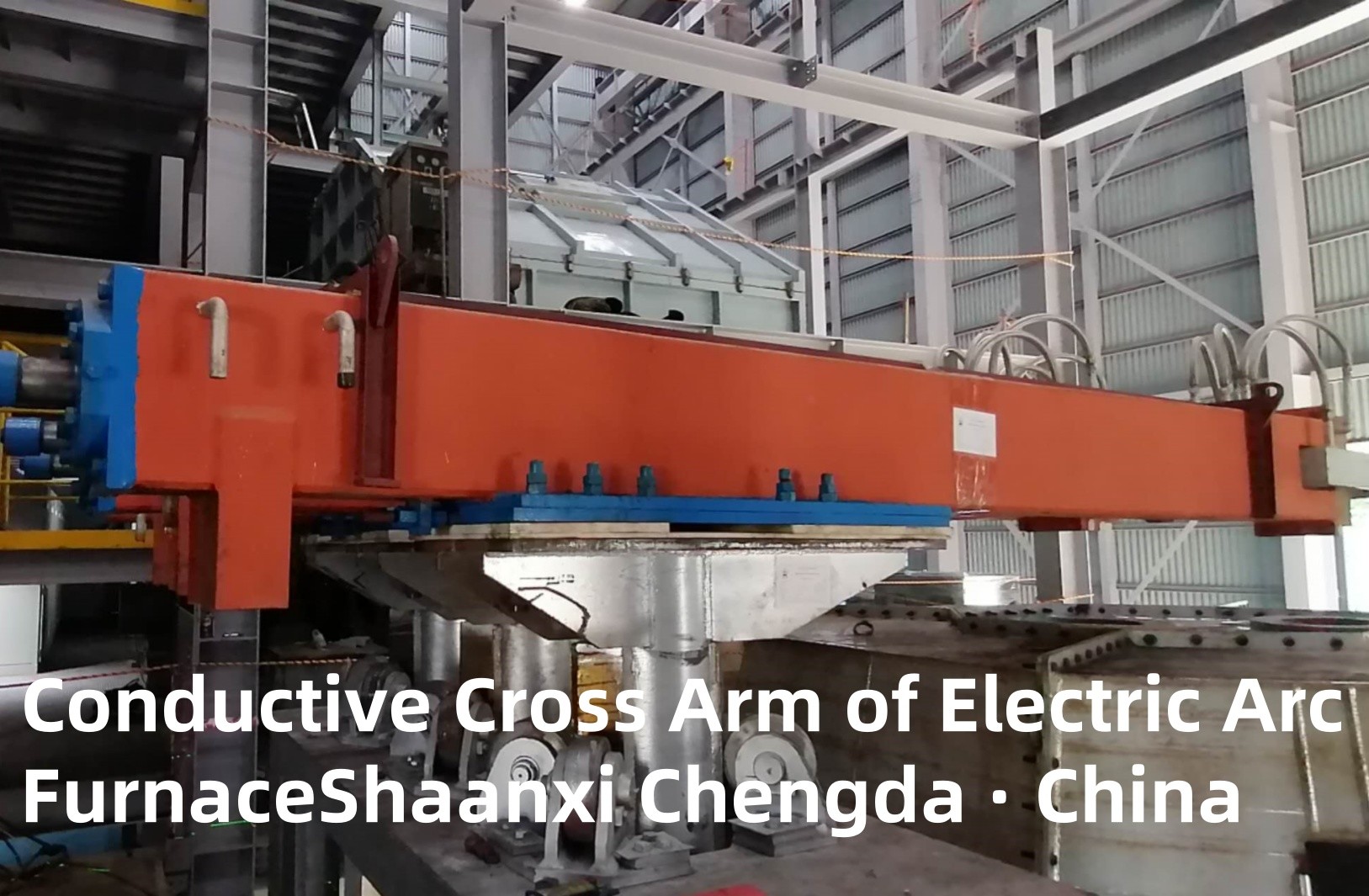

Conductive Cross Arm of Electric Arc Furnace


  Shaanxi Chengda electric arc furnace water-cooled composite conductive transverse arm is rectangular beam structure:

  It is welded by copper-steel composite plate, and the copper plate on its outer surface conducts electricity, combining the two functions of the electrode cross arm and the support electrode into one. Because the conductive copper tube and many insulation links on the traditional electrode cross arm are eliminated, the structure is simplified, the flow area is increased, and the impedance value and maintenance workload can be greatly reduced. It can be widely used in 5T-100T arc furnace and large tonnage ladle refining furnace.



  Product features:
  1,The product is composed of copper steel composite plate welding electrode arm, in which the copper layer is used to conduct electricity, the steel layer is used to support various mechanical forces.
  2,There is water interlayer in the electrode arm frame, which is cooled by water and can withstand the burning of the electric furnace flame.
  3,The electrode clamping using a butterfly spring, drive to hold the electrode, start or hydraulic release form. The clamping force is large and the clamping electrode is reliable.
  4,Electrode holder adopts copper alloy or copper steel composite plate, internal water cooling, long service life.
