HOT1 Multifunctional Integrated Ecological DC Electric Arc Furnace Complete Equipment

Place of Origin Shaanxi, China
Brand Name Shaanxi Chengda
Certification ISO9001
Model Number Customized
Minimum Order Quantity 1set
Price Price and specific model specifications can be agreed upon.
Packaging Details Baesd on order
Delivery Time 2~3 months
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability 2set per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type DC Electric Arc Furnace Complete Equipment Delivery Standard New
Core Component Shelf Life 1year Country Of Origin Shaanxi, China
Feature Energy Saving Keyword Melting Funace
Highlight

Multifunctional dc electric arc furnace

,

Integrated dc electric arc furnace

,

Ecological dc arc furnace

Leave a Message
Product Description

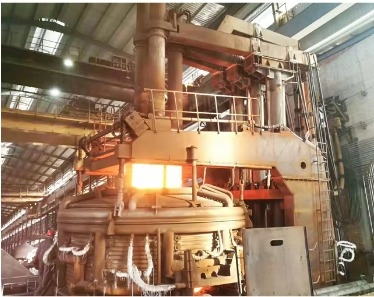

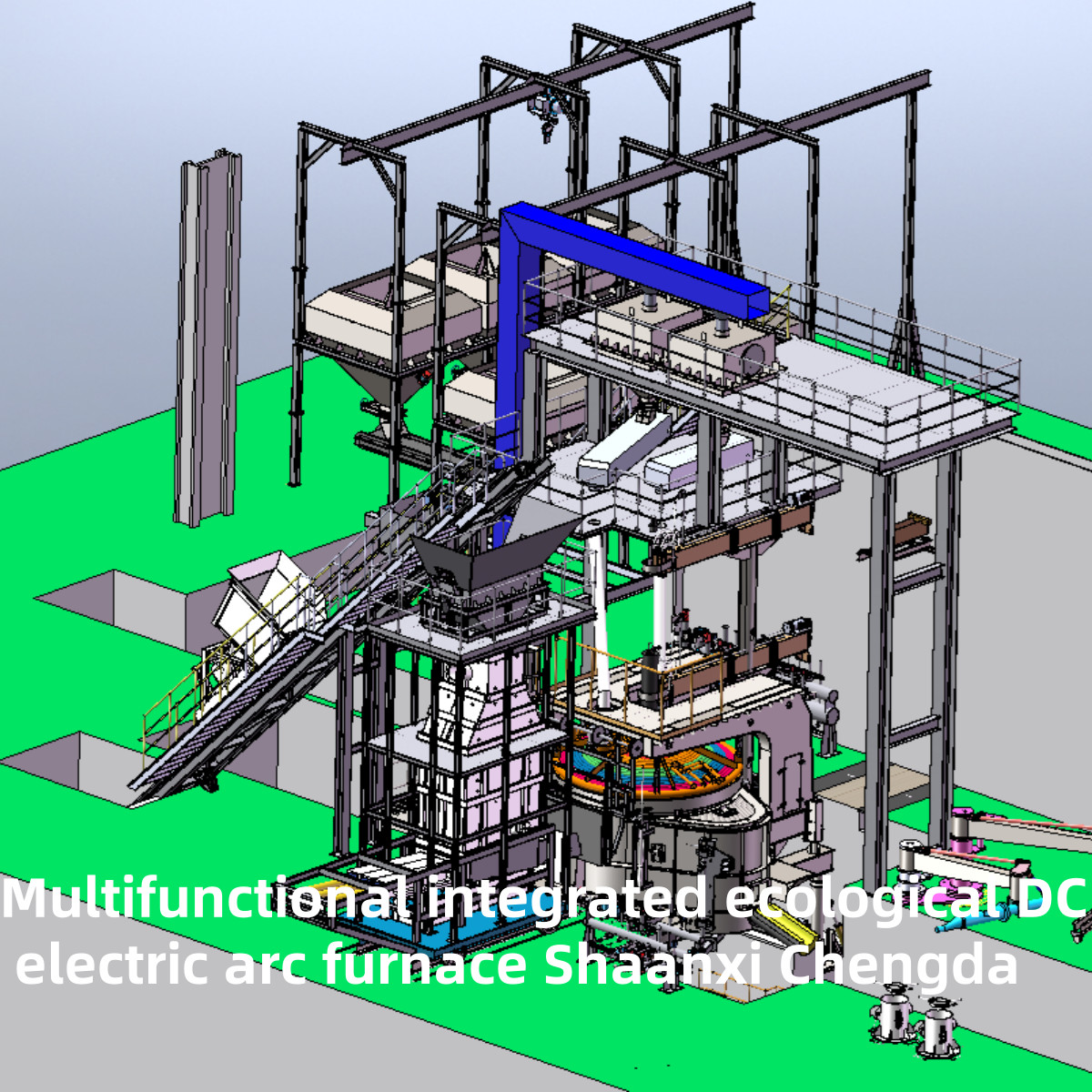

  Multifunctional integrated ecological DC electric arc furnace complete equipment


    A DC Electric Arc Furnace (DC-EAF) is a metallurgical device that uses direct current (DC) to generate high-temperature electric arcs for melting metals. Widely applied in steelmaking, alloy production, and specialty material manufacturing, it offers higher efficiency and stability compared to traditional AC arc furnaces, with reduced grid impact. It is a key tool in modern green metallurgy.


Parameter


type
Arc Furnace
usage
Melting Furnace
weight (t)
50 T
power (kw)
4000
warranty
1 Year
place of origin
Shaanxi, China
video outgoing-inspection
Provided
machinery test report
Provided
core components
PLC, motor, Pump
brand name
Chengda
dimension(l*w*h)
Customization Size
key selling points
Energy saving
Keyword
Melting Funace
Heat Source
Electric Arc
Melting Material
Scrap Steel
Final product
Quality Carbon Steel
Raw material
Scrap Steel Iron
Feature
Energy Saving
Application
Steel making
Capacity
50ton
Furnace type
Top Loading
Product Name
Electric Arc Furnace


I. Core Components
Electrode System

DC Electrode: A single graphite or carbon electrode (negative pole) fixed at the furnace roof center, conducting high current to form the arc.
Furnace Bottom Conductive Layer: A conductive material (e.g., metal plates or refractory materials) lining the furnace bottom as the positive pole, completing the electrical circuit.
Furnace Structure

Built with high-temperature refractory materials (e.g., magnesium-carbon bricks, corundum bricks) to insulate and protect the furnace shell.
Designed as a tilting or fixed furnace for efficient tapping and maintenance.
Power System

A dedicated DC power supply (e.g., IGBT rectifiers or high-voltage DC generators) providing stable low-voltage (hundreds of volts) and high-current (thousands to hundreds of thousands of amperes) output.
Auxiliary Systems

Cooling System: Water-cooled electrodes, furnace mouth, and roof to prevent overheating.
Emission Control: Integrated dust removal (e.g., bag filters) and heat recovery boilers to minimize pollution.
Automation: PLC or DCS systems for real-time control of current, voltage, electrode positioning, and smelting parameters.


II. Working Principle
Arc Smelting: DC current flows between the electrode and metal charge (e.g., scrap steel, alloys), producing an electric arc (3,000°C–5,000°C) to melt the metal.
Efficiency Advantage: The unidirectional DC arc ensures concentrated heating with minimal melt pool turbulence, reducing thermal losses and electrode wear.
Process Flexibility: Supports oxygen blowing, material charging, and decarbonization operations for precise control of chemical composition and temperature.


III. Technical Advantages
High Efficiency & Energy Savings

Faster Smelting: 10%~20% shorter cycles than AC furnaces.
Lower Consumption: 5%~15% less electricity usage due to stable arcing.
Reduced Downtime: Single-electrode design minimizes adjustments during operation.
Superior Product Quality

Stable melt pool leads to uniform metal composition and fewer impurities, ideal for high-purity steels, alloy steels, and specialty materials.
Environmental Benefits

Lower noise and dust generation; compatible with emission scrubbing systems for ultra-low emissions.
Extended Electrode Life

Uniform tip wear extends electrode lifespan by 30%~50% compared to AC systems.


IV. Typical Applications
Steel Production: Stainless steel, tool steel, bearing steel, high-manganese steel, and other specialty alloys.
Non-Ferrous Smelting: Refining copper, aluminum, nickel-based alloys, and precious metals.
Scrap Recycling: Efficient processing of scrap metal and alloys for resource circularity.
Research & Development: Laboratory-scale melting of high-temperature alloys, magnetic materials, and aerospace components.


V. Future Development Trends
Smart Automation: AI and big data-driven optimization for fully automated and unmanned operation.
Green Upgrades: Integration with waste-heat recovery and carbon capture technologies to lower carbon footprints.
Hybrid Processes: Combining with electroslag remelting (ESR) or vacuum degassing for enhanced material properties.
