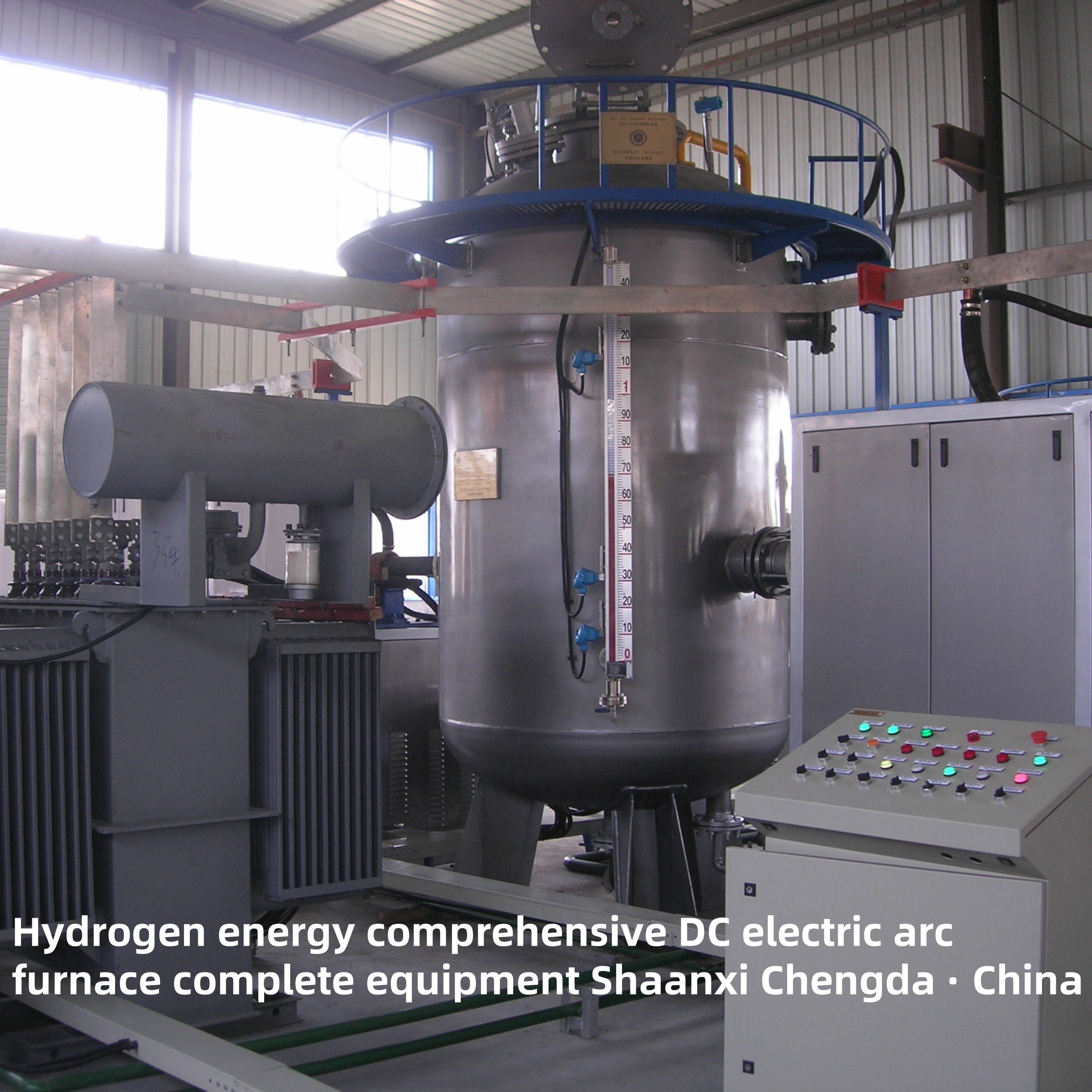

Hydrogen Energy Comprehensive DC Electric Arc Furnace Complete Equipment

Hydrogen energy comprehensive DC electric arc furnace complete equipment

Equipment use:
  The LENR1-350/75 synthetic gas production equipment is mainly used for heating and cracking the solid-liquid mixture (water) to obtain a new combustible gas mixture.

Overview of working principle:
  Under a certain pressure and temperature, the solid-liquid mixture is heated by the arc generated between the electrodes. Under the action of high temperature of the arc, the solid-liquid mixture is cracked to produce a combustible mixture of hydrogen (H2) and carbon monoxide (CO) as the main components.
  Electrode (arc) + solid-liquid mixture → combustible gas mixture

Equipment features:
  1) The low voltage constant current power supply system is adopted, and the fusion cracking of the mixture of material and liquid (water) is carried out by high power arc to produce a new combustible mixture of hydrogen (H2) and carbon monoxide (OC);
  2) Automatic monitoring and automatic adjustment of the temperature, liquid level and pressure of the feed liquid mixture in the cracking tank to achieve continuous and stable operation of the cracking device for a long time;
  3) Automatically monitor and record the flow and pressure of the mixed combustible gas generated by cracking and automatically adjust it to achieve continuous long-term compression and storage of combustible gas;
  4) To achieve continuous automatic electrode feeding, automatic screwing, automatic centering, precision feed control stable arc and longitudinal double-station collet automatic switching, etc., to ensure stable arc reaction of anode and cathode electrodes;
  5) To achieve safe system startup, start and stop charging and scavenging nitrogen, multi-point real-time monitoring and automatic elimination of combustible gas around the equipment, and emergency shutdown;
  6) The electrode transmission mechanism can realize manual and automatic conversion, independently realize startup and shutdown, and can also realize linkage, which is convenient for troubleshooting equipment repair and debugging maintenance;
  7) To realize the water pressure and water temperature monitoring alarm signal of circulating cooling water, the cooling water device respectively provides the tank electrode seal, conductive chuck, water-cooled cable, DC power supply and other cooling.

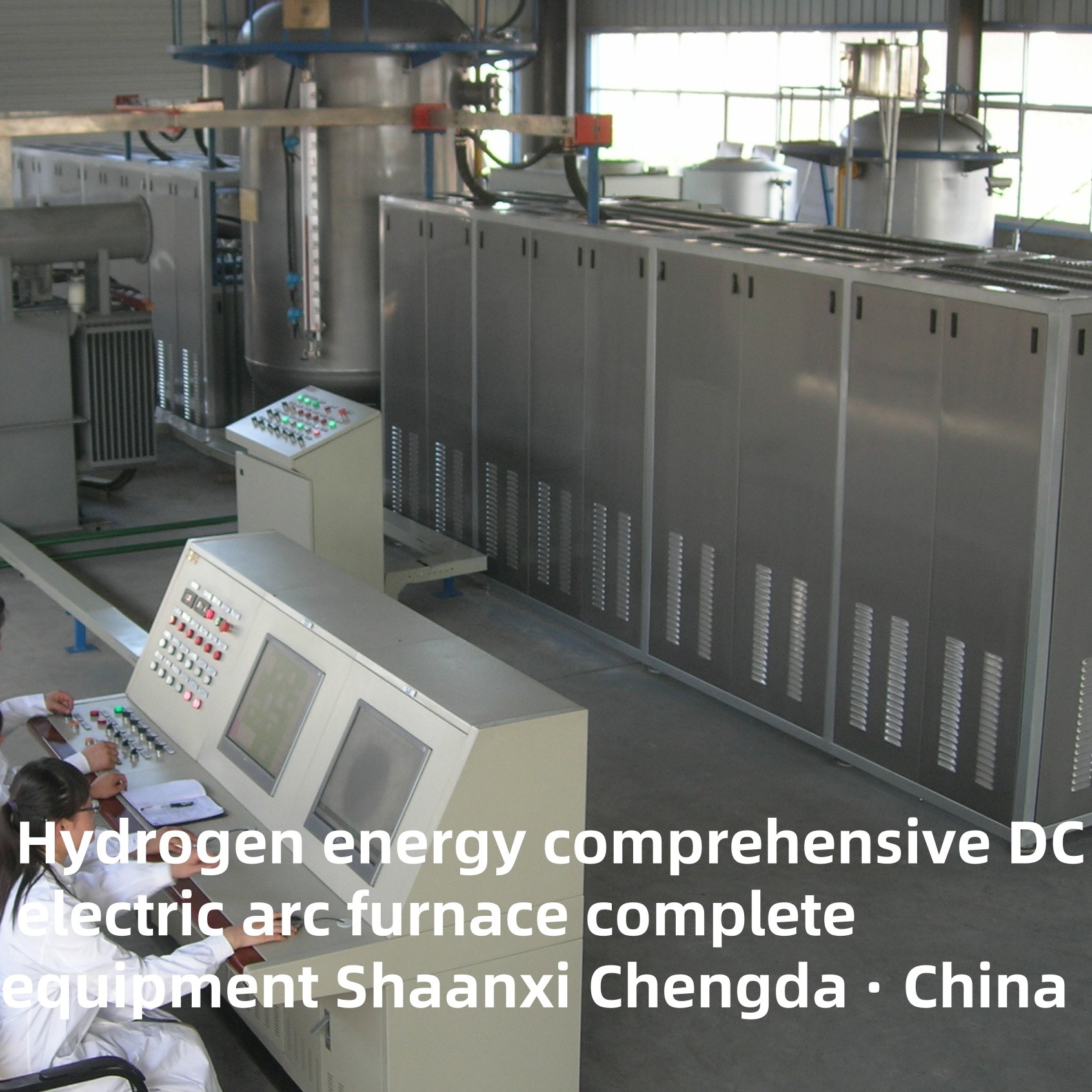

  8) The industrial control computer mainly monitors the process, and can set and modify the field parameters. The site signal is collected and transmitted by the programmable controller PLC of the lower computer, and communicates with the executing instruments. Field control parameters such as arc voltage, current, power; Electrode feed control accuracy, position accuracy; Gas pressure, temperature, etc.; Centralized control and monitoring display of temperature, liquid level and flow rate of the mixture.
  9) Large screen monitoring screen, to achieve more than nine screen centralized display, to achieve the electrode position in the cracking tank liquid, arc state monitoring, to achieve the loading, feed mechanical transmission state display, to achieve the gas flow, pressure, temperature and other field display.
