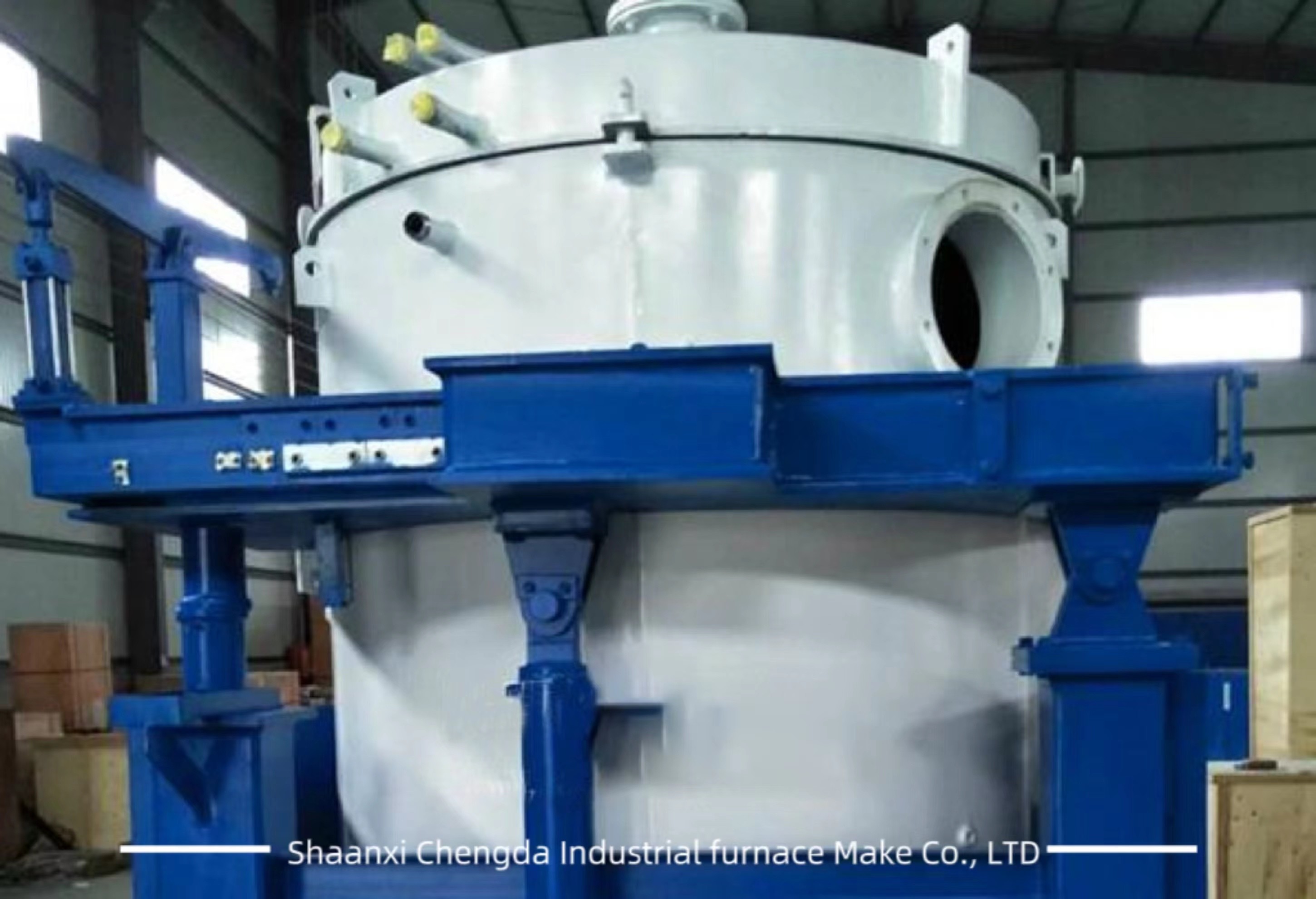

10-100t DC Electric Arc Furnace
| Place of Origin | China |
|---|---|
| Brand Name | Shaanxi Chengda |
| Certification | ISO9001 |
| Model Number | 150KW |
| Minimum Order Quantity | 1set |
| Price | The price is negotiable |
| Delivery Time | 8-18work day |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5set per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Category | 150kw | Molten Residue Capacity | 80KG/H |
|---|---|---|---|
| Operating Temperature Of Electric Arc Furnace | 1400-1600℃ | Eaf Operating Pressure | Slightly Negative Or Normal Pressure |
| Place Of Origin | Chengda, Shaanxi, China | Warranty | 1year |
| Highlight | 100t direct arc electric furnace,10t direct arc electric furnace,DC arc melting furnace |
||
Product Description
Equipment use:
The equipment adopts DC power heating technology, provides DC arc high temperature heat source, non-metal, high melting point refractory metal substances and materials containing precious metals for heating melting or refining extraction.
Equipment performance: Equipment power :150KW(maximum 180KW);
Molten residue capacity :80KG/h
Electric arc furnace operating temperature: normal 1400C, maximum 1600℃; Electric arc furnace operating pressure: micro negative pressure (or normal pressure);
Equipment mechanical composition: furnace shell, furnace body tilting device, plate water-cooled furnace cover, charging system and sealing device, slag discharge device and eye opener device, copper tube type conductive cross arm, electrode lifting device, smoke collecting device with water cooling section, water cooling system.
Design plan and construction drawings:
Design scheme:
our company has a design company with first-class qualification, and the designer has 30 years of experience in kiln design. After the drawing is completed, three experts (civil engineer, construction engineer and operating engineer) will carry out the final review of the drawing to ensure that there will be no mistakes in the construction of the kiln.
Construction drawing: The dimensions of each place are marked on the construction drawing, and the name, size and quantity of the refractory used are marked. Any experienced construction worker can understand the drawings and follow the construction without any mistakes.
Evaluation and preparation of refractory materials:
Lite offers a wide range of products for these types of furnaces, such as low cement castables, plastics refractories, gunning mix and insulation castables.
