Full Automatic Submerged Arc Furnace With High Quality
| Place of Origin | China |
|---|---|
| Brand Name | Shaanxi Chengda |
| Certification | ISO9001 |
| Model Number | Negotiate based on equipment processing capacity |
| Minimum Order Quantity | 1Set |
| Price | The price will be negotiated based on the technical requirements and supply scope of Party A |
| Packaging Details | Discuss according to the specific requirements of Party A |
| Delivery Time | 2~3 months |
| Payment Terms | T/T,Western Union,MoneyGram,D/A |
| Supply Ability | Complete production supply chain, supply on time, and meet quality standards |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Total Power | 16500kva | Daily Output Per Unit | 24t-28t |
|---|---|---|---|
| Fuel | Electric | ||
| Highlight | Full Automatic Submerged Arc Furnace,Submerged Arc Furnace Full Automatic,Full Automatic electric submerged arc furnace |
||
Product Description

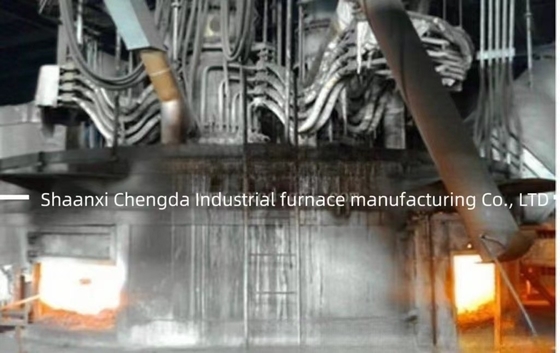

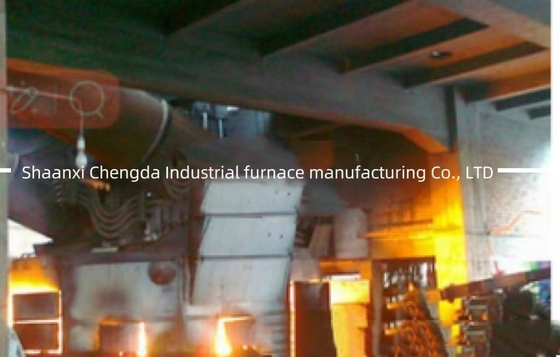

16500kva industrial silicon furnace Industrial Silicon Submerged Arc Furnace
Process Description:
Product description:
1, Overview of the Industrial Silicon Submerged Arc Furnace
Industrial Silicon Submerged Arc Furnace is mainly used to proceed the submerged arc smelting by mixing up qualified silica,carbonaceous reducing agent and other material with specific proportion, filling into the industrial Silicon Submerged Arc Furnace, inputting high voltage through transformer,high current supply system and electrode holder and submerging the electrode into material. After a period of smelting, tapping the molten iron into the ladle, moulding by casting, smashing, finishing, and then, quantitative packaging into storage.
Technology Feature: applying self-baking electrode,carbonaceous brick and high alumina refractory brick as furnace lining,continuous charging,intermittent tapping,continuous processing.
2.Composition of the Industrial Silicon Submerged Arc Furnace
The mechanical part of the Industrial Silicon Submerged Arc Furnace mainly consists of furnace shell(stationary and rotating type), semi-sealed low hood, electrode holder(combined holder or pressure ring holder), high current supply system, smoke extraction system, charging system, feed system, hydraulic systems.
3. Usage of Industrial Silicon Submerged Arc Furnace
Industrial Silicon as known as silicon metal or metallic silicon, it is mainly used as additive of non-ferrous metals. Silicon can improve the hardness, intensity and wear resistance of some non-ferrous metals, also improve its casting and welding performance sometimes. Industrial silicon is also used as alloying agent of silicon steel and deoxidizing agent for smelting special grade steel and non-ferrous metals. Silicon can be pulled into mono-crystal silicon for electronic industry after a series of processing.
