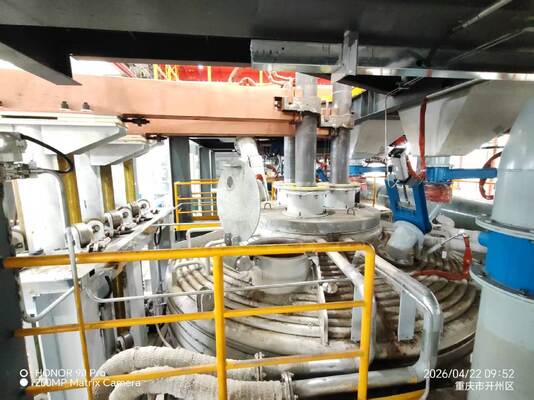

Magnesium Slag Rock Wool Electric Furnace 2500kVA Mineral Wool Production Equipment Solid Waste Recycling
| Place of Origin | Shaanxi, China |
|---|---|
| Brand Name | Shaanxi Chengda |
| Certification | ISO 9001:2015 |
| Model Number | CD-RWF-2500 |
| Minimum Order Quantity | 1 Set |
| Price | Negotiable, quoted by treatment capacity and process scope |
| Packaging Details | Seaworthy export packing: furnace shell fixed in reinforced steel frame, graphite electrodes and refractories in waterproof crates, electrical cabinets vacuum-bagged in plywood cases, full container or break bulk shipment |
| Delivery Time | 2 months |
| Payment Terms | T/T,L/C at sight,D/P,Western Union |
| Supply Ability | 12 Sets per Year |
Product Details
| Equipment Type | Magnesium Slag Rock Wool Electric Furnace | Rated Capacity | 2500 KVA |
|---|---|---|---|
| Input Voltage | 10 KV | Melting Temperature | 1450-1550 C |
| Melting Capacity | 3-4 T/h | Power Consumption Per Ton Wool | 380-450 KWh |
| Furnace Shell Inner Diameter | 3800-4500 Mm | Graphite Electrode Diameter | 300-400 Mm |
| Fiber Diameter | 4-7 Micron | Shot Content | Below 10% |
| Working Days Per Year | 330 Days | Cooling Water Consumption | 80-120 M3/h |
| Dust Collection | Closed Furnace Hood, Cyclone And Bag Filter | Control System | PLC With Temperature And Flow Closed Loop |
| Warranty | 12 Months On Core Components | ||
| Highlight | Magnesium slag rock wool electric furnace,2500kVA mineral wool production equipment,solid waste recycling equipment |
||
Product Description
Magnesium Slag Rock Wool Electric Furnace 2500kVA
Magnesium reduction slag is rich in calcium silicate and is chemically close to the melt used for mineral wool, which makes it a practical substitute for basalt in insulation wool production. This 2500kVA electric melting furnace is configured specifically for that route: magnesium slag, together with a small amount of conditioners, is melted into a uniform magma and then discharged to a centrifugal fiberising unit to make rock wool boards, blankets and pipes.
Advantages of the Electric Melting Route
- Clean heat source: no fuel combustion in the melting zone, so sulphur dioxide, nitrogen oxide and dust from the furnace are far lower than in a cupola.
- Stable magma quality: temperature is held within plus or minus 10 C, keeping viscosity constant, which is the key condition for a fine, uniform fibre.
- Flexible raw material ratio: magnesium slag can be blended with basalt, dolomite or blast furnace slag to reach the required acidity modulus.
- Energy efficiency: the closed furnace body with external insulation cuts heat loss, giving 15%-20% better energy utilisation than a conventional fuel fired melter.
- Waste to product: each ton of magnesium slag that is melted replaces mined basalt, and the finished wool locks the material into a durable insulation product.
Process Flow
- Magnesium slag is dried to below 1% moisture and screened to remove coarse inclusions.
- Slag, basalt and conditioner are weighed and mixed in the batching station, then fed through a sealed automatic charging system.
- The electric furnace melts the blend at 1450-1550 C; the closed furnace holds the pool at constant temperature.
- Magma flows through the forehearth and is fiberised by the four wheel centrifugal spinner, then collected in the wool chamber.
- Wool is needled, cut and packed into boards, blankets or pipe sections; off gas passes through the dust removal train.
Technical Parameters
| Item | Data |
|---|---|
| Rated capacity | 2500 kVA |
| Input voltage | 10 kV |
| Melting temperature | 1450-1550 C |
| Melting capacity | 3-4 t/h |
| Power consumption | 380-450 kWh per ton of wool |
| Furnace shell inner diameter | 3800-4500 mm |
| Graphite electrode diameter | 300-400 mm |
| Fibre diameter | 4-7 micron |
| Shot content | Below 10% |
| Annual working days | 330 days |
| Cooling water consumption | 80-120 m3/h |
Scope of Supply
Transformer and high voltage switchgear, electric melting furnace with water cooled shell and graphite electrode system, automatic batching and feeding line, forehearth and flow control, centrifugal fiberising unit, wool collection chamber, dust removal system, circulating water station, PLC cabinet, spare parts for one year of operation.
Service
Recipe design based on the acidity modulus of your slag, plant layout and utility drawings, supervision of installation and fibre line start up, operator training on melting and fiberising control, and 12 months warranty on core components.
Applications
Rock wool board and blanket production, mineral wool pipe section production, magnesium plant solid waste utilisation projects, and combined slag wool lines using steel slag, blast furnace slag or gasification slag.
Send us your slag analysis and target wool output and we will prepare the melting and fiberising configuration for your project.
