Magnesium Slag DC Electric Arc Furnace 3000kVA Magnesium Smelting Slag Recycling Equipment
| Place of Origin | Shaanxi, China |
|---|---|
| Brand Name | Shaanxi Chengda |
| Certification | ISO 9001:2015 |
| Model Number | CD-DCAF-3000 |
| Minimum Order Quantity | 1 Set |
| Price | Negotiable, quoted by treatment capacity and process scope |
| Packaging Details | Seaworthy export packing: furnace shell fixed in reinforced steel frame, graphite electrodes and refractories in waterproof crates, electrical cabinets vacuum-bagged in plywood cases, full container or break bulk shipment |
| Delivery Time | 2~3 months |
| Payment Terms | T/T,L/C at sight,D/P,Western Union |
| Supply Ability | 12 Sets per Year |
Product Details
| Equipment Type | DC Electric Arc Furnace For Magnesium Slag | Rated Capacity | 3000 KVA |
|---|---|---|---|
| Input Voltage | 10 KV | DC Operating Voltage | 120-380 V Adjustable |
| Melting Temperature | 1500-1650 C | Treatment Capacity | 3-5 T/h |
| Power Consumption | 550-700 KWh/t Slag | Graphite Electrode Diameter | 200-300 Mm |
| Furnace Shell Inner Diameter | 3000-3600 Mm | Electrode Control | PLC Variable Frequency, Current And Voltage Double Closed Loop |
| Power Factor | 0.90 Or Above Without Compensation | Cooling Water Consumption | 80-120 M3/h |
| Dust Collection | Closed Hood, Settling Chamber, Bag Filter, Emission Below 10 Mg/m3 | Control System | PLC With HMI, Remote Diagnostics |
| Warranty | 12 Months On Core Components | ||
| Highlight | Magnesium slag DC arc furnace,3000kVA slag recycling equipment,Hazardous slag smelting treatment |
||
Product Description

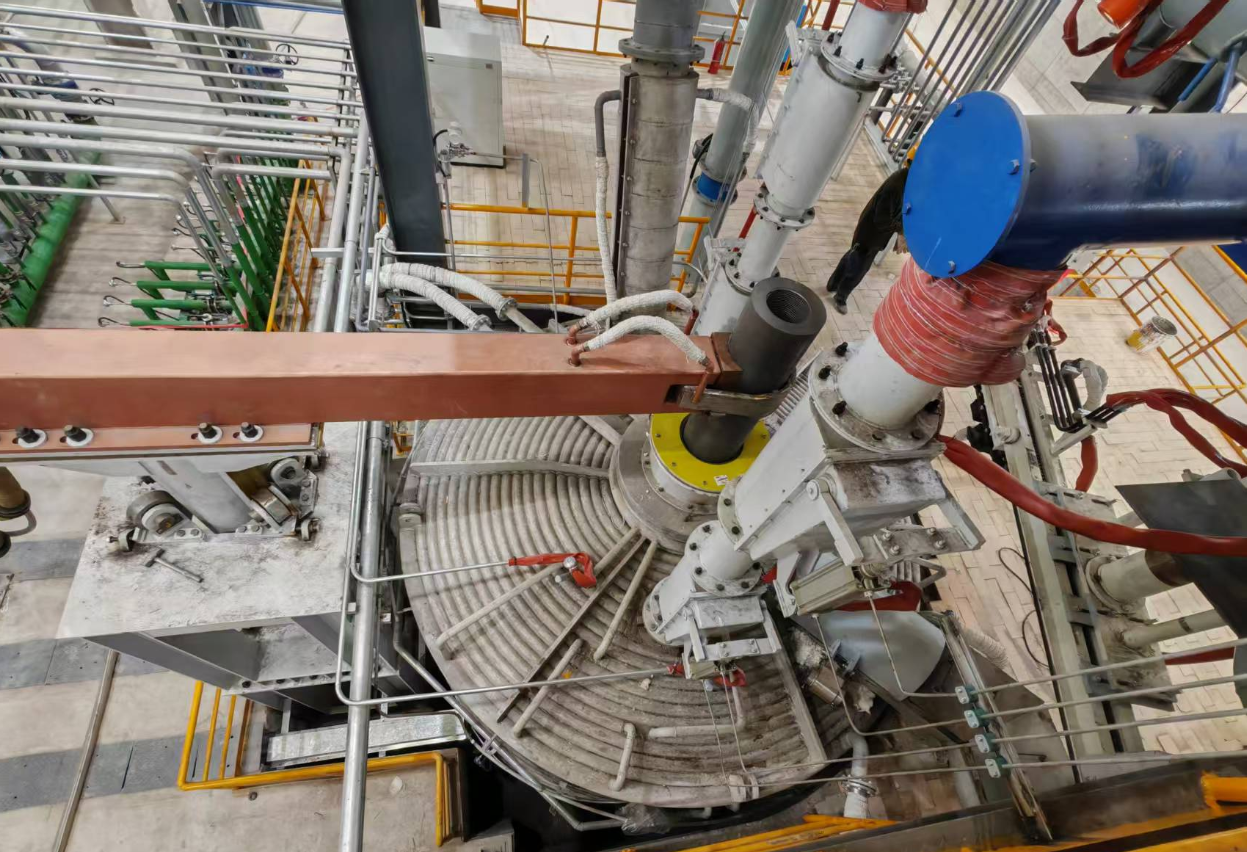

Magnesium Slag DC Electric Arc Furnace 3000kVA
The furnace is a dedicated DC arc melting unit for magnesium reduction slag generated by the Pidgeon process and similar thermal reduction routes. Magnesium slag is fine, highly alkaline and carries residual metallic magnesium together with unreacted ferrosilicon, which makes it difficult to handle in conventional AC furnaces. The 3000kVA DC arc design delivers a concentrated, stable arc, so the slag is melted and reduced in one closed system instead of being stockpiled.
Why DC Arc Technology Suits Magnesium Slag
- Concentrated arc heat: the DC arc is stable and concentrated, reaching 1500-1650 C quickly even though magnesium slag is a poor conductor before melting.
- Double closed loop electrode control: the electrode lift is driven by PLC variable frequency control with real time current and voltage feedback, keeping the arc length constant as slag composition shifts.
- High natural power factor: 0.90 or above without a compensation bank, reducing reactive power penalties at the plant level.
- Lower electrode consumption: graphite electrode consumption is 30%-50% lower than a comparable AC furnace, and flicker, noise and harmonic disturbance are markedly reduced.
- Multi-electrode power supply: non conductive and partly molten charge can still be melted reliably, avoiding the bridging and dead zones typical of AC operation.
Process Flow
- Magnesium slag is crushed, screened and blended with a small amount of flux and reductant in a batching station.
- Automatic feeding delivers the blend to the furnace through a sealed charging port with dust suppression.
- The DC arc melts the charge into a fluid pool; metal and alloy phases settle to the bottom while the oxidised slag floats.
- Metal is tapped through the lower tapping hole for ingot casting or granulation; slag is tapped forward through the slag notch for vitrification, cooling and downstream use.
- Off gas enters a settling chamber and bag filter, with emission kept below 10 mg/m3.
Technical Parameters
| Item | Data |
|---|---|
| Rated capacity | 3000 kVA |
| Input voltage | 10 kV |
| DC operating voltage | 120-380 V adjustable |
| Melting temperature | 1500-1650 C |
| Treatment capacity | 3-5 t/h |
| Power consumption | 550-700 kWh/t slag |
| Graphite electrode diameter | 200-300 mm |
| Furnace shell inner diameter | 3000-3600 mm |
| Cooling water consumption | 80-120 m3/h |
| Furnace lining | High alumina refractory brick with corundum mullite castable hot face |
| Control system | PLC plus HMI, remote diagnostics, data logging |
Scope of Supply
Transformer and rectifier cabinet, DC arc furnace body with water cooled shell, electrode column and lifting mechanism, sealed charging system, slag and metal tapping assemblies, circulating water cooling station, hydraulic station, dust removal train, PLC automation cabinet, commissioning and operator training.
Service
Process test work on customer slag samples, general arrangement and foundation drawings, installation supervision, cold and hot commissioning, 12 months warranty on core components, and remote support through the furnace control network.
Applications
Magnesium plant slag utilisation, magnesium reduction slag metal recovery, calcium silicate based secondary material production, and co-processing of magnesium slag with steelmaking slag or fly ash.
Tell us your slag composition and daily tonnage and we will size the transformer, electrode diameter and cooling capacity for your plant.
