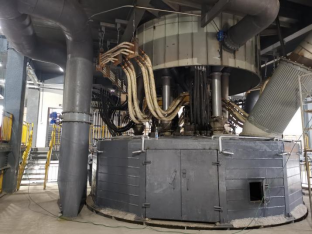

Refractory Metal Recovery Electric Furnace 1.5 Tph for Anode Slime Smelting
| Place of Origin | Shaanxi, China |
|---|---|
| Brand Name | Shaanxi Chengda |
| Certification | ISO 9001:2015 |
| Model Number | CD-RMR-1.5T |
| Minimum Order Quantity | 1 Set |
| Price | USD 160000-420000 / Set |
| Packaging Details | Seaworthy export packing with steel frame and anti-rust protection |
| Delivery Time | 2 months |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 12 Sets per Year |
Product Details
| Furnace Type | Refractory Metal Recovery DC Electric Furnace | Rated Capacity | 1.5 Tph |
|---|---|---|---|
| Rated Power | 1500 KVA | Max Temperature | 1700 C |
| Furnace Lining | Corundum-Chrome Castable | Recovery Rate | Up To 98 Percent |
| Target Metals | Selenium Tellurium Rare Metals | Control System | PLC Automatic Control |
| Cooling Method | Circulating Water Cooling | Warranty | 1 Year |
| Highlight | Refractory Metal Recovery Furnace 1.5 Tph,Anode Slime Smelting Electric Furnace,Hazardous Waste Treatment Smelting Equipment |
||
Product Description
Refractory Metal Recovery Electric Furnace for Anode Slime Smelting
The CD-RMR-1.5T Refractory Metal Recovery Electric Furnace is built to smelt copper anode slime, smelting residues and other rare metal bearing waste, recovering selenium, tellurium and refractory metals into a concentrated product. Its corundum-chrome castable lining withstands high temperatures and corrosive slag.
Key Features
- Rare Metal Recovery: Tuned slag system recovers up to 98 percent of rare and refractory metals from anode slime.
- Corundum-Chrome Castable Lining: Monolithic lining offers excellent thermal shock resistance and long working life at high temperature.
- High Temperature Melting: Reaches up to 1700 C, suitable for high melting point residues and slags.
- Stable DC Power: Natural power factor above 0.9 without compensation, low flicker and reduced electrode consumption.
- Automatic Control: PLC control regulates electrode position and power for steady smelting and repeatable yield.
Applications
- Recovery of selenium, tellurium and rare metals from anode slime
- Smelting of precious and rare metal refining residues
- Concentration of smelting by-products and slags
Why Choose This Furnace
The furnace pairs a robust corundum-chrome chamber with efficient DC arc heating, giving high recovery, low downtime and predictable running cost for refiners handling complex residues.
Share your residue composition and throughput target and we will recommend the right model for your plant.
