Precious Metal Recovery Electric Furnace 2 Tph for Spent Catalyst Smelting
| Place of Origin | Shaanxi, China |
|---|---|
| Brand Name | Shaanxi Chengda |
| Certification | ISO 9001:2015 |
| Model Number | CD-PMR-2T |
| Minimum Order Quantity | 1 Set |
| Price | USD 180000-450000 / Set |
| Packaging Details | Seaworthy export packing with steel frame and anti-rust protection |
| Delivery Time | 2 months |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 12 Sets per Year |
Product Details
| Furnace Type | Precious Metal Recovery DC Electric Furnace | Rated Capacity | 2 Tph |
|---|---|---|---|
| Rated Power | 2000 KVA | Max Temperature | 1600 C |
| Furnace Lining | Corundum-Chrome Refractory | Recovery Rate | Up To 99 Percent |
| Target Metals | Gold Silver Platinum Palladium | Control System | PLC + DCS |
| Cooling Method | Water Cooled | Warranty | 1 Year |
| Highlight | Precious metal recovery electric furnace,Spent catalyst smelting furnace,Hazardous waste treatment equipment with warranty |
||
Product Description

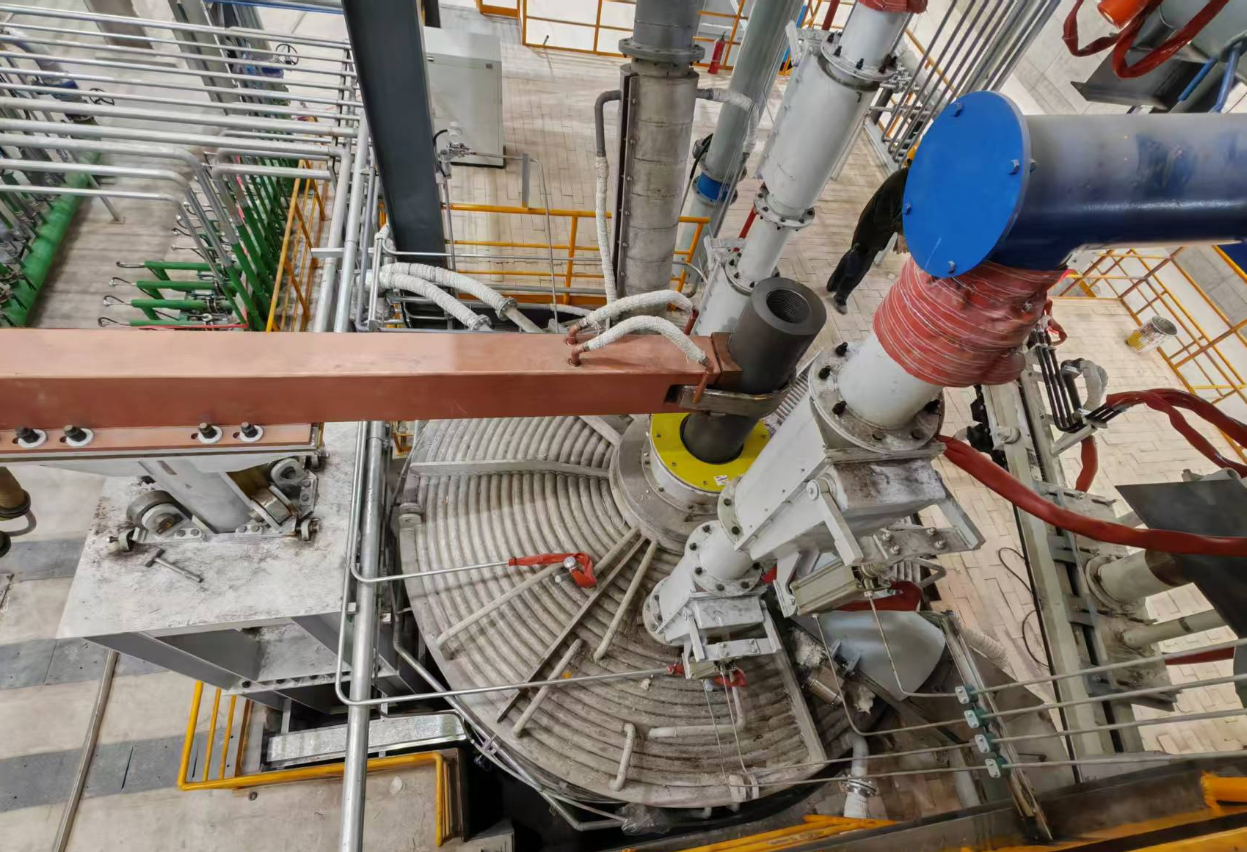

Precious Metal Recovery Electric Furnace for Spent Catalyst Smelting
The CD-PMR-2T Precious Metal Recovery Electric Furnace is designed to smelt spent catalysts, electronic scrap and other precious metal bearing waste, concentrating and recovering gold, silver and platinum group metals into a saleable alloy. A corundum-chrome lining protects the furnace against corrosive slag and high thermal load.
Key Features
- High Recovery Rate: Optimised slag chemistry and bath control recover up to 99 percent of precious metals from spent catalyst and residue.
- Corundum-Chrome Lining: Dense refractory lining resists aggressive slag attack and thermal shock, extending campaign life.
- DC Arc Heating: Concentrated DC arc heat melts high melting point feed fast, with power factor above 0.9 and low electrode consumption.
- Precise Process Control: PLC plus DCS control holds temperature and slag conditions stable for consistent metal yield.
- Clean Operation: Sealed low hood captures off-gas for downstream dust collection and precious metal recovery.
Applications
- Recovery of gold, silver and PGM from spent catalysts
- Smelting of electronic waste and precious metal residues
- Concentration of anode slime and refining by-products
Why Choose This Furnace
By combining efficient DC arc melting with a durable corundum-chrome lining, the furnace delivers high metal recovery and low operating cost per tonne, helping refiners turn hazardous residues into value.
Send us your feed analysis to receive a tailored furnace configuration and quotation.
