Electroplating Sludge Electric Furnace 3000kVA DC Arc Smelting Hazardous Waste Treatment Plant
| Place of Origin | China |
|---|---|
| Brand Name | Shaanxi Chengda |
| Certification | ISO 9001 |
| Model Number | HX-ES-3000 |
| Minimum Order Quantity | 1 unit |
| Price | The price will be negotiated based on the technical requirements and supply scope of Party A |
| Packaging Details | Discuss according to the specific requirements of Party A |
| Delivery Time | 2 months |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | Complete production supply chain, supply on time, and meet quality standards |
Product Details
| Furnace Type | DC Electric Arc Furnace | Rated Transformer Power | 3000 KVA |
|---|---|---|---|
| Processing Capacity | 4-6 Tons Electroplating Sludge Per Day | Melting Temperature | 1500-1600 C |
| Electrode Diameter | 300 Mm | Secondary Voltage | 221-110 V |
| Metal Recovery | Ni, Cu, Cr, Zn Recovery Above 98% | Slag Discharge | Inert Vitrified Slag For Building Materials |
| Feeding Mode | Batch Feeding With Automatic Charging | Control System | PLC + HMI Automatic Control |
| Cooling System | Closed-loop Water Cooling | Installation | Skid-mounted, Low Footprint Design |
| Highlight | Electroplating Sludge DC Arc Furnace,Hazardous Waste Treatment Electric Furnace,3000kVA Sludge Smelting Plant |
||
Product Description

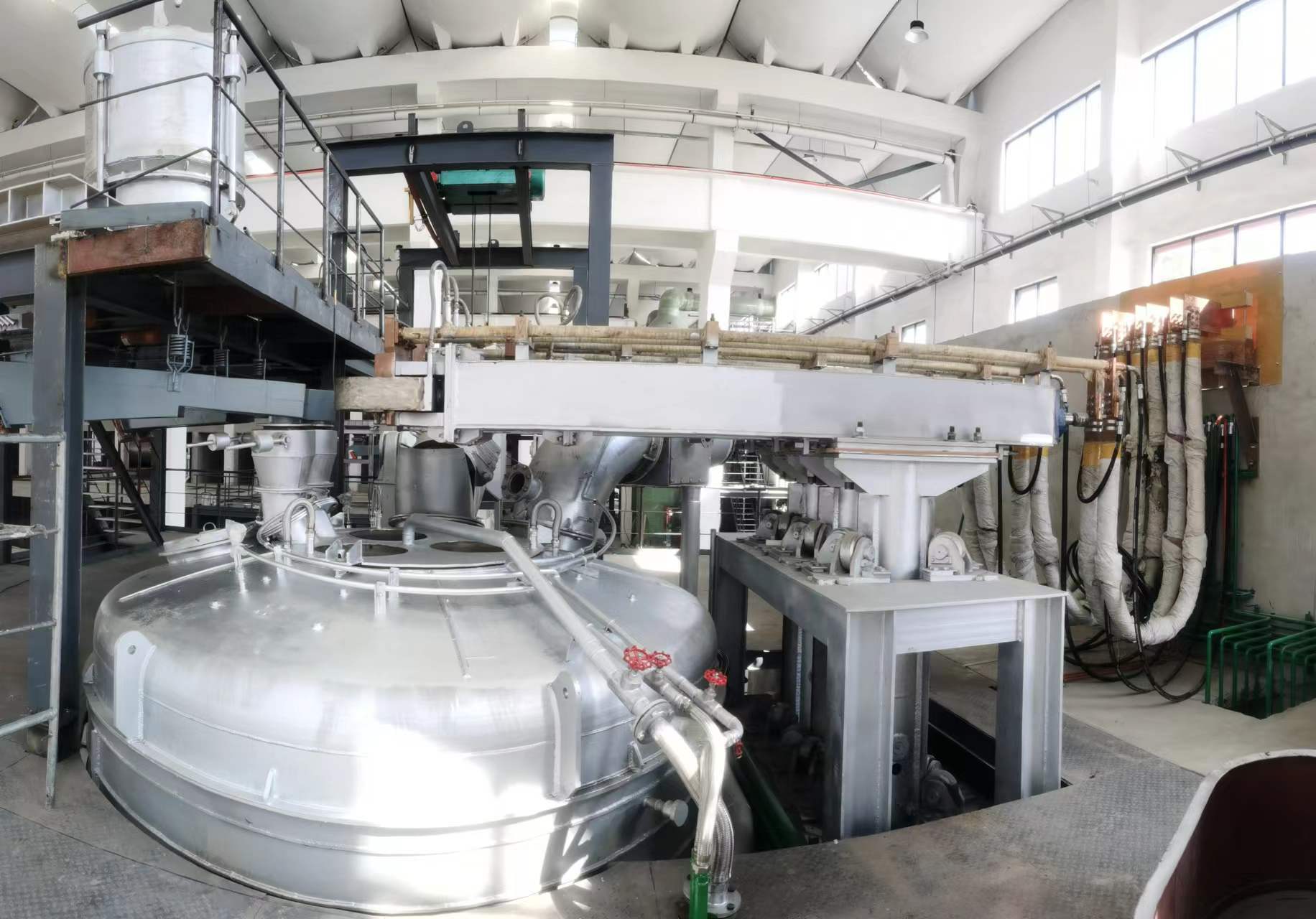

Electroplating Sludge Electric Furnace 3000kVA DC Arc Smelting System
The 3000kVA electroplating sludge electric furnace is a compact DC arc smelting solution developed for medium and small electroplating plants. It treats hazardous electroplating sludge on site, reduces waste volume significantly, and recovers valuable metals from the sludge. The skid-mounted design requires a small footprint and enables quick installation and commissioning.
Features
- Compact skid-mounted design with low footprint
- Hazardous waste reduction of more than 85% in volume
- Valuable metal recovery (Ni, Cu, Cr, Zn) above 98%
- Inert vitrified slag suitable for building material reuse
- Batch feeding with automatic charging system
- PLC + HMI automatic control, easy operation
Technical Parameters
| Furnace Type | DC Electric Arc Furnace |
| Rated Transformer Power | 3000 kVA |
| Processing Capacity | 4-6 tons electroplating sludge per day |
| Melting Temperature | 1500-1600°C |
| Electrode Diameter | 300 mm |
| Secondary Voltage | 221-110 V |
| Metal Recovery | Ni, Cu, Cr, Zn recovery above 98% |
| Slag Discharge | Inert vitrified slag for building materials |
| Feeding Mode | Batch feeding with automatic charging |
| Control System | PLC + HMI automatic control |
| Cooling System | Closed-loop water cooling |
| Installation | Skid-mounted, low footprint design |
Applications
On-site electroplating sludge treatment, metal finishing plant waste, chemical sludge, PCB industry sludge and other hazardous solid wastes containing heavy metals.
Support and Services
We supply designing, manufacturing, installation and commissioning with turn-key service. Customized design according to the sludge composition and capacity of your plant is available. Please send us your project information and we will provide a proposal immediately.
FAQ
Q1: Are you a trading company or manufacturer? A: We are a manufacturer. Q2: How long is your delivery time? A: Generally 60 days, depending on quantity. Q3: What is the term of payment? A: 30% T/T in advance, balance before shipment.
If you are interested in this equipment, please don't hesitate to contact us!
