DC Electric Arc Furnace 5000kVA Electroplating Sludge Smelting Heavy Metal Recovery Equipment
| Place of Origin | China |
|---|---|
| Brand Name | Shaanxi Chengda |
| Certification | ISO 9001 |
| Model Number | HX-ES-5000 |
| Minimum Order Quantity | 1 unit |
| Price | The price will be negotiated based on the technical requirements and supply scope of Party A |
| Packaging Details | Discuss according to the specific requirements of Party A |
| Delivery Time | 2 months |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | Complete production supply chain, supply on time, and meet quality standards |
Product Details
| Furnace Type | DC Electric Arc Furnace | Rated Transformer Power | 5000 KVA |
|---|---|---|---|
| Processing Capacity | 8-10 Tons Electroplating Sludge Per Day | Melting Temperature | 1500-1600 C |
| Electrode Diameter | 350 Mm | Secondary Voltage | 240-121 V |
| Heavy Metal Recovery | Ni, Cu, Cr, Zn Recovery Rate Above 98% | Slag Discharge | Granulated Inert Vitrified Slag |
| Feeding Mode | Continuous Automatic Feeding | Control System | PLC + HMI Automatic Control |
| Cooling System | Closed-loop Water Cooling | Power Supply | 35 KV / 50 Hz |
| Highlight | DC electric arc furnace 5000kVA,electroplating sludge smelting equipment,heavy metal recovery furnace |
||
Product Description

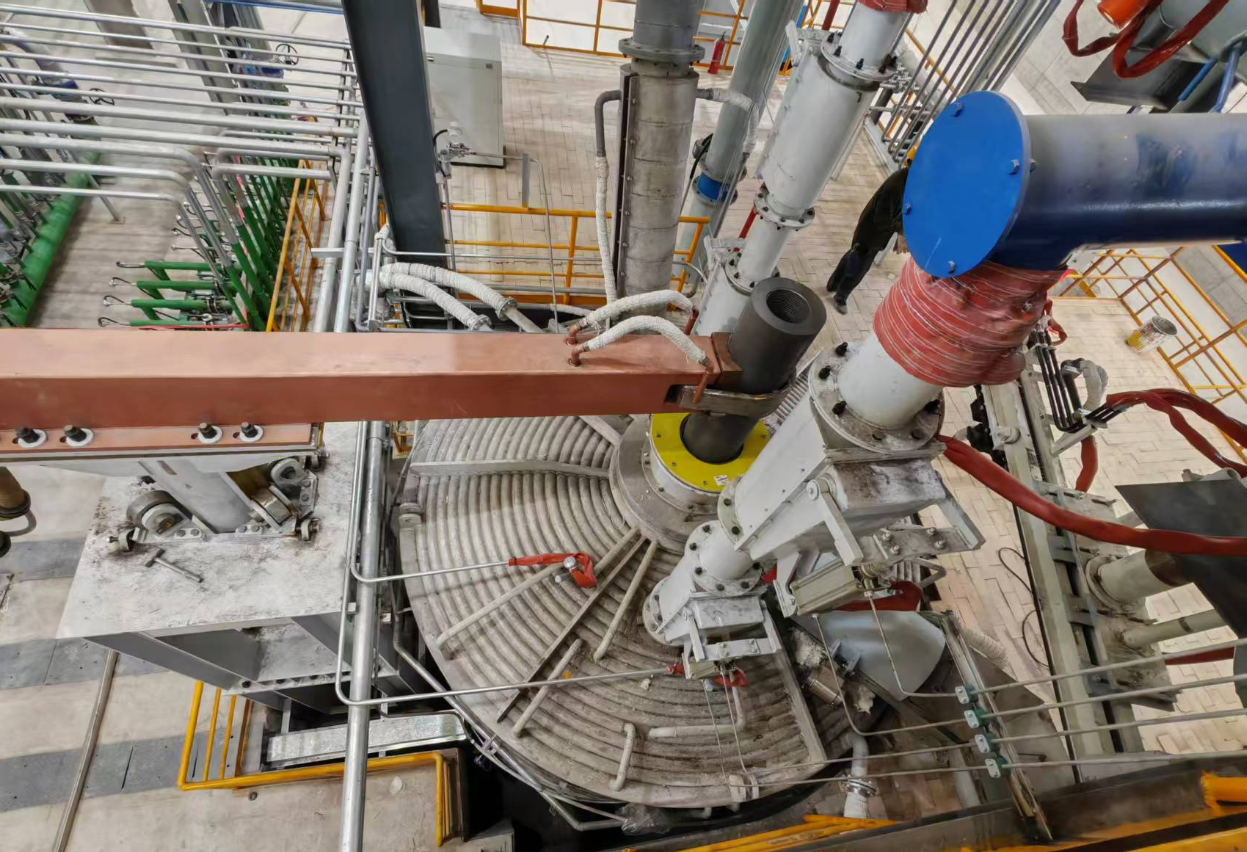

DC Electric Arc Furnace for Electroplating Sludge Smelting
The 5000kVA DC electric arc furnace is specially designed for the smelting treatment of electroplating sludge, a typical hazardous solid waste generated by electroplating and metal surface treatment plants. Using a stable DC arc as the heat source, the furnace melts the sludge at 1500-1600°C, recovering valuable heavy metals such as nickel, copper, chromium and zinc, while converting the remaining residue into inert vitrified slag that can be safely disposed of or reused in building materials.
Features
- Heavy metal recovery rate above 98% (Ni, Cu, Cr, Zn)
- Hazardous waste volume reduced by more than 85%
- Inert slag meets environmental landfill standards
- Stable DC arc with low electrode consumption
- Continuous automatic feeding for high throughput
- PLC + HMI automatic control with remote monitoring
Technical Parameters
| Furnace Type | DC Electric Arc Furnace |
| Rated Transformer Power | 5000 kVA |
| Processing Capacity | 8-10 tons electroplating sludge per day |
| Melting Temperature | 1500-1600°C |
| Electrode Diameter | 350 mm |
| Secondary Voltage | 240-121 V |
| Heavy Metal Recovery | Ni, Cu, Cr, Zn recovery rate above 98% |
| Slag Discharge | Granulated inert vitrified slag |
| Feeding Mode | Continuous automatic feeding |
| Control System | PLC + HMI automatic control |
| Cooling System | Closed-loop water cooling |
| Power Supply | 35 kV / 50 Hz |
Applications
Electroplating sludge treatment, metal surface treatment waste, chemical sludge, PCB industry sludge, battery manufacturing waste and other hazardous solid wastes containing heavy metals.
Support and Services
We provide foundation layout, installation, commissioning and operator training with turn-key service. Our engineers can be sent to your factory for installation and debugging. Customized design according to your sludge composition and capacity requirements is available.
FAQ
Q1: Are you a trading company or manufacturer? A: We are a manufacturer. Q2: How long is your delivery time? A: Generally 60 days, depending on quantity. Q3: What is the term of payment? A: 30% T/T in advance, balance before shipment.
If you are interested in this equipment, please don't hesitate to contact us!
