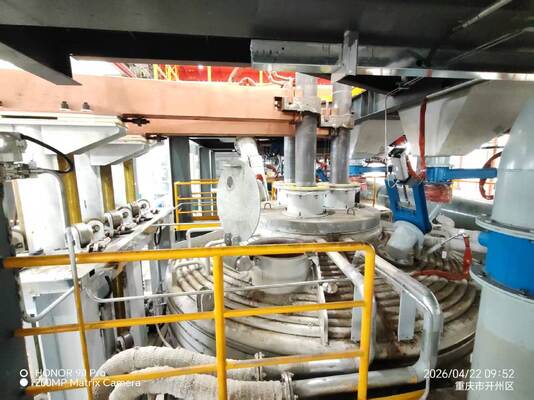

Multi-Electrode DC Electric Arc Furnace 5000KVA Rated Capacity for Vanadium-Titanium Slag Resource Recovery ISO 9001
| Place of Origin | Shaanxi, China |
|---|---|
| Brand Name | Shaanxi Chengda |
| Certification | ISO 9001:2015 |
| Model Number | Multi-Electrode DC EAF-VTS 5000 |
| Minimum Order Quantity | 1 Set |
| Price | The price will be negotiated based on the technical requirements and supply scope of Party A |
| Packaging Details | Discuss according to the specific requirements of Party A |
| Delivery Time | 2-3 months |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | Complete production supply chain, supply on time, and meet quality standards |
Product Details
| Furnace Type | Multi-Electrode DC Electric Arc Furnace | Transformer Capacity | 5000 KVA |
|---|---|---|---|
| Operating Temperature | 1500-1700°C | Electrode Configuration | 3 Graphite Electrodes Φ400-500mm |
| Vanadium Recovery Rate | ≥85% | Iron Recovery Rate | ≥98% |
| Power Factor | 0.95-0.98 | Control System | PLC Fully Automatic Control |
| Cooling Mode | Strong Oil-Water Combined Cooling | Daily Processing Capacity | 40-60 Tons |
| Highlight | 5000KVA DC electric arc furnace,vanadium-titanium slag recovery furnace,ISO 9001 hazardous waste treatment equipment |
||
Product Description
Multi-Electrode DC Electric Arc Furnace for Vanadium-Titanium Slag Resource Recovery
This Multi-Electrode DC Electric Arc Furnace is a specialized smelting solution engineered for high-efficiency resource recovery from vanadium-titanium slag. Utilizing advanced multi-electrode DC arc technology, it achieves superior metal recovery rates and energy efficiency compared to conventional single-electrode or AC furnaces, making it the optimal choice for vanadium-titanium magnetite processing enterprises and metallurgical slag recycling operations.
Core Working Principle
The furnace employs three independently controlled DC graphite electrodes generating stable, high-energy-density plasma arcs between electrodes and the furnace bottom anode. The operating temperature reaches 1500-1700°C, ensuring complete melting of vanadium-titanium slag and efficient reduction of vanadium and iron oxides. With the addition of carbonaceous reductants and lime flux, vanadium-iron alloy settles at the furnace bottom while titanium-rich slag floats on the upper layer, enabling clean slag-metal separation.
Key Technical Advantages
Multi-Electrode DC Technology
- Triple Electrode Configuration: Three Φ400-500mm graphite electrodes with independent lifting and power control, eliminating arc deflection common in single-electrode DC furnaces.
- Uniform Heat Distribution: Multi-point arc discharge creates a balanced thermal field, reducing cold spots and improving melt homogeneity by 30% compared to single-electrode designs.
- Enhanced Electromagnetic Stirring: The multi-electrode arc interaction generates stronger molten pool stirring, accelerating reduction reactions and shortening smelting cycles by 15-20%.
Superior Resource Recovery
- Vanadium Recovery Rate ≥85%: Deep reduction environment ensures maximum vanadium extraction from complex vanadium-titanium slag matrices.
- Iron Recovery Rate ≥98%: Near-complete iron reduction transforms waste slag into valuable vanadium-iron alloy.
- Titanium Slag By-product: Titanium-enriched slag can be further processed for titanium dioxide production or utilized as high-grade refractory raw material.
Energy Efficiency & Environmental Performance
- Power Factor 0.95-0.98: No reactive power compensation required, reducing electrical infrastructure costs.
- 30% Lower Electrode Consumption: DC operation combined with optimized multi-electrode control reduces graphite electrode wear vs. AC furnaces.
- CO-rich Off-gas Utilization: High-temperature flue gas undergoes secondary combustion and waste heat recovery, reducing auxiliary energy consumption by 10-15%.
- Closed Flue Gas System: Integrated bag filter and desulfurization ensure compliance with EPA and EU emission standards (particulate matter ≤10mg/m³).
Intelligent Control & Reliable Operation
- PLC Full Automation: S7-1500 PLC with HMI touchscreen for real-time monitoring of current, voltage, temperature, and electrode position.
- Electrode Auto-Regulation: PID closed-loop control with German Parker proportional valves enables precise electrode height adjustment (±2mm).
- Multi-Point Bottom Temperature Monitoring: Real-time furnace bottom lining temperature detection with automatic alarm and power adjustment.
- Furnace Body Tilting: Hydraulic forward tilting up to 35° for complete alloy tapping and 15° for slag discharge.
Equipment Structure
| Component | Specification |
|---|---|
| Furnace Shell | Welded steel plate with magnesia-carbon composite refractory lining |
| Furnace Cover | Semi-enclosed water-cooled tubular design with observation ports |
| Electrode System | 3 * Φ400-500mm graphite electrodes, independent hydraulic lifting |
| Bottom Anode | Multi-point contact conductive bottom electrode, anti-arc deflection design |
| Power Supply | Thyristor rectifier 5000KVA, 35kV primary / 150-300V secondary |
| Short Network | Large-section water-cooled cable + copper tube parallel inverse arrangement |
| Hydraulic System | Hydraulic pump station with accumulator for electrode, cover, and tilting control |
| Cooling System | Pressurized closed-loop water cooling with temperature and flow monitoring |
| Charging System | Multi-point automatic feeding with ring distributor and screw conveyor |
| Flue Gas Treatment | Secondary combustion chamber + quench tower + bag filter + desulfurization |
Technical Parameters
| Parameter | Value |
|---|---|
| Transformer Capacity | 5000 KVA |
| Primary Voltage | 35 kV |
| Secondary Voltage | 150-300 V (multi-tap regulation) |
| Operating Temperature | 1500-1700°C |
| Furnace Shell Diameter | Φ5200 mm |
| Electrode Diameter | Φ400-500 mm * 3 electrodes |
| Electrode Pitch Circle | Φ1800 ± 100 mm |
| Daily Processing Capacity | 40-60 tons |
| Power Consumption | 800-1000 kWh/ton product |
| Electrode Consumption | 2-3 kg/ton (60% lower than AC) |
| Vanadium Recovery Rate | ≥85% |
| Iron Recovery Rate | ≥98% |
| Power Factor | 0.95-0.98 |
| Cooling Water Consumption | ~80 m³/h |
| Lining Service Life | 300-500 heats |
Application Scope
- Vanadium-titanium magnetite smelting slag resource recovery
- Vanadium extraction tailings comprehensive utilization
- Metallurgical solid waste containing vanadium, titanium, and iron
- Low-grade vanadium-bearing slag deep reduction processing
- Ferroalloy production by-product slag recycling
After-Sales Service
- 1-year warranty on core components (electrode system, hydraulic system, transformer)
- Professional engineer team for on-site installation, commissioning, and operator training
- 24/7 remote technical support and troubleshooting
- Spare parts supply guarantee with global logistics network
- Lining replacement and furnace maintenance services available
Contact us today for a customized technical proposal and quotation based on your specific vanadium-titanium slag processing requirements.
