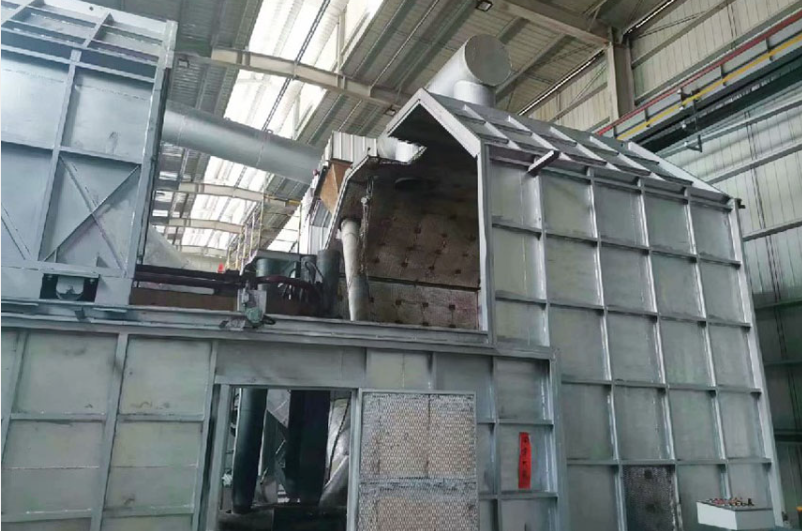

Aluminum Ash Treatment Electric Furnace (Calcium Aluminate Furnace)
| Place of Origin | China |
|---|---|
| Brand Name | Shaanxi Chengda |
| Certification | ISO 9001 |
| Model Number | Negotiate based on equipment processing capacity |
| Minimum Order Quantity | 1 unit |
| Price | The price will be negotiated based on the technical requirements and supply scope of Party A |
| Packaging Details | Discuss according to the specific requirements of Party A |
| Delivery Time | 2 months |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | Complete production supply chain, supply on time, and meet quality standards |
Product Details
| Durability | Long-lasting | Smelting Type | Silicon Manganese Hot Melt Slag |
|---|---|---|---|
| Installation Method | Easy To Cut And Shape | Chemical Resistance | Resistant To Most Chemicals |
| Product Standard | Customizable | Maintenanceinterval | Every 1000 Operating Hours Or As Needed |
| Region | Shaanxi, China | Specifications And Models | Customizable |
| Highlight | Aluminum ash treatment electric furnace,Calcium aluminate furnace equipment,Solid hazardous waste treatment furnace |
||
Product Description
Aluminum Ash Treatment Electric Furnace (Calcium Aluminate Furnace)
Aluminum Ash Detoxification · Pre-Melted Refining Slag · High-Temperature Melting · Energy Saving & Low Consumption · Solid Waste Recycling
The aluminum ash treatment electric furnace (also known as calcium aluminate furnace, pre-melted refining slag arc furnace, aluminum ash melting detox furnace) is the core thermal equipment for aluminum ash hazardous waste recycling. It is specially designed for primary aluminum ash, secondary aluminum ash, aluminum slag, aluminum ash powder. Through high-temperature melting, slagging and reaction synthesis at 1500–1800℃, Al₂O₃ and CaO in aluminum ash react to form calcium aluminate (pre-melted refining slag). Meanwhile, fluorine/nitrogen/salt harmful substances are solidified and metallic aluminum is recovered, realizing triple values of hazardous waste detoxification + high-value products + zero discharge.
Product Uses: Steelmaking deoxidizer & desulfurizer, ladle refining slag, cement/refractory raw material.
Applications: Aluminum smelters, aluminum processing enterprises, hazardous waste disposal centers, metallurgical auxiliary material plants.
1. Equipment Composition (Furnace Body + Auxiliary Systems)
1.1 Furnace Body (Core)
- Furnace Type: Three-phase AC arc furnace / DC plasma arc furnace (dual-electrode bottomless anode, anti-piercing).
- Shell: 20–35mm thick steel plate with annular stiffeners, high deformation resistance and rigidity.
- Lining: High-alumina bricks + magnesia-carbon bricks + corundum castable, refractoriness ≥1850℃, excellent aluminum slag corrosion and thermal shock resistance, service life ≥12 months.
- Roof: Fully sealed water-cooled roof with electrode holes + temperature/feeding/flue gas ports, suppressing dust and fluoride escape, meeting environmental standards.
- Tapping Openings: Water-cooled + refractory lining; lower metallic aluminum outlet, upper calcium aluminate slag outlet; tapping temperature 1550–1650℃.
1.2 Electrode System
- Electrodes: High-purity graphite electrodes, φ350–600mm, high temperature resistance, low consumption, excellent conductivity.
- Cross Arm: Water-cooled copper alloy, high current capacity, low impedance, stable power supply.
- Lifting: PLC fully automatic closed-loop control for precise arc length/temperature regulation, fast response, small fluctuation.
1.3 Power Supply & Electrical System
- Transformer: 3000–20000kVA, multi-voltage gears (180–450V) for melting/reaction/clarification.
- Rated Current: 8000–35000A, low short-network impedance, high thermal efficiency.
- Control: PLC + touch screen, integrating temperature control, power regulation, automatic feeding, fault alarm, data traceability, fully automatic operation.
1.4 Raw Material Pretreatment & Batching
- Pretreatment: Aluminum ash screening + magnetic separation + ball milling (80% ≤100 mesh), removing iron impurities, improving reaction efficiency.
- Automatic Batching: Aluminum ash + limestone/slaked lime, Al₂O₃/CaO molar ratio 1:1–1:1.2, PLC dynamic metering, error ≤±0.5%.
- Mixing & Homogenization: Twin-shaft mixer, mixing 30–45min, uniformity CV ≤5%.
1.5 Environmental Protection & Auxiliaries
- Water Cooling: Forced cooling for shell, roof and cross arm; surface temperature ≤35℃, safe and reliable.
- Flue Gas Treatment: Sealed + baghouse dust removal + fluorine & denitration + waste heat recovery; dust ≤10mg/m³, fluoride compliance.
- Hydraulic Tilting (Optional): 0–45° tilting, easy for slag removal, cleaning and maintenance.
2. Main Technical Parameters (Standard Models, Customizable)
2.1 Processing Capacity
- Raw Materials: Primary/secondary aluminum ash, aluminum slag (moisture ≤5%)
- Capacity: 10–60t/h (240–1440t/d)
- Power Consumption per Ton: ≤680kWh/t (DC furnace ≤600kWh/t)
2.2 Smelting & Product Indicators
- Working Temperature: 1500–1800℃ (peak 1850℃)
- Calcium Aluminate Composition: CaO 45–50%, Al₂O₃ 35–40%, SiO₂≤5%, S/P≤0.5%
- Metallic Aluminum Recovery Rate: ≥92% (aluminum grade ≥98%)
- Fluorine Fixation Rate: ≥98% (solid waste harmless)
- Product Form: Block/granular (5–35mm), pre-melted dense, non-porous
2.3 Furnace Body Parameters
- Hearth Size: φ2800–5000mm × H3200–5500mm (circular)
- Transformer Capacity: 3000/6000/10000/16000kVA
- Electrode Diameter: 350/400/500/600mm
- Control Mode: Fully automatic PLC + manual dual mode
2.4 Environmental Protection & Energy Consumption
- Dust Emission: ≤10mg/m³
- Fluoride Emission: ≤3mg/m³
- Tailings Utilization Rate: 100% (calcium aluminate products for sale)
3. Core Advantages
- Hazardous Waste Detoxification, High-Value Conversion: High-temperature melting fixes fluorine/nitrogen/salt, aluminum ash becomes steelmaking pre-melted slag, value increased by 3–5 times per ton.
- High Efficiency & Energy Saving, Low-Cost Operation: DC furnace saves 15% power, 35% electrodes, 20% capacity vs AC furnace; electromagnetic stirring for more complete reaction.
- High-Temperature Melting, Stable Quality: Pre-melted at 1500–1800℃, uniform composition, low melting point, fast melting, high deoxidation/desulfurization efficiency.
- Sealed & Eco-Friendly, Safe & Reliable: Fully sealed + high-efficiency fluorine & dust removal, no leakage, low emission; intelligent monitoring + safety interlock, reliable long-term continuous operation.
- High Customization & Wide Adaptability: Customized by aluminum ash composition, capacity and environmental requirements, suitable for small to large aluminum plant solid waste treatment.
4. Application Fields
- Aluminum Smelters: Primary/secondary aluminum ash, aluminum slag harmlessness & recycling
- Aluminum Processing Enterprises: Casting aluminum ash recovery & high-value utilization
- Metallurgical Auxiliary Plants: Pre-melted calcium aluminate refining slag large-scale production
- Hazardous Waste Disposal Centers: Aluminum ash hazardous waste reduction, detoxification, recycling
- Steelmaking Industry: Ladle deoxidation & desulfurization, steel purification refining slag
5. Models & Services
- Standard Models: 10t/h / 25t/h / 40t/h / 60t/h Calcium Aluminate Electric Furnace
- Customization: Hearth size, transformer capacity, automation level, environmental accessories
- Turnkey Service: Design, manufacturing, installation & commissioning, training, after-sales support
