Fused Corundum Furnace For White Corundum , Spinel , Mullite And Other Abrasives And Refractory Materials Melting

Place of Origin Shaanxi, China
Brand Name Shaanxi Chengda
Certification ISO9001
Model Number Corundum Furnace
Minimum Order Quantity 1set
Price Price and specific model specifications can be agreed upon.
Packaging Details Qualified new product
Delivery Time 15-20work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 2set per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

refractory materials melting Fused Corundum Furnace

,

Corundum melting Fused Corundum Furnace

Leave a Message
Product Description

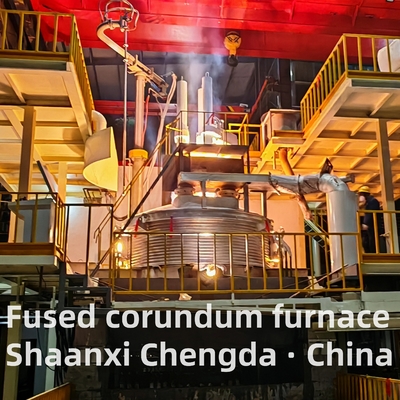

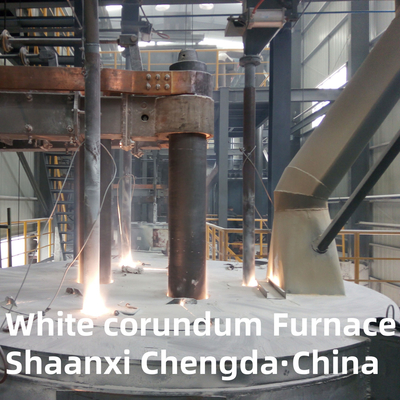

Fused corundum furnace



Main Application: white corundum melting furnace, used for white corundum, spinel, mullite and other abrasives and refractory materials melting.



Equipment features: The furnace cover is unscrewed, the furnace top is equipped with an observation device and a water-cooled charging port; Large section water-cooled cable, hydraulic transmission;

Automatic adjustment of electrode lift;

Electrode holder material is chrome copper, stainless steel belt type tightening;

High voltage electrical control using vacuum switchgear, with a complete range of voltage, current, power and electrical measurement;

Electric furnace transformer adopts low loss and energy saving transformer; Low voltage electrical control using PLC programmable controller control;

The cooling water system has pressure and water temperature monitoring, sound and light alarm;

The most advanced centralized control system realizes the production line integration, intelligent, control, warning, protection system, and reliable production line operation. It can provide the possibility for users' data management network.



Equipment composition: Furnace body, furnace body tilting mechanism, furnace cover, furnace cover lifting and rotating device, electrode lifting device, short network system, transformer, water cooling system, hydraulic system, low pressure system, high pressure system, automatic control system, etc.
