TOP3 South Korea Non Ferrous Metal Tail Slag Fire Smelting Equipment

Place of Origin Shaanxi, China
Brand Name Shaanxi Chengda
Certification ISO9001
Model Number Non-ferrous metal tail slag fire smelting equipment-Copper smelting furnace
Minimum Order Quantity 1set
Price Price and specific model specifications can be agreed upon.
Delivery Time 10-15work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 2set per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply System 3000KVA Frequency 60±0.5Hz
Working Temperature 1000~1600℃; Using Bell Feeding Automatic Feeding
Country Of Origin Shaanxi, China Core Component Shelf Life 1year
Highlight

Non Ferrous Fire Smelting Equipment

,

Fire Smelting Equipment Non Ferrous

,

Metal Tail Slag smelting equipment

Leave a Message
Product Description

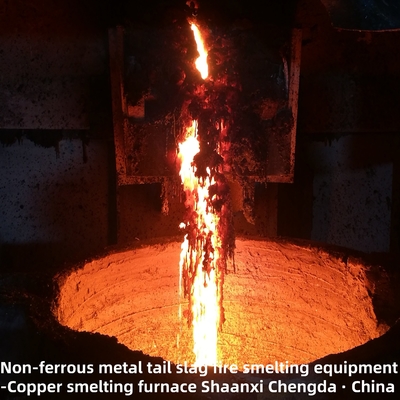

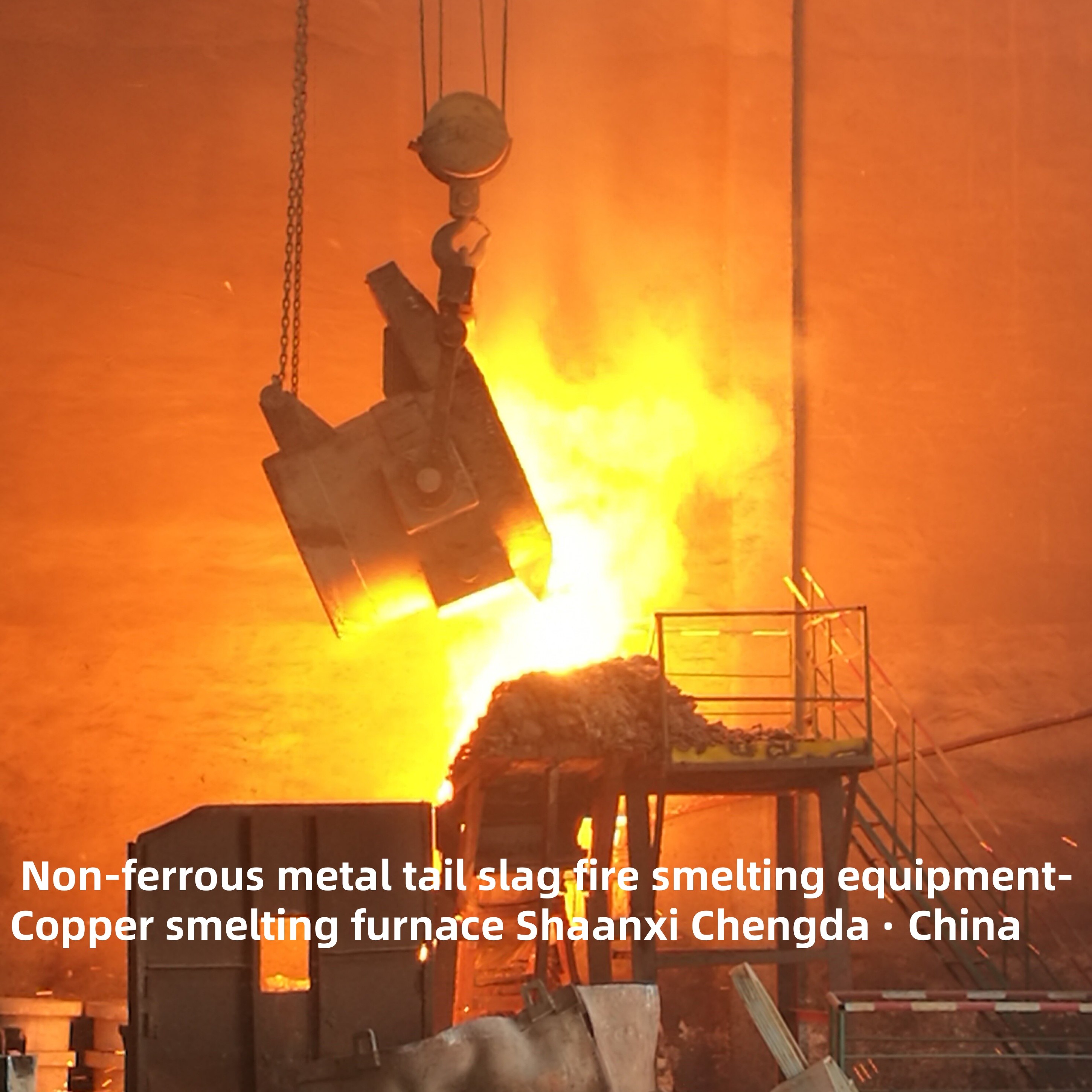

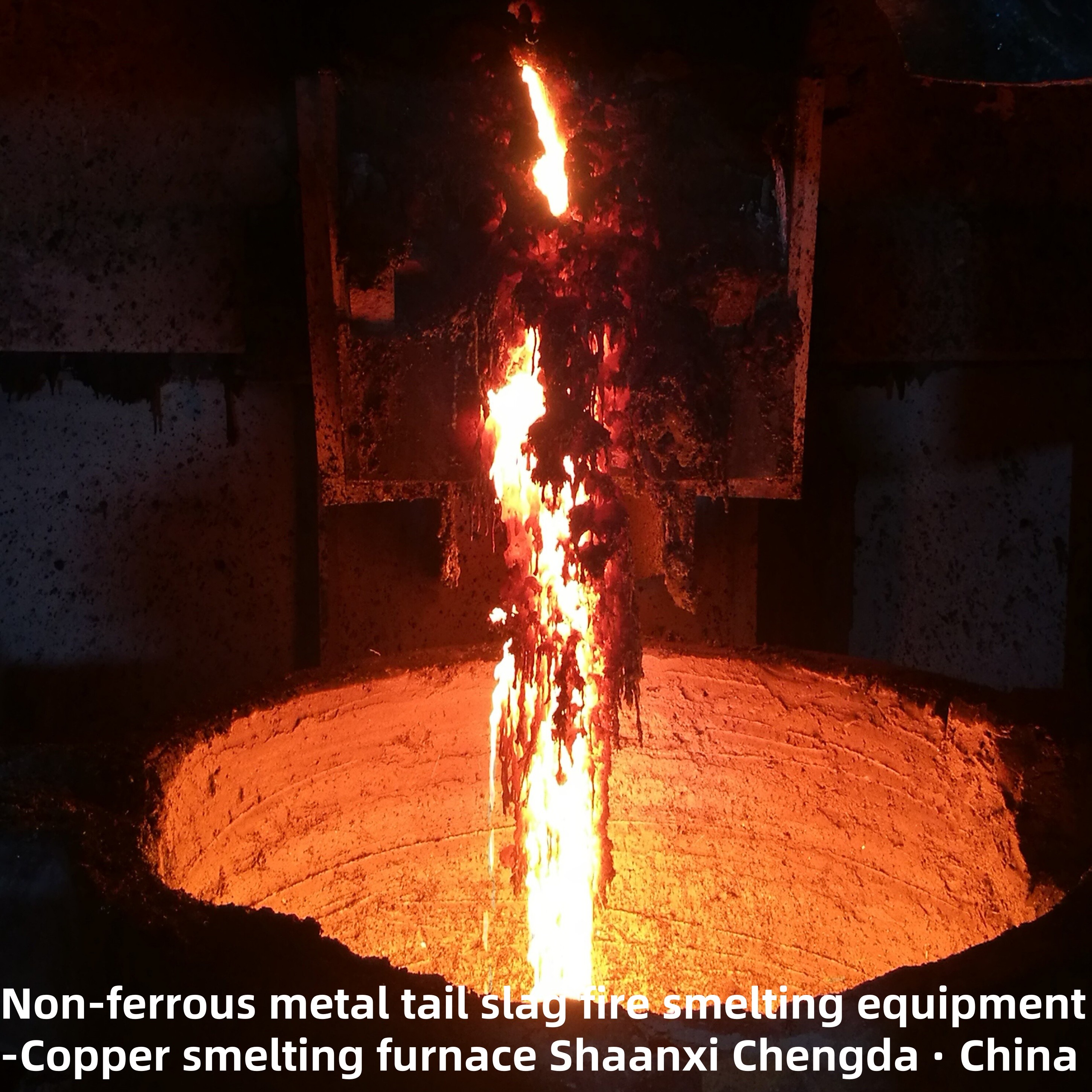

South Korea non-ferrous metal tail slag fire smelting equipment-Copper smelting furnace



Equipment use:
  Used for smelting copper powder, copper mud, recycled copper, copper concentrate and other raw materials.



Equipment matching:

  The liquid solution of the Huaye furnace is added to the electric furnace, and the slag and copper are produced after being melted by adding the additive.



Equipment structure features:
  1) Choose a fixed furnace body.
  2) Plate water-cooled furnace cover, electric furnace using integral knotted resistant material, top feeding method;
  3) The copper outlet is equipped with a fast eye opener;
  4) The electrode lifting adopts full hydraulic proportional valve to control the lifting of the cylinder, and realizes the automatic lifting of the electrode, which is stable and reliable.
  5) Each phase uses compensator, through-wall copper pipe, large-section water-cooled cable, conductive copper pipe, graphite electrode, etc. to form a space triangle arrangement of energy-saving short network.
  6) Advanced and reliable proportional valve electrode lifting automatic regulator: automatic and manual operation can be achieved. Arc current setting range: 25%-120%, electrode response time: 0.15S.
  7) The electrode holder adopts water-cooled stainless steel belt clamping, which is reliable and has a long life. The electrode clamp is driven by hydraulic pressure.
  8) Cooling water system has pressure, water temperature monitoring, accident alarm.
  9) Conductive cross arm adopts coppered steel composite plate structure, conductive area is balanced, clean and reliable, and the accident rate is low.
  10) Electric furnace control computer management, Siemens PLC automatic control system, low-voltage electrical components using Schneider electrical components, complete sets of electrical equipment advanced safe and reliable.



Mechanical structure description and working principle:
  This equipment is designed and manufactured according to GBl0067.1-4 "Basic Technical Conditions for Electric Heating Equipment".
  The main technologies used in this equipment are:
  Furnace body fixed structure design;
  Plate water cooled furnace cover:
  Energy-saving short net;
  Copper and steel composite plate hydraulic lifting conductive transverse arm;
  Large section water cooled cable;
  PLC automatic control system;
