TOP3 Nonferrous metal pyrometallurgical equipment with ISO 9001 Certification

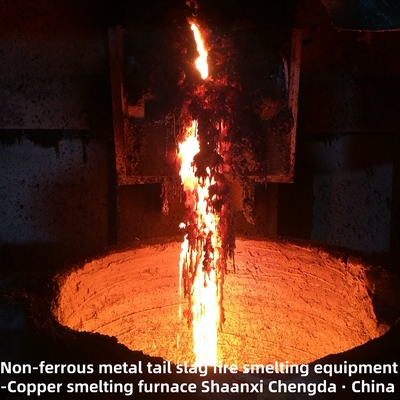

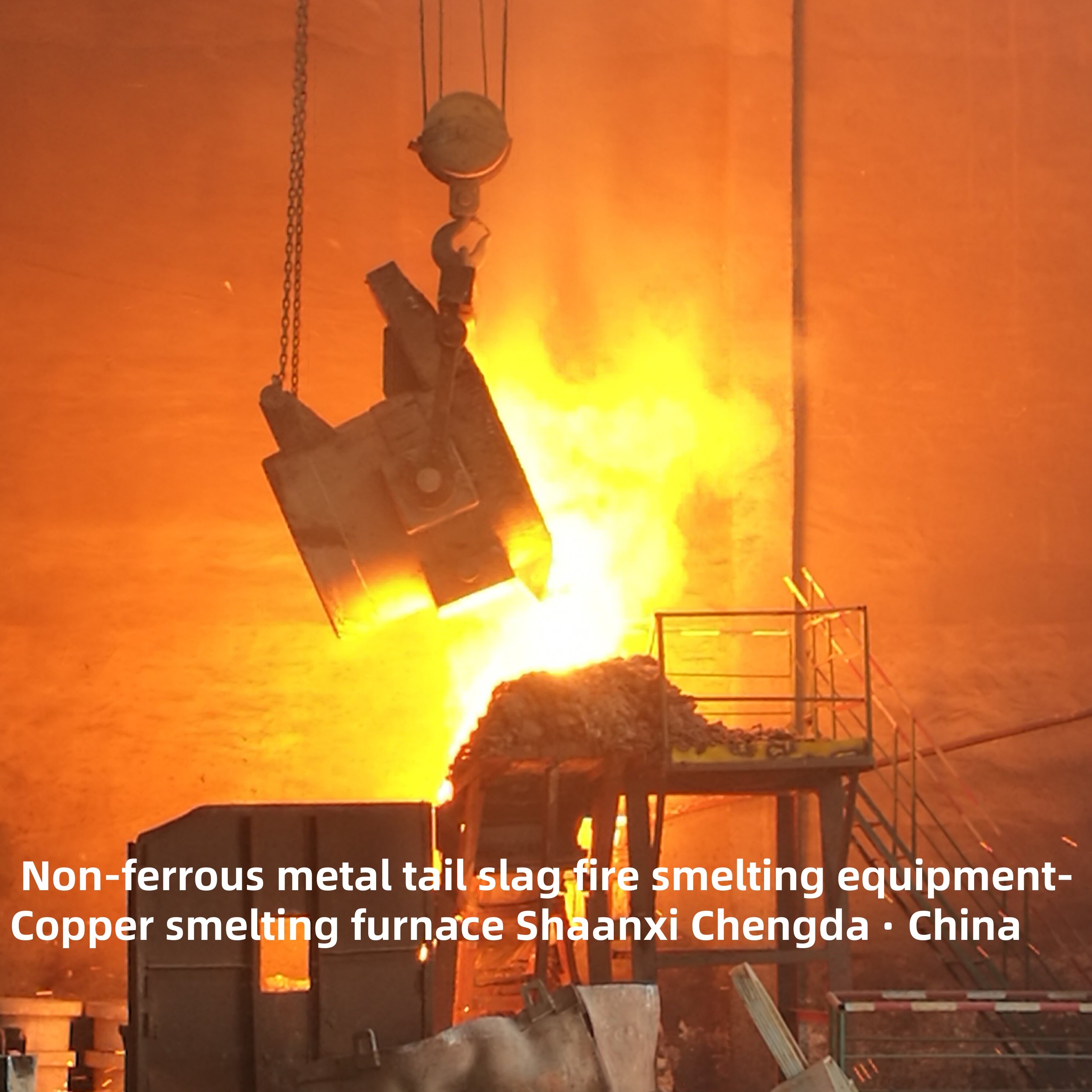

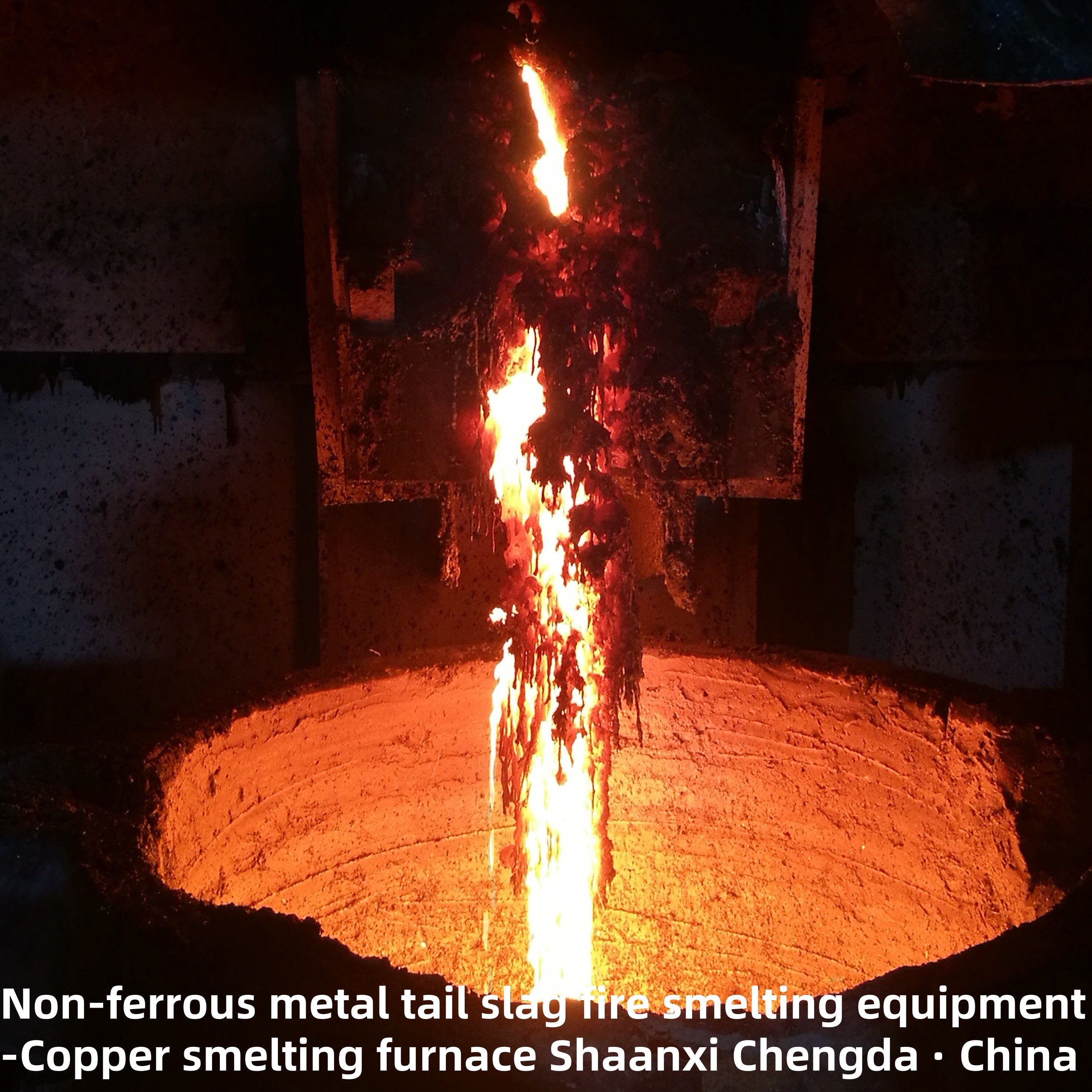

 Non-ferrous metal tail slag fire smelting equipment-Copper smelting furnace

Equipment use:
  Used for smelting copper powder, copper mud, recycled copper, copper concentrate and other raw materials.

Equipment matching:

  The liquid solution of the Huaye furnace is added to the electric furnace, and the slag and copper are produced after being melted by adding the additive.

Equipment structure features:
  1) Choose a fixed furnace body.
  2) Plate water-cooled furnace cover, electric furnace using integral knotted resistant material, top feeding method;
  3) The copper outlet is equipped with a fast eye opener;
  4) The electrode lifting adopts full hydraulic proportional valve to control the lifting of the cylinder, and realizes the automatic lifting of the electrode, which is stable and reliable.
  5) Each phase uses compensator, through-wall copper pipe, large-section water-cooled cable, conductive copper pipe, graphite electrode, etc. to form a space triangle arrangement of energy-saving short network.
  6) Advanced and reliable proportional valve electrode lifting automatic regulator: automatic and manual operation can be achieved. Arc current setting range: 25%-120%, electrode response time: 0.15S.
  7) The electrode holder adopts water-cooled stainless steel belt clamping, which is reliable and has a long life. The electrode clamp is driven by hydraulic pressure.
  8) Cooling water system has pressure, water temperature monitoring, accident alarm.
  9) Conductive cross arm adopts coppered steel composite plate structure, conductive area is balanced, clean and reliable, and the accident rate is low.
  10) Electric furnace control computer management, Siemens PLC automatic control system, low-voltage electrical components using Schneider electrical components, complete sets of electrical equipment advanced safe and reliable.

Mechanical structure description and working principle:
  This equipment is designed and manufactured according to GBl0067.1-4 "Basic Technical Conditions for Electric Heating Equipment".
  The main technologies used in this equipment are:
  Furnace body fixed structure design;
  Plate water cooled furnace cover:
  Energy-saving short net;
  Copper and steel composite plate hydraulic lifting conductive transverse arm;
  Large section water cooled cable;
  PLC automatic control system;

FAQ:
Q1: Are you trading company or manufacturer?
A: We are manufacturer.
Q2: How long is your delivery time?
A: Generally it is 60 days, it is according to quantity requires.
Q3: What is the term of payment?
A: Payment <=1000USD,100%in advance. Payment>=1000USD,30% T/T in advance, balance before shipment.

lf you are interested in this equipment, please don't hesitate to contact us!

lf the machine is not suitable for your plant, please e-mail us the following information:

1. What's the quality standard of billet do you want to casting? ls it common carbon steel or low carbon steel?
2. What's the billet size and length?
3. Do you have melting furnace? lf yes, how many tons of furnace with how many quantity?
4. What's the capacity per hour? According to your information, we will offer high efficiency design and best price for it.
