TOP4 Chromium salt slag resource pyrometallurgical equipment with High Efficiency and Energy Saving

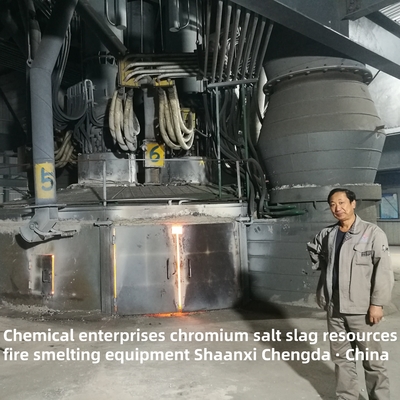

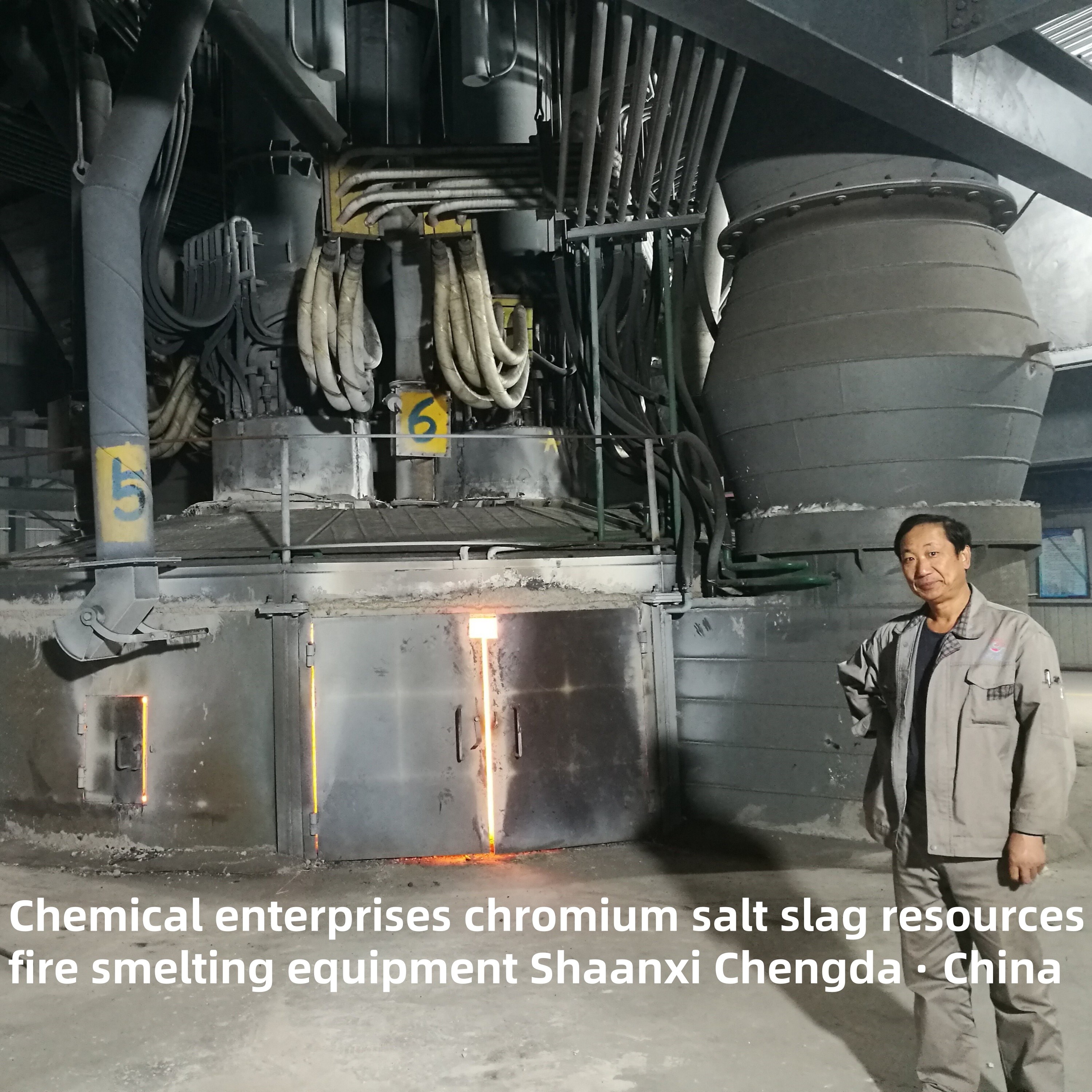

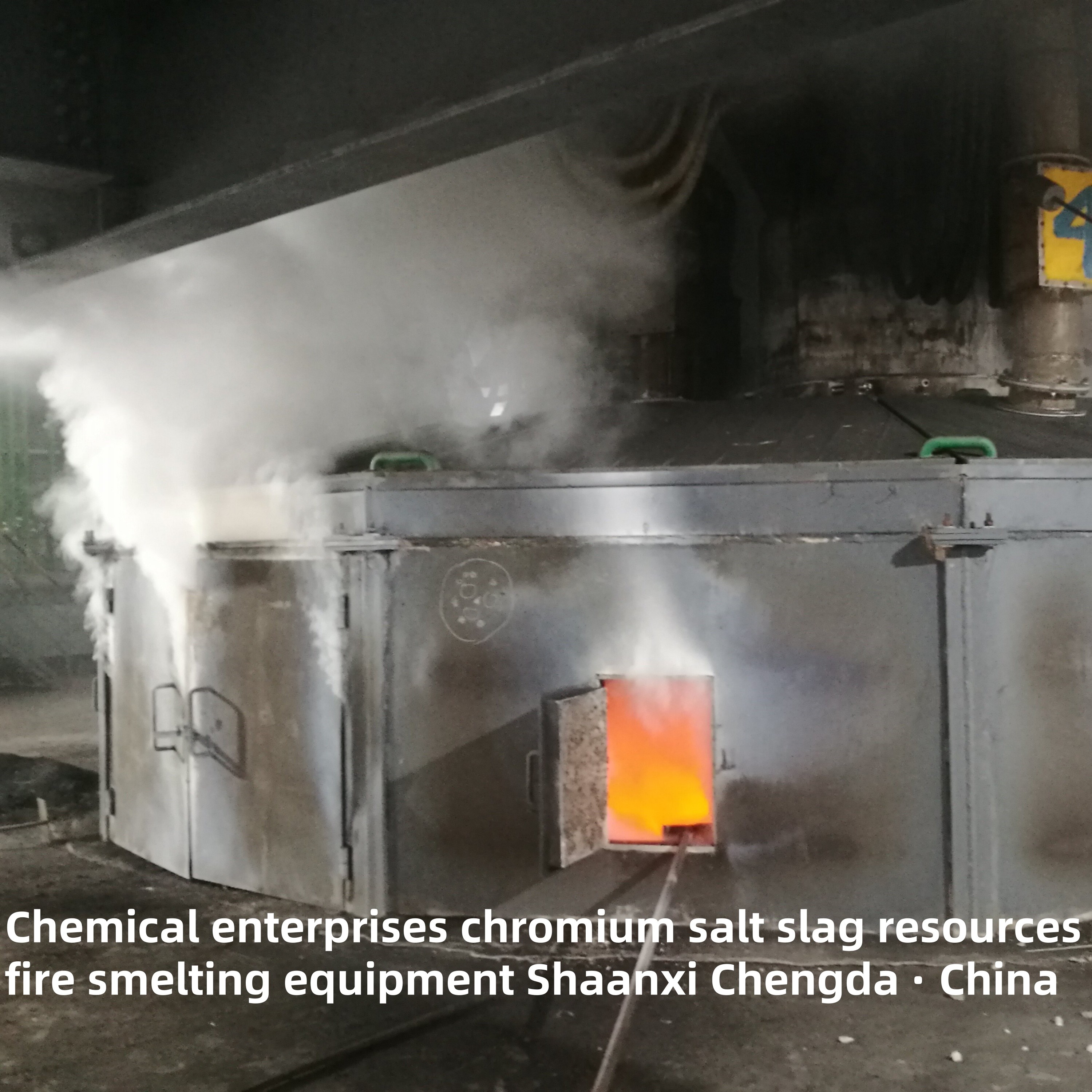

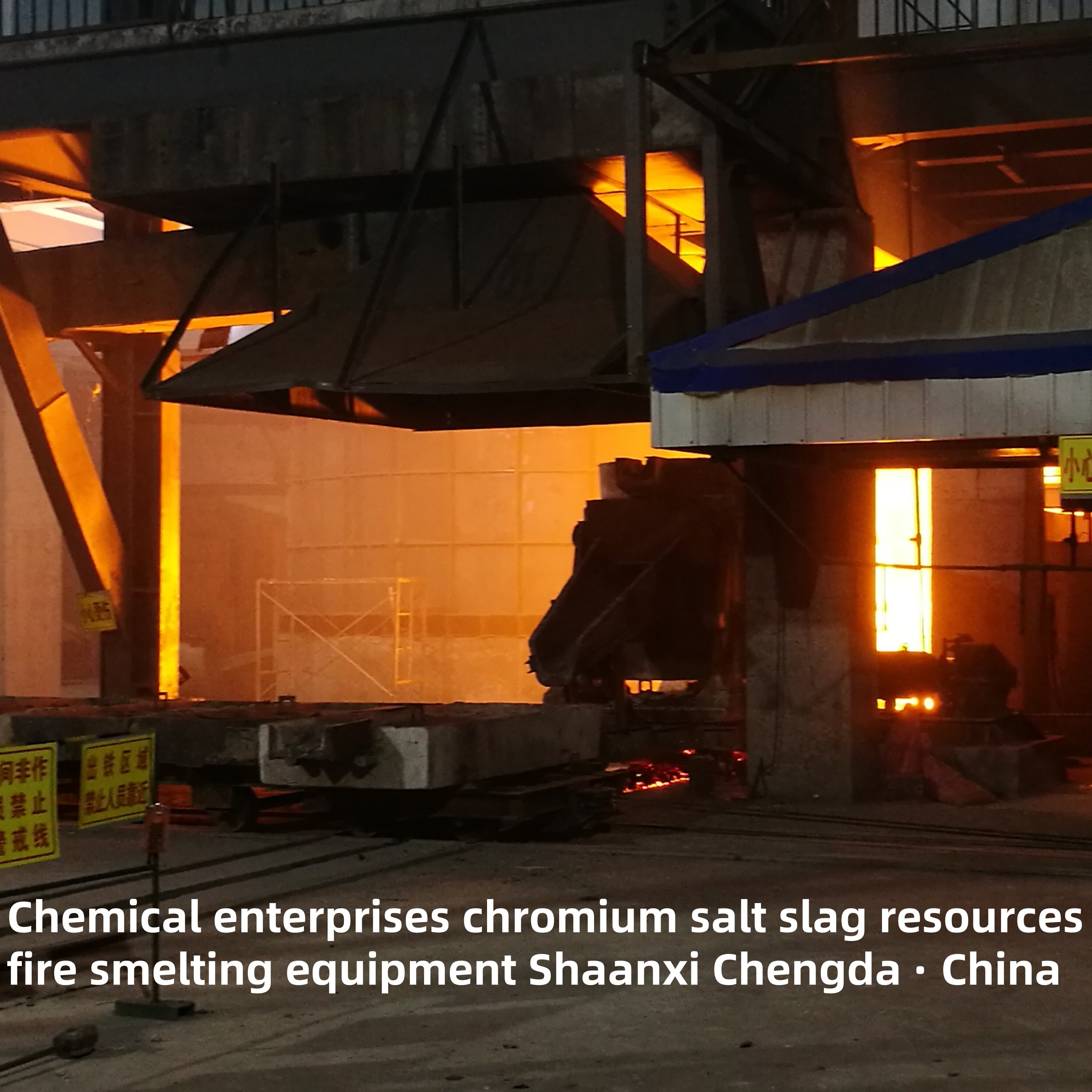

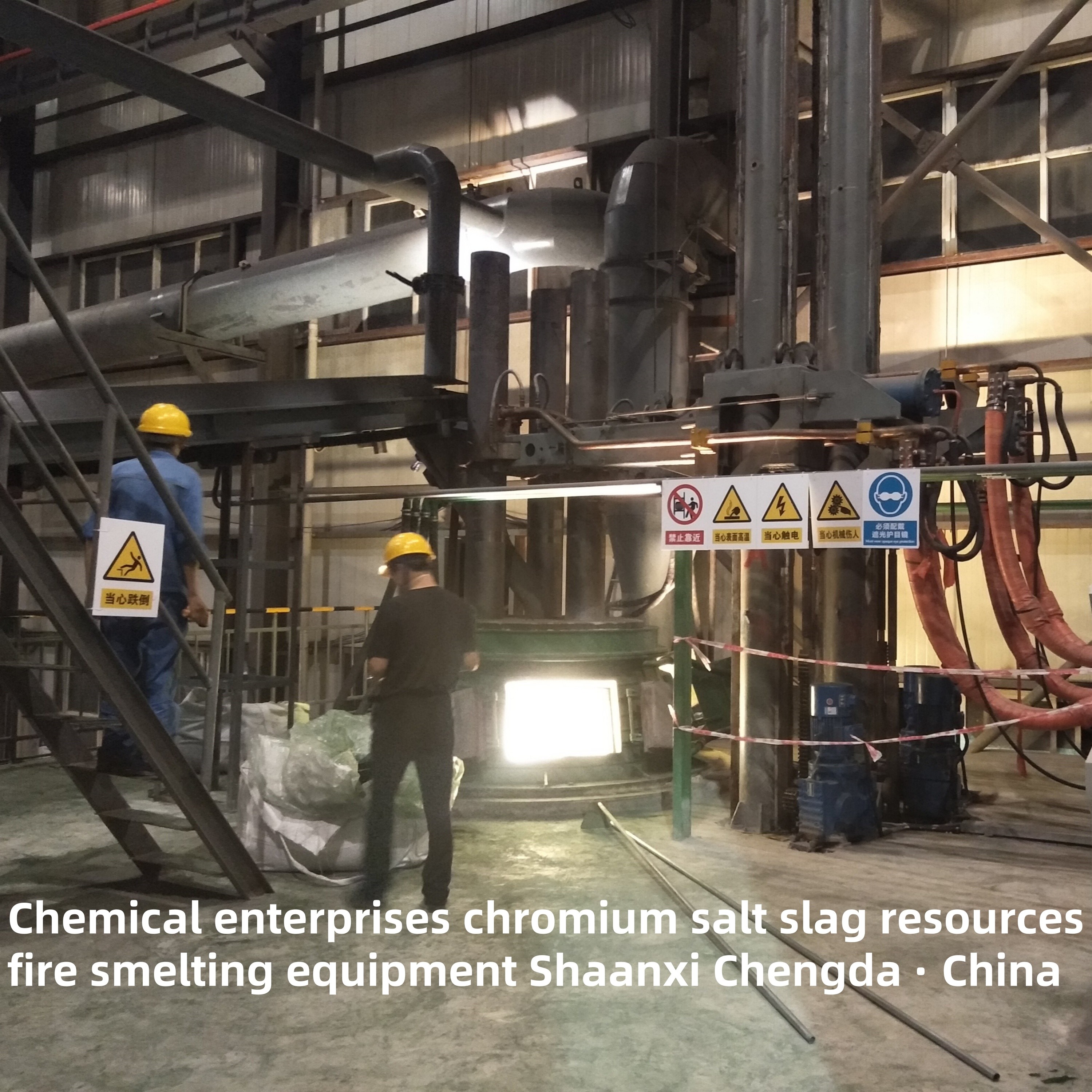

Chemical enterprises chromium salt slag resources fire smelting equipment

Production process:​

  The main raw materials of the special refining furnace, such as calcium-free chromium slag pellets, calcium-vanadium slag, blue carbon and silica, are respectively loaded into the distribution bin, batted by the weighing and measuring system, and fed into the feeding flat belt conveyor system through the lower mixing belt conveyor. The charging flat belt machine sends the raw materials to the high silo on the 17.50 meter platform of the electric furnace for storage. The material is put into the top feeding bin of the furnace by the distributing system composed of several belt sets, and then measured and weighed into the furnace through the feeding pipe in the furnace, and the thin material semi-open arc melting is carried out by continuous power supply. The slag and hot metal are discharged through the outlet, injected into the hot metal ladle and the intermediate slag ladle, and most of the slag is removed by high pressure water quenching method. After the oven is finished, the molten iron is driven to the casting span, and after sedation, the molten iron is cast to the ingot mold or continuous casting machine, after natural cooling and crushing, the crane is lifted to the iron box, and the cooling is finished into the warehouse.
  The flue gas of the electric furnace enters the CO combustion chamber, the smoke pipe is cooled, and the row pipe is cooled (waste heat boiler) into the high-temperature bag dust collector for treatment, and the dust is discharged after reaching the discharge standard of iron and steel smelting. The dust dust enters the temporary storage tank and is transported into the chromium salt system.

Features of this refiner:​

  1. Compared with 3500kvA electric arc furnace, the smelting power consumption of tons of products is reduced by 1830 degrees, down 28%.
9000kvA furnace smelting power consumption base is 4800 degrees /T, the actual 4670 degrees /T; 3500kvA furnace smelting power consumption standard is 6500 degrees /T; The 9000kvA furnace's combined power consumption is 1830 degrees /T lower than that of the 3500kvA furnace.
  2.Low electrode consumption.
  The 9000kvA furnace ton product consumes 0.012T of electrodes, which is 43% of the planned, and less than 30% of the 3500kvA furnace electrode consumption.
  3. The power factor to meet the design requirements.
  The design index of 9000kvA furnace power factor is ≥0.82, and the power factor in actual operation is about 0.90.
  4. Quality improvement.
  The quality of large furnaces and smaller furnaces have also been significantly improved, and the annual pass rate of ferrochrome has reached an average of 89%, which is nearly 5% higher than the plan, and the pass rate of small furnaces has increased by 20%.
  5. Basically realized submerged arc smelting.
  After a long time of exploration through the material ratio, electrode insertion depth, load size and other adjustments to basically achieve submerged arc smelting, furnace surface temperature is much lower than the test process, the circulating water temperature is significantly reduced.

Core Equipment Types

1. Slag Drying & Crushing Equipment: First dries the wet chromium salt slag to reduce moisture content, then crushes it into fine particles. This ensures uniform mixing with reducing agents (e.g., coal powder) in subsequent steps.
2. High-Temperature Reduction Furnace: The core unit of the system, mainly including rotary kilns and electric arc furnaces. It heats the mixed slag and reducing agents to 1200–1600°C, converting toxic hexavalent chromium into harmless trivalent chromium and reducing valuable metals into recyclable alloys.
3. Metal Separation & Collection Equipment: After reduction, it separates the molten alloy (chromium-iron alloy) from the detoxified slag through sedimentation or magnetic separation, and collects the alloy for reuse in steelmaking or other industries.

Key Functional Characteristics

• High-Temperature Resistance & Corrosion Resistance: The inner lining of the reduction furnace uses high-grade refractory materials (e.g., magnesia-alumina bricks) to withstand extreme high temperatures and resist corrosion from acidic/alkaline components in the slag.
• Efficient Detoxification & Resource Recovery: Through precise control of temperature and reaction time, it achieves over 99% detoxification rate of hexavalent chromium and recovers 80–90% of valuable metals, balancing environmental benefits and economic benefits.
• Environmental Protection Configuration: Equipped with flue gas purification systems (e.g., dust collectors, desulfurization devices) and toxic gas monitoring sensors to prevent secondary pollution during the treatment process.

Typical Application Scenarios

• Chromium Salt Production Enterprises: Treats self-generated chromium salt slag on-site, solving the problem of hazardous waste storage and reducing environmental pressure.
• Hazardous Waste Treatment Centers: Accepts chromium salt slag from multiple enterprises for centralized treatment, realizing large-scale and standardized resource utilization of cross-regional waste.
