TOP2 Nickel Cobalt Lithium Recovery Fire Smelting Equipment For Solid Waste Utilization

Place of Origin Shaanxi, China
Brand Name Shaanxi Chengda
Certification ISO9001
Model Number Nickel cobalt lithium recovery fire smelting equipment
Minimum Order Quantity 1set
Price The price and specifications can be agreed upon.
Delivery Time 10-15work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 2set per set

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Core Component Shelf Life 1year Country Of Origin Shaanxi, China
Mold Nickel Cobalt Lithium Recovery Fire Smelting Equipment Types New
Highlight

Nickel Cobalt Lithium Recovery smelting machine

,

Solid Waste Utilization smelting machine

,

Solid Waste Utilization smelting equipment

Leave a Message
Product Description

Nickel cobalt lithium recovery fire smelting equipment



Process specification:
  Description: The nickel cobalt matte produced by the vulcanized electric furnace flows through the chute into the ladle, the ladle is moved to the LF refining position under the ladle car, and the refining begins.


productive technology:

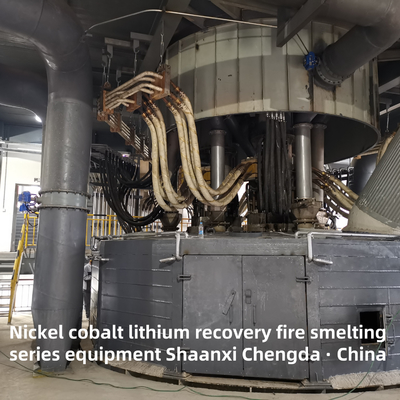

TOP2 Nickel Cobalt Lithium Recovery Fire Smelting Equipment For Solid Waste Utilization 0



Mechanical equipment summary:

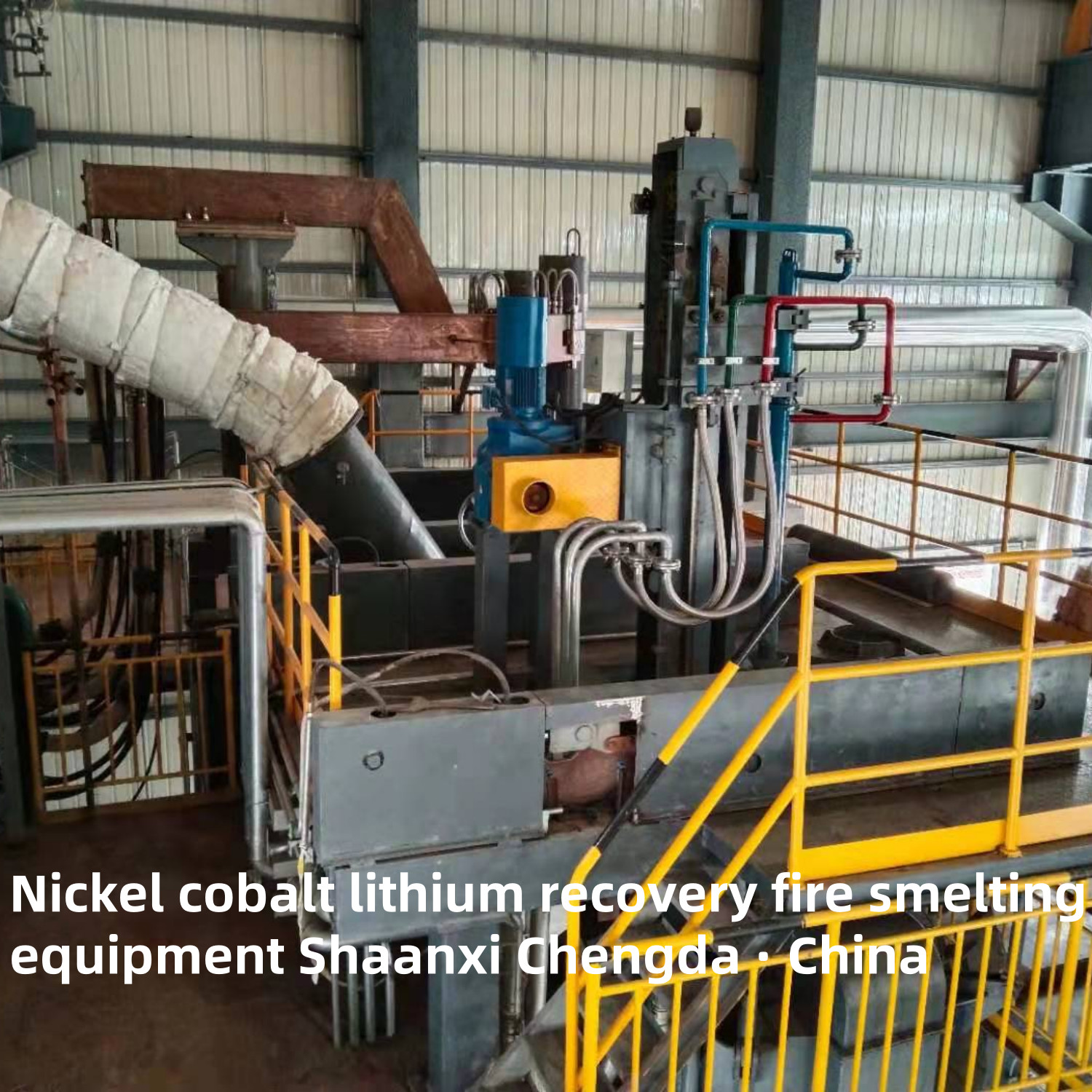

  The mechanical equipment consists of ladle and ladle car, electrode lifting device, water-cooled furnace cover and lifting mechanism, hydraulic system, nitrogen system, water cooling system, oxygen system, lubrication system and electrode lengthening station.



The structure of the equipment:

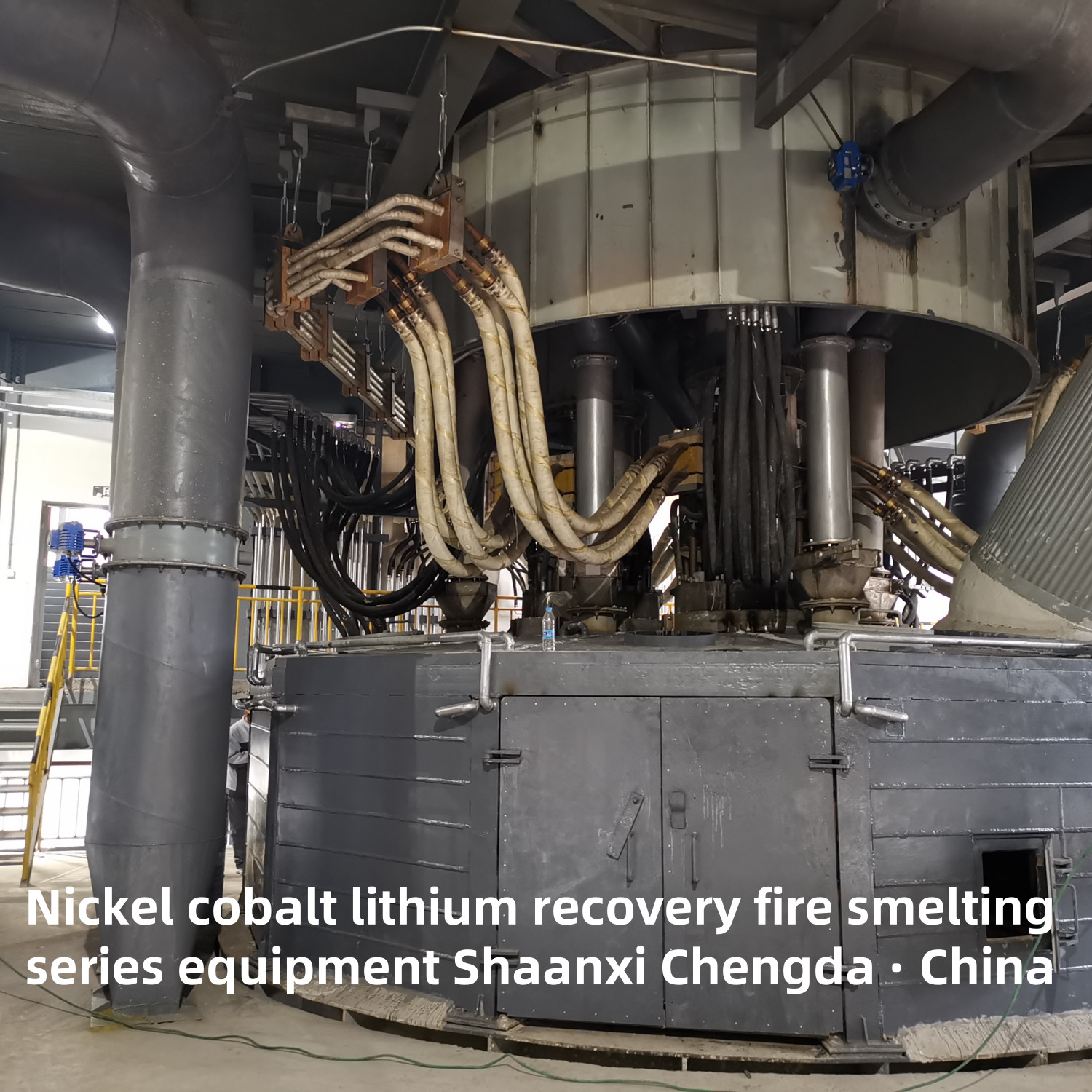

1) 3000kVA vulcanization furnace adopts the semi-closed fixed furnace type with low smoke hood;
2) The use of all water-cooled bellows pressure ring, so that the copper tile force uniform, balanced and uniform conduction;
3) The use of new water-cooled cable technology and forged copper shingles, water-cooled cable and copper pipe connection selection of button-type connection, which can reduce the contact resistance;
4) The new short network structure of one to one between the transformer outlet and the copper tile makes the equipment more advanced and the operation rate is high;
5) The short-net design uses the three-phase electrode triangle connection method, which has good short-net compensation, low impedance, low three-phase unbalance coefficient, high power factor and significant power-saving effect;
6) Full hydraulic lock, PLC control, to achieve voltage discharge, improve the operation rate of the electrode system;
7) The high-current current-carrying conductor is made of non-magnetic steel, which can greatly reduce the power loss;
