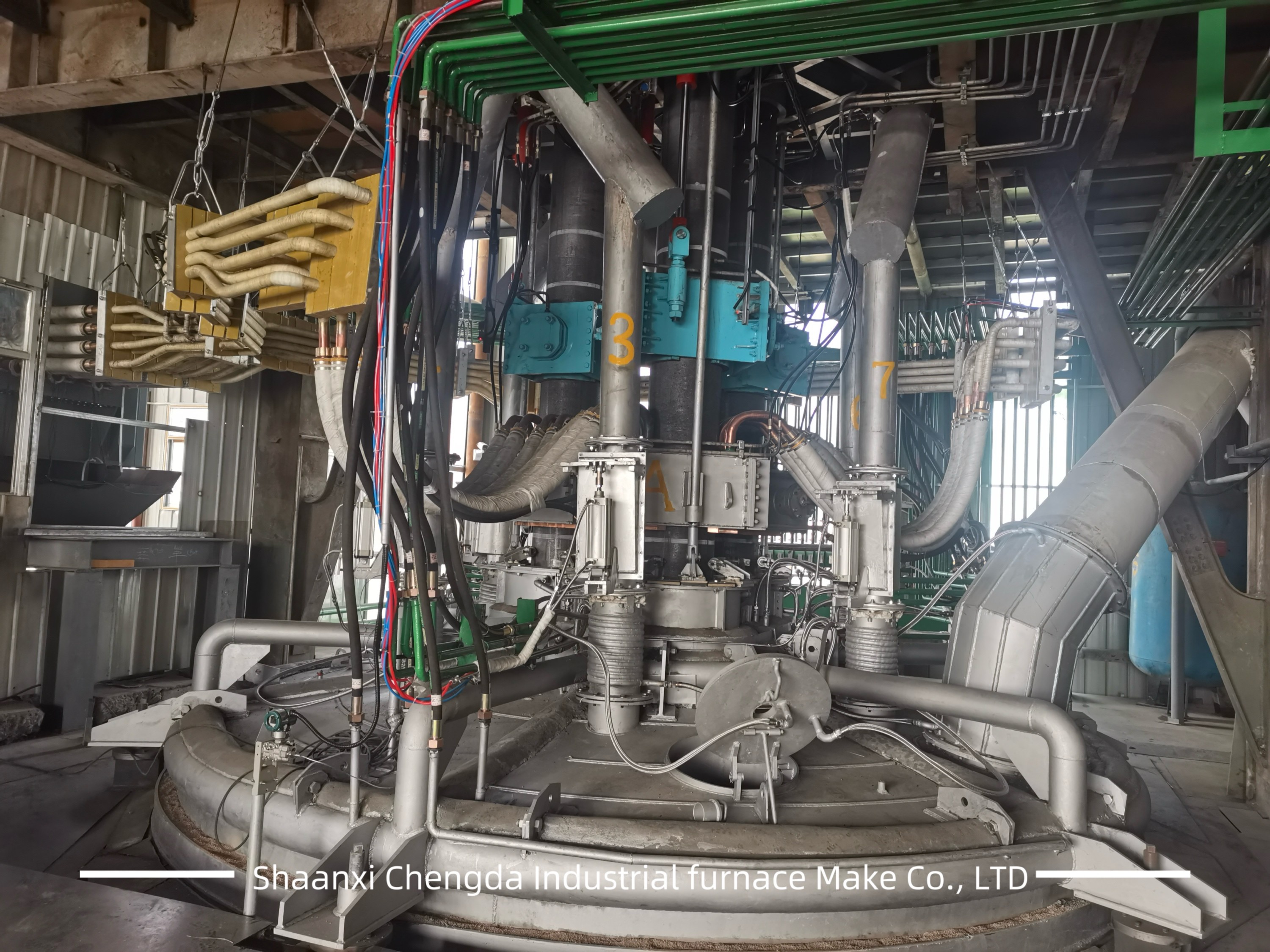

Rock Wool Electric Furnace With Efficiency Smelting 8-10t/h

  • Rock Wool Electric Furnace With Efficiency Smelting 8-10t/h
  • Rock Wool Electric Furnace With Efficiency Smelting 8-10t/h
  • Rock Wool Electric Furnace With Efficiency Smelting 8-10t/h
  • Rock Wool Electric Furnace With Efficiency Smelting 8-10t/h
Place of Origin China
Brand Name Shaanxi Chengda
Certification ISO9001
Model Number Negotiate based on equipment processing capacity
Minimum Order Quantity 1set
Price The price will be negotiated based on the technical requirements and supply scope of Party A
Packaging Details Discuss according to the specific requirements of Party A
Delivery Time 3 months
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability Complete production supply chain, supply on time, and meet quality standards
Product Details
Smelting Type Rock Wool Electric Furnace Capacity 8-10t/h
Power Consumption 1200 ° Annual Working Days 330
Warranty Of Core Components 1 Year Type Rock Wool Electric Furnace
Highlight

Automatic Rock Wool Electric Furnace
Leave a Message
Product Description

This equipment is used to melt the basalt rock and auxiliary materials for the production of rock wool, after heating and holding, by controlling the temperature and flow of the slurry transported to the centrifuge, the production of rock wool products.


Electric furnace equipment composition:

1. Raw material drying system.

2. Automatic feeding system.

3. Automatic blanking system.

4. Electric furnace body melting system.

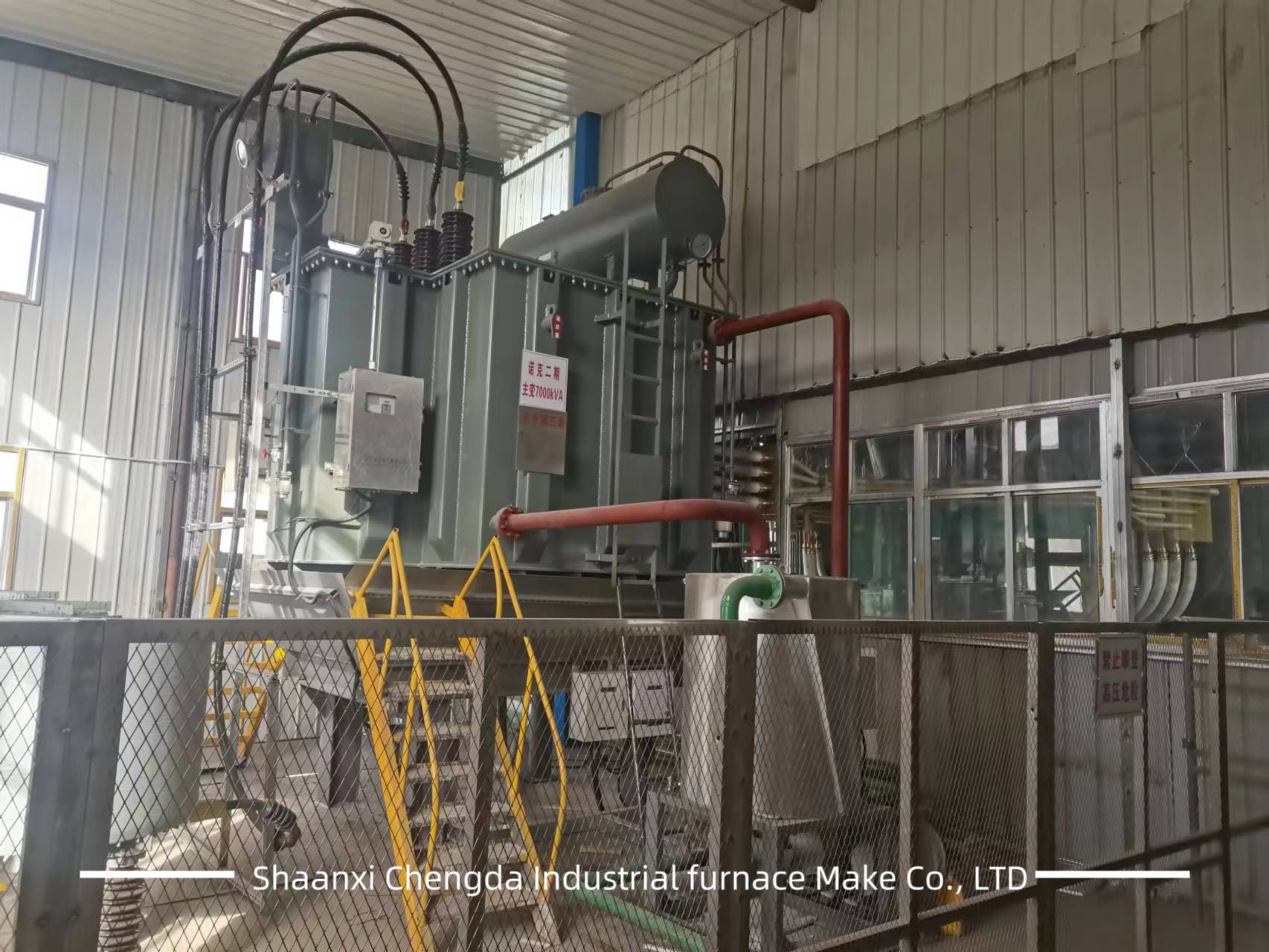

5. Electric furnace power supply high voltage system.

6. Automatic control operating system.

7. Grouting port control device.

8. Circulating cooling water system.

9. Electric furnace hydraulic system.

10. Electric furnace insulation material.

11. Electric furnace environmental dust removal system.





Cold slag rock wool electric furnace mineral wool insulation flow chart:



Rock Wool Electric Furnace With Efficiency Smelting 8-10t/h 0


Advantages of DC electric furnace treatment of solid waste :

1. Dc arc heat concentration is fast and effective, suitable for high melting point products smelting;

2. The electrode lifting control adopts PLC frequency conversion control to achieve double closed-loop control of current and voltage;

3. Dc arc furnace natural power factor is high, without compensation, the power factor can reach 0.9 or more;

4. The electrode consumption is 30%-50% of the AC electric furnace, and has low flicker effect and noise;

5. Multi-electrode power supply. It can effectively solve the problem of non-conductive charge.


Rock Wool Electric Furnace

A rock wool electric furnace is core thermal equipment for the rock wool production line, dedicated to melting natural raw materials (such as basalt, diabase, and blast furnace slag) into molten magma at high temperatures, which is then processed into rock wool products with thermal insulation, fireproof, and sound-absorbing properties.

Core Classification & Working Principles

Rock wool electric furnaces are mainly divided into two types according to the heating method, both relying on electrical energy to achieve high-temperature melting:
  1. Electrode Type Rock Wool Electric Furnace

    This is the most widely used model in industry. It uses graphite or self-baking electrodes to insert into the raw material layer. After energization, the high-resistance raw materials generate Joule heat through the electrode current, gradually heating the materials from the inside out to 1450–1600℃ until they melt into a uniform magma. The furnace adopts a closed or semi-closed structure to reduce heat loss, and the molten magma is discharged through a tapping port at the bottom of the furnace.
  2. Induction Type Rock Wool Electric Furnace

    It uses electromagnetic induction principle: the alternating current passing through the induction coil generates a changing magnetic field, which induces eddy currents in the conductive raw materials, and the eddy current thermal effect realizes material melting. This type has fast heating speed and uniform temperature distribution but is suitable for small and medium-sized production lines due to higher equipment costs.

Structural Characteristics

Component Material & Function
Furnace Lining High-aluminum refractory bricks or corundum-mullite castables; resistant to high-temperature erosion from molten magma and thermal shock, ensuring long-term stable operation of the furnace body.
Electrode System (for electrode type) Graphite electrodes with high temperature resistance and conductivity; equipped with an automatic lifting device to adjust the electrode insertion depth in real time according to the melting state, ensuring stable current and heating efficiency.
Furnace Shell Steel plate welding structure; with external thermal insulation layer to reduce heat dissipation and avoid high-temperature damage to the shell.
Tapping System Tapping port with refractory material lining; matched with a flow control valve to adjust the magma discharge speed, adapting to the production rhythm of the subsequent fiber forming process.
Cooling System Water-cooled structure for electrodes and furnace body key parts; controls the temperature of electrodes and furnace shell within a safe range to prevent overheating deformation.

Performance Advantages

  • Environmental Protection & Low Carbon: Uses clean electrical energy as the heat source, without burning fossil fuels, which fundamentally reduces emissions of sulfur dioxide, nitrogen oxides, and dust, meeting green production standards.
  • Stable Melting Quality: Precise temperature control (±10℃) ensures uniform magma composition and stable viscosity, laying a foundation for high-quality rock wool fiber formation.
  • Flexible Raw Material Adaptability: Can melt a variety of raw materials such as basalt, slag, and dolomite, and adjust the raw material ratio according to product requirements to produce rock wool with different performance indicators.
  • High Energy Efficiency: The closed structure and optimized heating mode reduce heat loss, with energy utilization rate 15–20% higher than that of traditional fuel melting furnaces.

Typical Technical Parameters (10,000-ton/year rock wool production line matching furnace)

Parameter Category Specific Index
Rated Power 2500–3500 KVA
Input Voltage 10 KV
Melting Temperature 1500–1550℃
Raw Material Processing Capacity 3–5 t/h
Power Consumption per Ton of Rock Wool 380–450 kWh
Furnace Body Inner Diameter Φ3800–Φ4500 mm
Electrode Diameter Φ300–Φ400 mm
Cooling Water Consumption 80–120 m³/h
